MPO fiber cable assembly is designed for efficient connectivity within data centers and communication devices. This particular assembly features a 3.0mm jacket cable with MPO female connectors on both ends, ensuring robust and reliable connections.

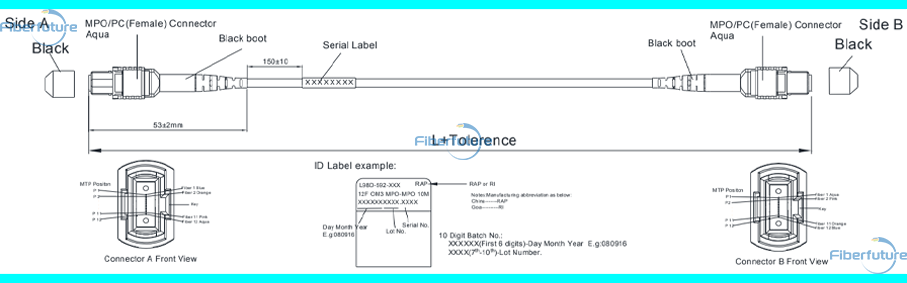

Connector A: MPO (Female) – Nokia code: P463133, multimode
Connector B: MPO (Female) – Nokia code: P463133, multimode

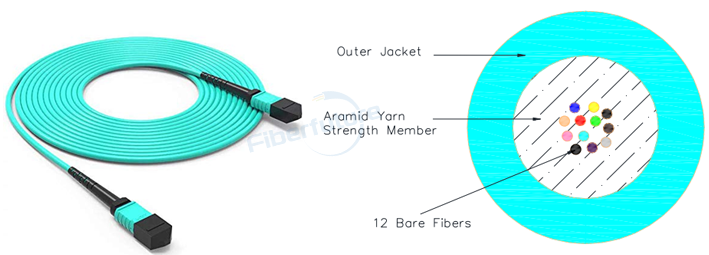

Cable: 3.0mm diameter, Aqua colored, LSZH (Low Smoke Zero Halogen) jacket
Outer Jacket Diameter: 3.0 ± 0.2mm
Outer Jacket Color: Aqua
Strength Member: Aramid yarn
Fiber Diameter: 0.25mm
Fiber Colors: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua (for fibers 1 through 12)
The MPO fiber patch cord is an essential component for establishing high-speed data communication networks. The use of multimode fibers makes this assembly particularly suitable for short-distance, high-bandwidth applications, such as those found in data centers and local area networks.
The assembly's LSZH jacket ensures that it meets stringent safety standards, providing low smoke emission and zero halogen content in the event of fire, thereby minimizing health hazards and damage to equipment. The inclusion of aramid yarn as the strength member guarantees the cable's durability and resistance to external forces, making it suitable for installation in various environments.
The aqua outer jacket not only adds aesthetic appeal but also aids in easy identification within complex cabling systems. The MPO female connectors on both ends facilitate quick and secure connections, supporting the rapid deployment of network infrastructures.
The distinct color-coding of the individual fibers from blue to aqua allows for easy organization and troubleshooting, enhancing the overall efficiency of network management.
| Mechanical Data | Specifications |
| Connector Mating Durability | 50 Cycles |
| Connector Tensile Pull Test | 70N/120s |
| Minimum Bending Radius (According to IEC 60794-1-2) | Installation, 60mm |
| Operation, 30mm | |
| Min Tensile Strength (Short Term) (According to IEC 60794-1-2 E1) | 150N |
| Min Tensile Strength (Long Term) (According to IEC 60794-1-2 E1) | 80N |
| Min Crush Resistance (Short Term) (According to IEC 60794-1-2 E3) | 500N/10cm |
| Min Crush Resistance (Long Term) (According to IEC 60794-1-2 E3) | 100N/10cm |
| Temperature Range Operation | -5°C to +80 °C |
| Temperature Range Storage | -5°C to +80 °C |
| Temperature Range Installation | 0 °C to +50 °C |
| 2011/65/EC (RoHS) | Compliant |
| Packing L≤100 | 1pc in a Bag |
| Packing L>100 | 1pc on a Drum |
In summary, the MPO fiber patch cable MPO(F)-12FOM3-MPO(F)-3.0mm-LSZH is a comprehensive solution for data center and communication device connectivity, combining reliability, safety, and ease of use in a single package.
