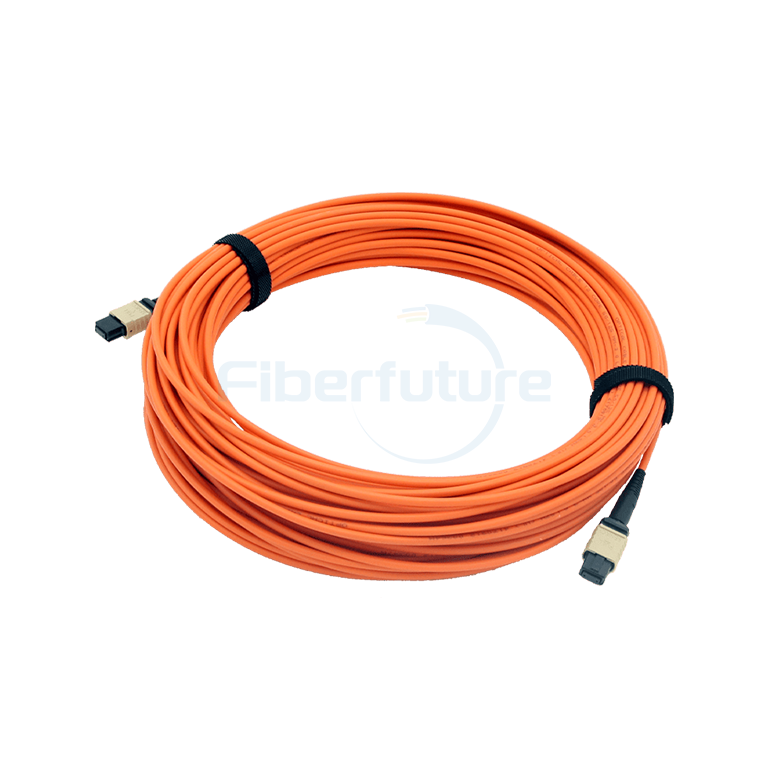

FIBERFUTURE MPO–MPO 3.0mm LSZH patch/trunk cable connects MPO modules as a permanent link, supporting 12, 24, 48, 60, 72, 96, and 144 fibers for speeds up to 10/40/100Gbps. Ideal for data centers, it interconnects cassettes, panels, and MPO fan-outs, facilitating rapid deployment and high-density backbone cabling. Offers flexibility by allowing easy connector style changes via patch panels.
| Connector | Reference | Housing Details |

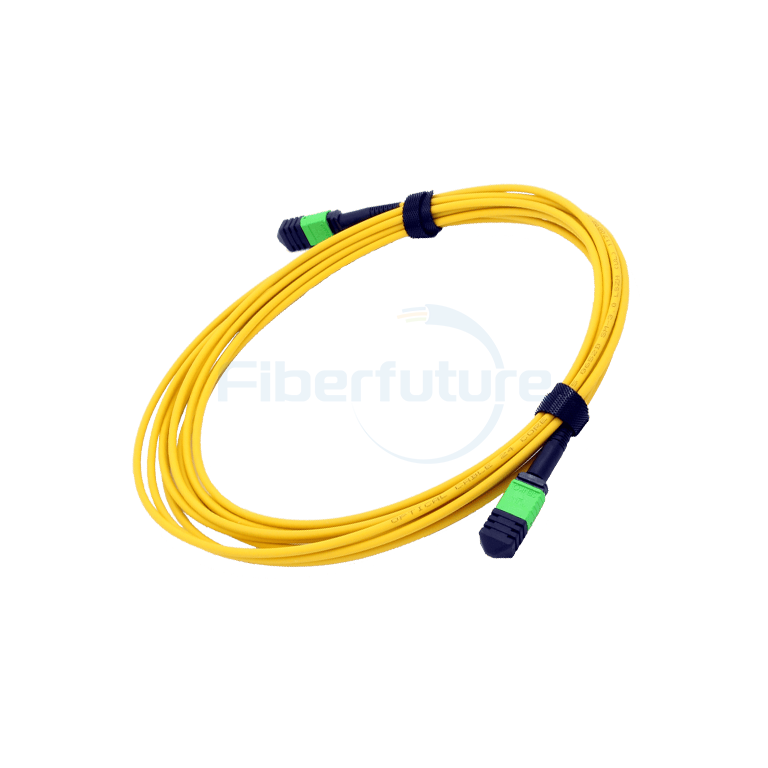

| MPO Singlemode | IEC 61754-7 | SM APC: Green Connectors+Black Boot (Standard Loss MPO)
SM APC: Yellow Connectors+Black Boot (Super Low Loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1 & OM2 PC: Beige Connectors+Black Boot (Standard Loss MPO)

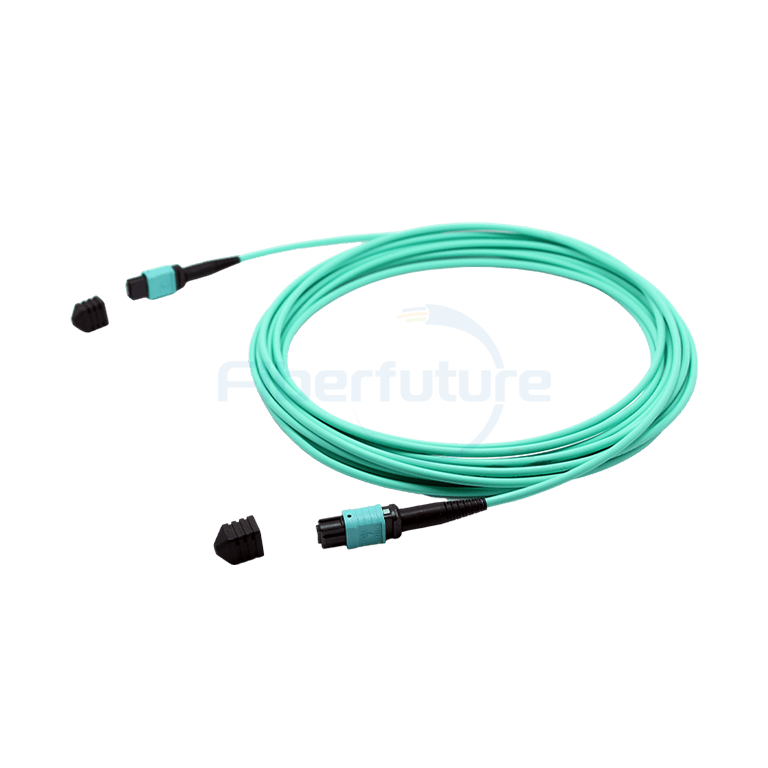

OM3 & OM4 PC: Aqua Connectors+black Boot (Standard & Super low Loss MPO) OM3 & OM4 PC: Heather Violet Connectors+Black Boot (Standard Loss MPO) |
IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
| Spec Items. | Single Mode (APC 8-degree Polished) | Multimode (PC Flat Polish) |
| Insertion Loss (MPO) (IEC 61300-3-34) | Standard Loss: ≤0.75dB (max), ≤0.50dB (Typical)
Super Low Loss: ≤0.35dB (max), ≤0.20dB (Typical) |
Standard Loss: ≤0.6dB(max), ≤0.50 (Typical)
Super Low Loss: ≤0.35dB(max), ≤0.20dB (Typical) |
| Return Loss(MPO) | ≥60dB (8-degree Polishing） | ≥25dB |
| Durability | <0.3dB Typical Change, 200 Matings | |
| Interchangeability | ≤0.2dB | |
| Tensile Strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
| Fiber Count | OD (mm) |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
| 12 | 3.0±0.15 | Short-Term: 180; Long-Term: 90 | Short-Term: 500; Long-Term: 150 | Static: 10D; Dynamic: 20D |
