Key Differences Between Fiber Terminal Box and Fiber Distribution Box

Introduction of Fiber Terminal Box

A fiber terminal box, often referred to as an optical fiber terminal box or ODF (Optical Distribution Frame), is primarily designed for the termination of fiber optic cables. It serves as the final point where incoming fibers from outside the building are connected to patch cords or jumper cables that then link to various devices within the facility.

The main functions and features include:

Termination: Provides a secure and organized method to terminate and manage fiber optic cables.
Protection: Offers protection against environmental factors and mechanical damage to the fiber connections.
Splicing: Supports splicing activities by providing space for splices and ensuring they are protected.
Management: Facilitates easy management and routing of fibers with built-in cable management systems.

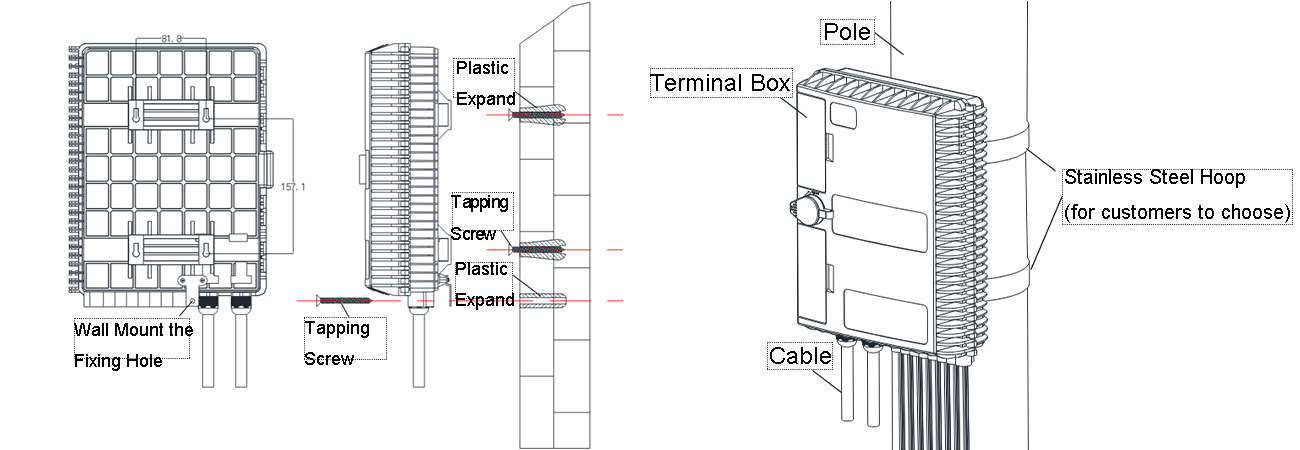

Adaptability: Can be wall-mounted or rack-mounted depending on the installation requirements and available space.

Understand Fiber Distribution Box

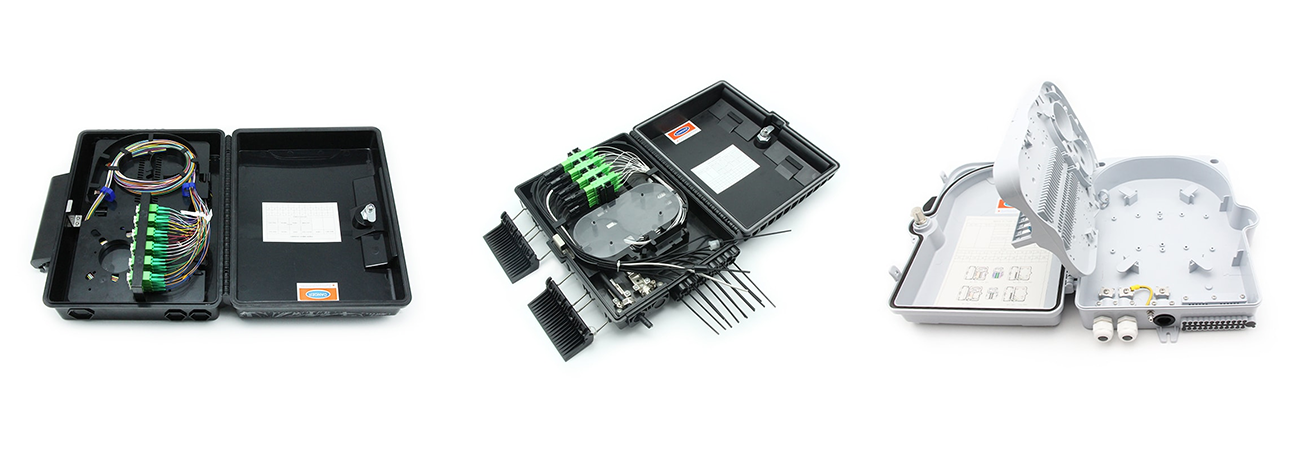

On the other hand, a fiber distribution box, also known as a fiber optic distribution box or FDB, is used in the distribution stage of fiber optic networks. It is typically installed at points where multiple fibers need to be split and distributed to different destinations.

Key aspects include:

Distribution: Enables the branching of fiber optic cables to multiple users or locations.
Modularity: Features modular design elements such as adapter panels and splice trays for flexible configuration.
Scalability: Designed to accommodate future growth by allowing the addition of more fibers and ports.
Connectivity: Offers a wide range of connectivity options, including SC, LC, FC, and others, to support different network requirements.
Location: Often placed in strategic locations like MDFs (Main Distribution Frames) or IDF (Intermediate Distribution Frames) to facilitate efficient distribution of signals throughout the building or campus network.
These two types of boxes serve distinct purposes in fiber optic network infrastructure, with the terminal box focusing on the termination of incoming fibers and the distribution box enabling the branching and distribution of fibers to various parts of the network.
