Fiber loopback is a diagnostic technique used to verify the integrity of a fiber optic link or channel. The basic concept involves sending a signal out over a fiber link and then immediately looping it back to the sender, thus allowing for a check on the quality and performance of the connection without requiring a separate receiver. This process can be useful for troubleshooting issues such as signal loss, latency problems, or other transmission errors.

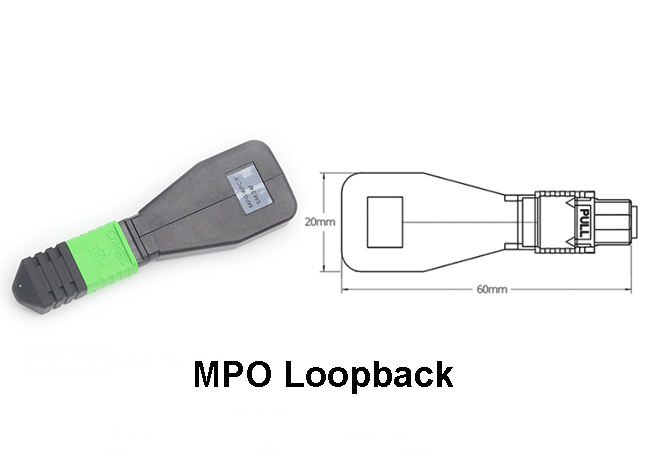

Multi-Fiber Push On (MPO) connectors are widely used in high-density applications such as data centers due to their ability to accommodate multiple fibers in a single connector. MPO loopback is a specific type of loopback test that uses these connectors. In an MPO loopback scenario, a specialized adapter or cable is used to connect the fibers within the MPO connector, effectively creating a closed loop where any signal sent out returns immediately to the source.
The primary advantage of using them is their ability to test multiple fibers simultaneously, which greatly reduces the time needed for testing and can help identify issues with individual fibers within a large bundle. This makes them ideal for high-density environments where quick and efficient testing is crucial.

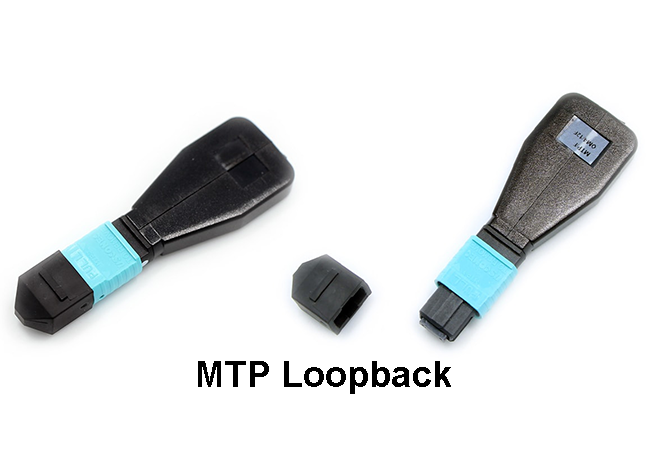

While MPO and MTP (Multi-Tack Push On) connectors are often used interchangeably, MTP connectors are a registered trademark of US Conec Ltd and are designed specifically for high-performance, high-density optical connectivity solutions. MTP loopbacks operate similarly to MPO loopbacks but are typically associated with higher performance and more precise alignment mechanisms.
An MTP loopback setup involves connecting all fibers within the connector using a specialized loopback device or cable. Like with MPO types, the goal is to ensure that each fiber is transmitting properly and that there are no interruptions in the signal path. However, MTP connectors may offer additional features such as improved mechanical stability and tighter tolerances, which can result in more reliable connections and potentially more accurate testing results.
Conclusion
Fiber loopback test is an essential tool for anyone working with fiber optic networks. Whether using MPO or MTP connectors, implementing a loopback test can help identify potential issues early on and ensure that your fiber infrastructure is operating at peak efficiency. FIBERFUTURE offers MPO/MTP optical loopback in 8, 12, 24 fibers.
