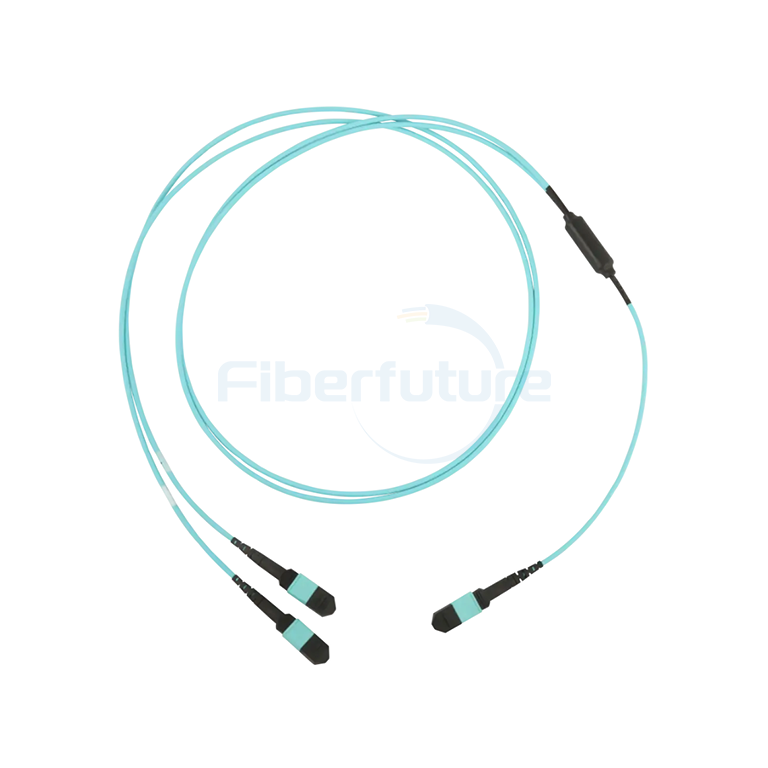

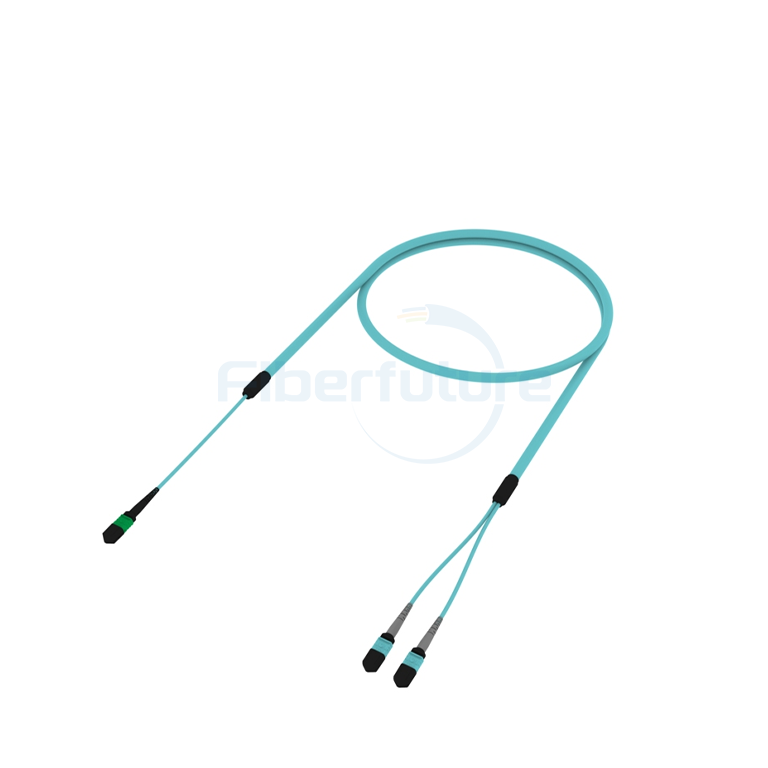

Y Model MPO/MTP Trunk Cable Supports 40G and 100G Network

FIBERFUTURE MPO/MTP trunk y cable is a high-performance fiber optic cabling solution designed for high-density environments in data centers. It provides branch connections, ensures high-speed data transmission, simplifies network architecture, is easy to install and maintain, and supports multi-channel parallel communication.

Send Email

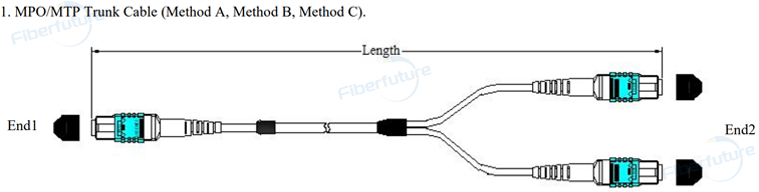

Dimensional Diagram

Y Model MPO/MTP Trunk Cable Supports 40G and 100G Network

Applications

Data networks.
Optical access systems.
SAN & Fiber channel.
High-density architectures.

Features

Factory-tested for performance.
Speeds up installation.
40G/100G network ready.
Safety-compliant jacket materials.
Supports from 12F up to 144F, custom sizes.

Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB (PC)	IEC61300-3-6

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Min. Allowable Tensile Strength (N)		Min. Allowable Crush Resistance (N/100mm)		Min.Bending Radius (mm)		Storage Temperature（℃）
			Short-term	Long-term	Short-term	Long-term	Dynamic	Static
24	4.5±0.2	32	560	250	750	300	20D	10D	-20~~+70
