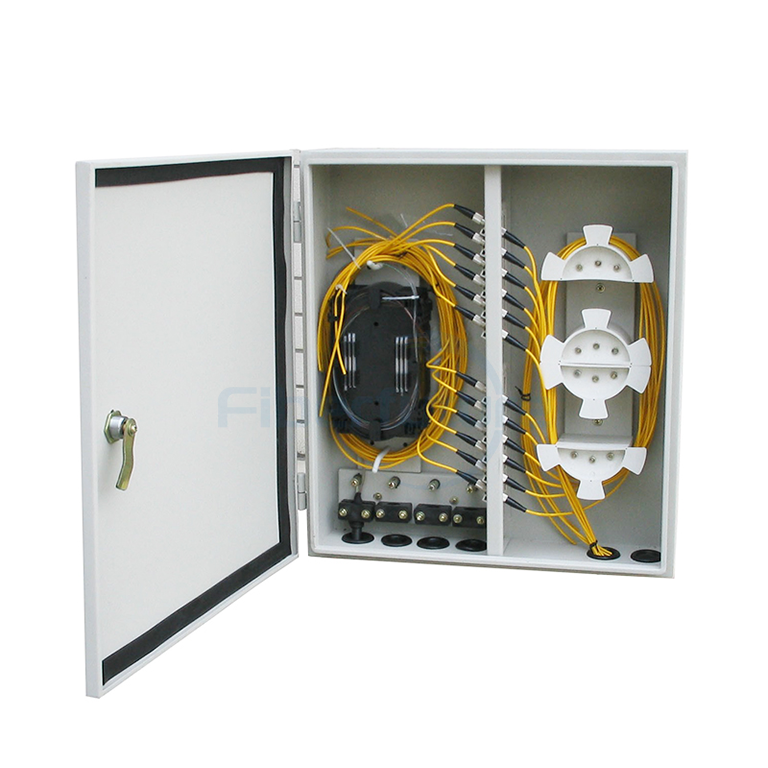

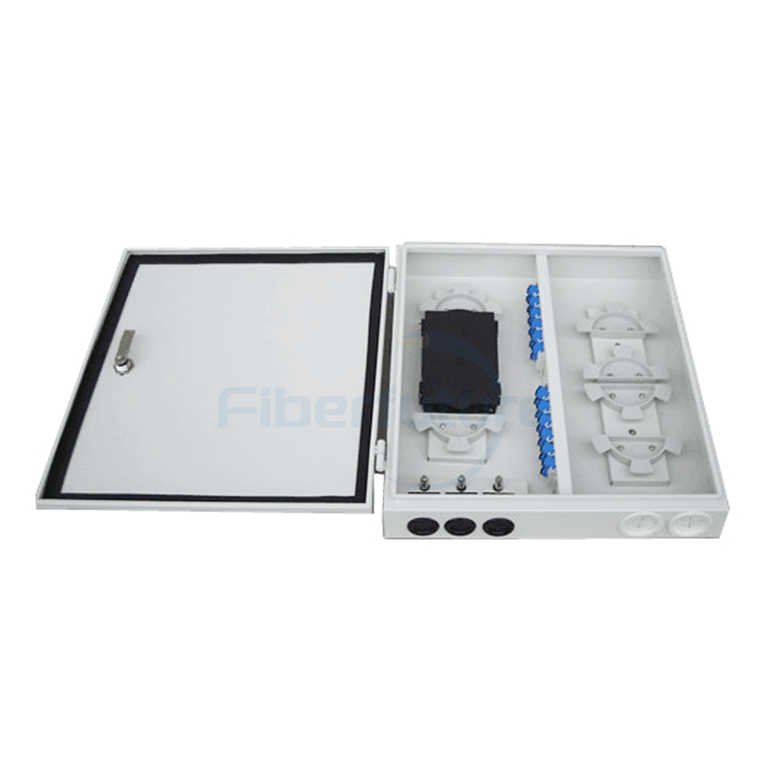

Waterproof Outdoor Fiber Cabinet 24, 48, 72, 96 Ports

FIBERFUTURE waterproof outdoor fiber cabinet is designed for robust outdoor fiber optic cable management. Available in 24, 48, 72, and 96 port configurations, it ensures secure, weather-resistant housing for your network. Constructed with durable materials, it withstands harsh conditions while providing easy access for maintenance.


Features

  • Suitable for small capacity systems, wall-mountable, compact design.
  • Two-part construction: cable fusion and patch cord connectivity.
  • Provides cable fusion, storage, and secure protection for fixing, stripping, and grounding.
  • Robust protection for cable management.
  • Ensures a minimum bend radius of 40mm for fibers.
  • Offers protective accessories to prevent fiber damage.
  • Made from cold-rolled steel, electrostatically sprayed for durability.
  • Compact, organized layout for easy operation and maintenance.
  • Adapter panels available for FC, SC, and ST connectors.

Applications

  • FTTX Projects
  • ODN Systems
  • Data Centers
  • PON Systems

Technical Parameters

Fiber curvature radius ≥ 40mm

Additional loss ≤ 0.01dB

Fiber retention length ≥ 1.6m

Operating temperature: -400C ~ +700C

Lateral pressure resistance: ≥ 2000N/10cm

Impact resistance: ≥ 20N.m

Specifications

Part No. Dimension (mm) Material Max Capacity Qty/Carton Carton Size (mm)
24 Ports 455*405*80 Cold rolled steel sheet 24/48 5pcs/Carton 405*335*605
48 Ports 455*405*120 Cold rolled steel sheet 48/96 4pcs/Carton 500*450*490
72 Ports 455*405*150 Cold rolled steel sheet 72/144 3pcs/Carton 500*450*490
96 Ports 455*405*185 Cold rolled steel sheet 96/192 2pcs/Carton 500*450*490
