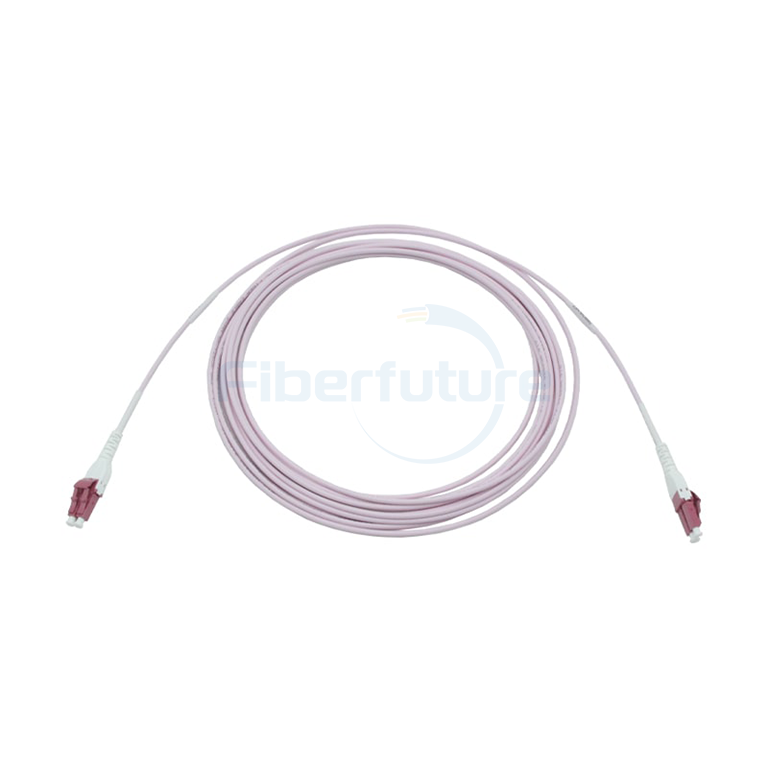

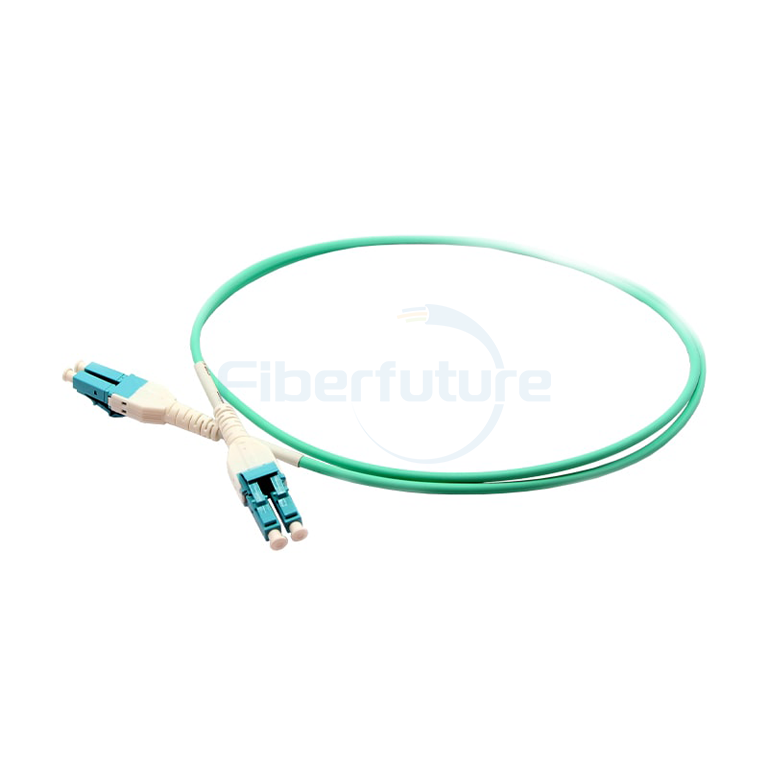

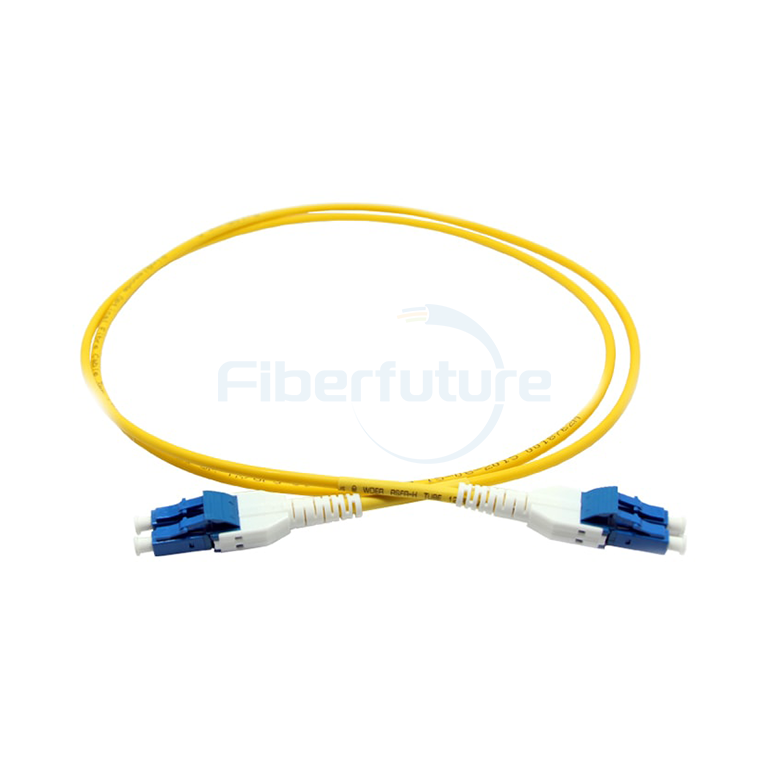

FIBERFUTURE uniboot LC-LC duplex 3.0mm fiber patch cable uses a specialized "round duplex" design, enabling dual-channel transmission in a single cable. This design minimizes space compared to traditional cables, making it ideal for high-density, high-speed networking environments where efficient cable management is crucial.
| Fiber Connector | Uniboot LC to Uniboot LC | Fiber Type | 9/125μm
50/125μm 62.5/125μm |
| Cable Jacket | 2.0mm/3.0mm PVC/LSZH | Fiber Counts | 2 Fibers |
| Insertion Loss | ≤0.3dB (IEC Grade C)
≤0.12dB (IEC Grade B) |
Return Loss | SM UPC ≥ 50dB (min)
SM APC ≥ 60dB (min) MM PC ≥ 35dB (min) |
| Pull-out Force | 100N | Durability | 500 Cycles |
| AB Polarity Switchable | Available | Operating Temperature | -40 to + 85°C |

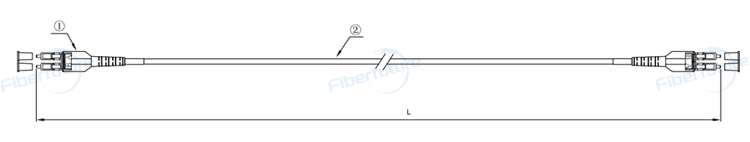

| Overall Length (L) (m) | Length of Tolerance (cm) |
| 0＜L＜1 | +5/-0 |
| 1＜L＜10 | +10/-0 |
| 10＜L＜40 | +15/-0 |
| 40＜L | +0.5%L/-0 |
