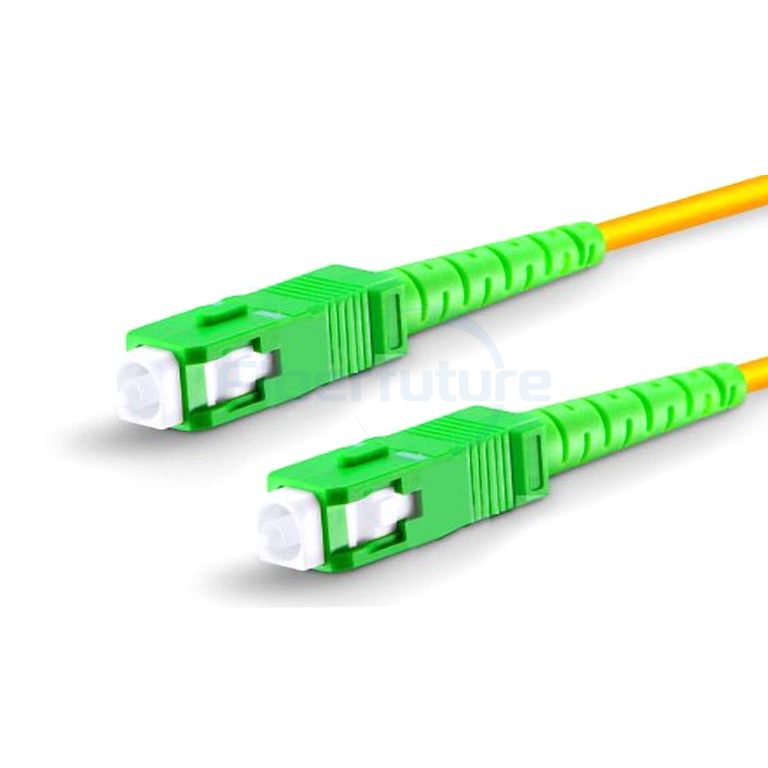

Telecommunications SC APC Patch Cable Simplex Duplex

FIBERFUTURE SC APC patch cords use angled polished connectors to significantly reduce reflections and optimize signal integrity. Single-mode fiber design ensures low-loss transmission and is suitable for data centers, local area networks, and telecommunication networks. Its sturdy structure and precise docking ensure stable and reliable high-performance connections.

Send Email

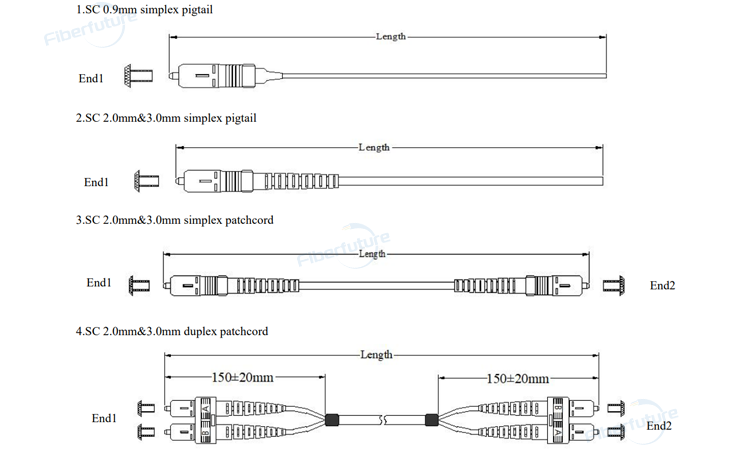

Dimensional Diagram

Telecommunications SC APC Patch Cable Simplex Duplex

Features

Engineering and integration of optical fiber communication systems.
Deployment of fiber optic networks for data communication.
Design and installation of fiber-based cable television (CATV) systems.
Testing and evaluation of advanced optical technologies.

Features

Offers a wide array of styles and a full suite of interface options.
Ensures minimal insertion loss and additional loss for superior signal integrity.
Achieves high levels of attenuation for effective signal control.
Features high return loss, compact size, and a lightweight profile.
Exceeds IEC and Telcordia standards for end-face geometry and quality.
Utilizes LSZH, OFNP, and OFNR cable jackets for safety and performance.
Adheres to IEC 61754-4 for mechanical robustness and reliability.
Complies with RoHS and REACH regulations for environmentally responsible materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
