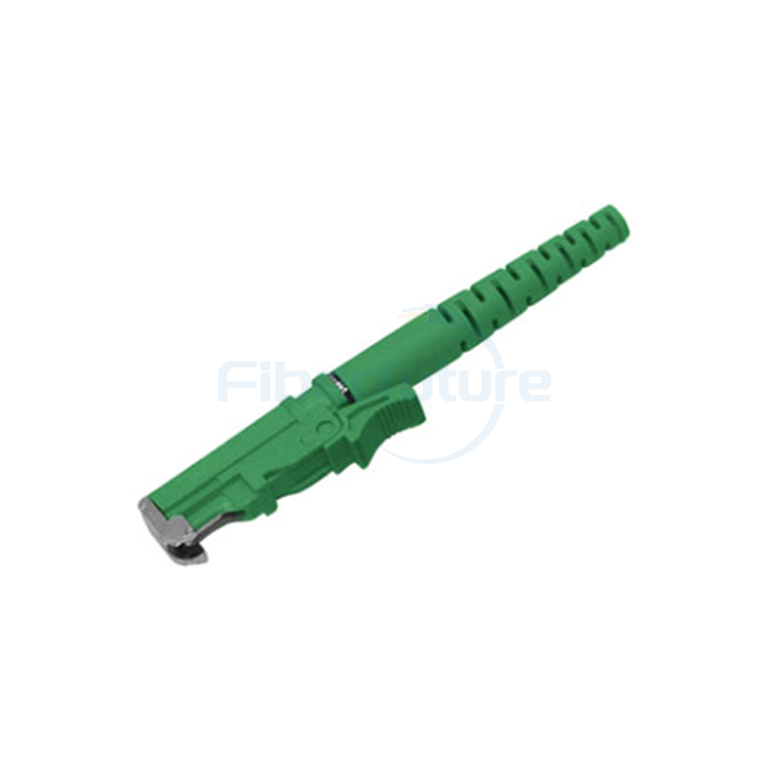

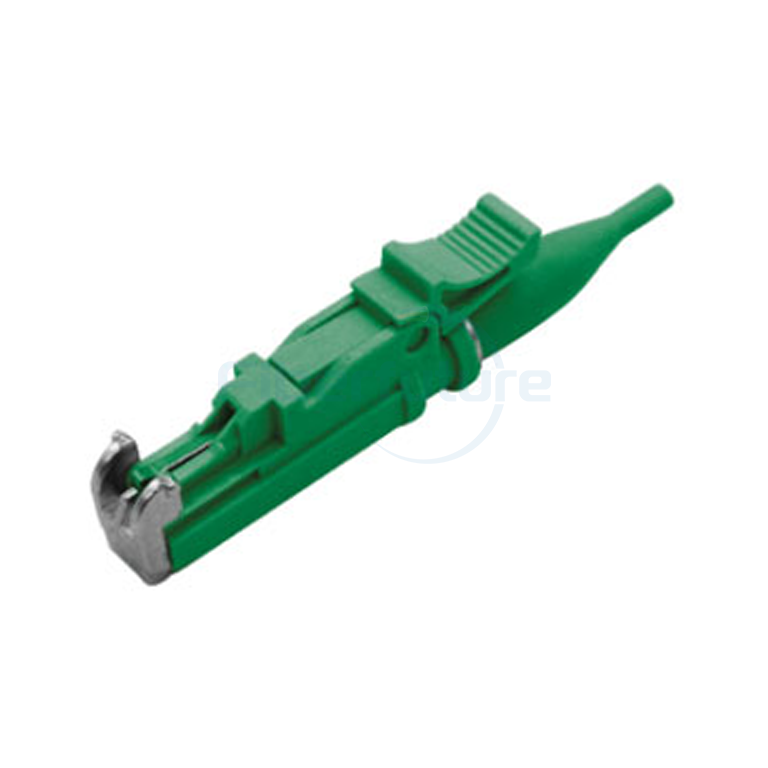

FIBERFUTURE E2000 optical fiber connector series stands out as a unique solution featuring a spring-assisted protective cap, ensuring zero wear and tear over time. Upon disconnection, the cap seals itself automatically, safeguarding the connector pin against dust contamination. This proactive defense mechanism prevents network disruptions caused by dirt and shields against potential laser damage, enhancing system reliability and longevity.
Telecom/CATV Systems
Local Area Networks (LANs)
Wide Area Networks (WANs)
Data Processing Networks
Active Device Termination
Locking push-pull connector design ensures safe and reliable connection.
The connector and adapter have built-in automatic shutter mechanism to effectively prevent dust and ensure laser safety.
Integrated structure simplifies the termination process and improves installation efficiency.
Especially suitable for high-power application scenarios and meet the needs of harsh environments.
Excellent optical performance, manifested in extremely low insertion loss and back reflection loss.
| Applicable connector type | E2000/APC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15, maximum≤0.30 |
| Return Loss | ≥60dB |
| Insert core diameter | ∮2.5mm |
| Insert core parameter | Aperture: 125.5+1/-0μm, Concentricity: ≤0.5μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm, ∮3.0mm |
| Working temperature | -20℃to+70℃ |
| Storage temperature | -40℃to+85℃ |
