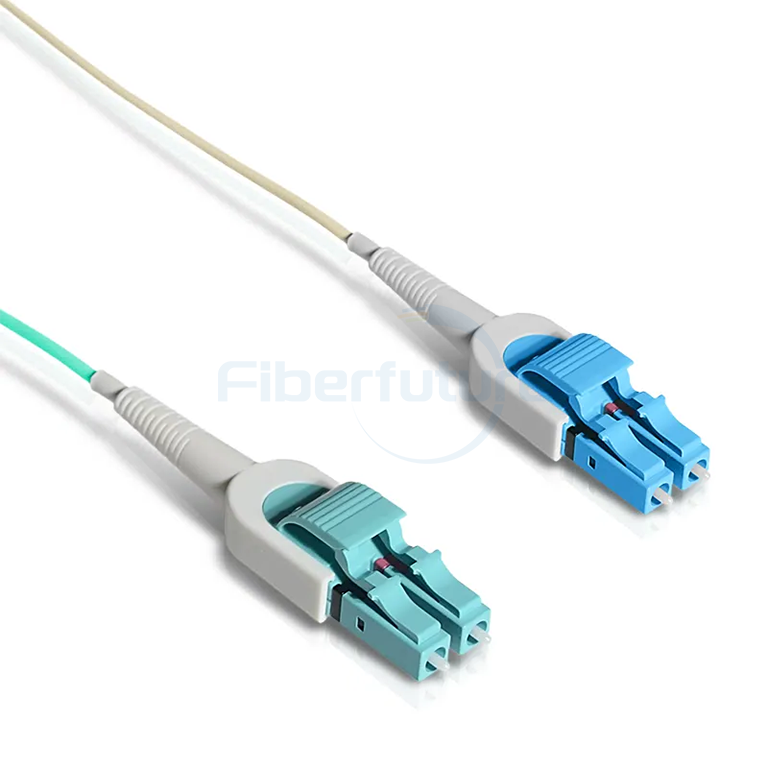

FIBERFUTURE switch polarity LC uniboot is a specialized fiber optic connector designed for seamless polarity management in high-density networking environments. It features a single-boot design that simplifies installation and reduces space requirements, making it ideal for data centers where polarization-sensitive applications require precise connection control.
1. Data Center Connectivity
2. Campus Network Infrastructure
3. Dense Deployment Environments
4. System Interlinking Solutions
5. Cabinet to Cabinet Bridging
1. Integrated Uniboot Design.
2. Polarity Flexibility.
3. Optimal Signal Integrity.
4. Precise Attenuation Control.
5. High Back Reflection Suppression.
6. Exceeding Industry Standards.
7. Safe and Diverse Jacket Options: Available in LSZH, OFNP, and OFNR materials for enhanced safety and environmental compatibility.
8. Robust Mechanical Durability: Complies with IEC 61754-20 standards, ensuring toughness and longevity.
9. Environmentally Conscious: Manufactured using RoHS and REACH compliant materials for responsible product stewardship.

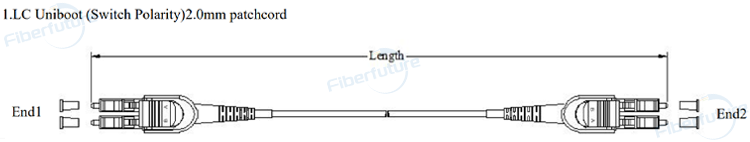

| Overall length (L) (M) | Length of tolerance (CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB; Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 50dB (UPC) | ≥30dB (UPC) | IEC 61300-3-6 |
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 2 | 2.0±0.15 | 6.8 | 150 | 80 | 500 | 150 | 20D | 10D |
