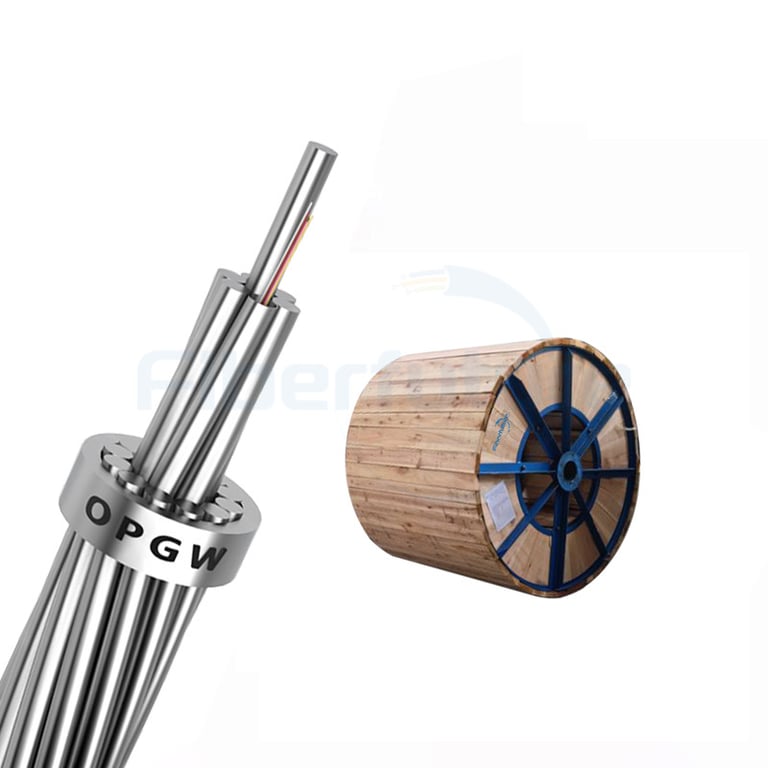

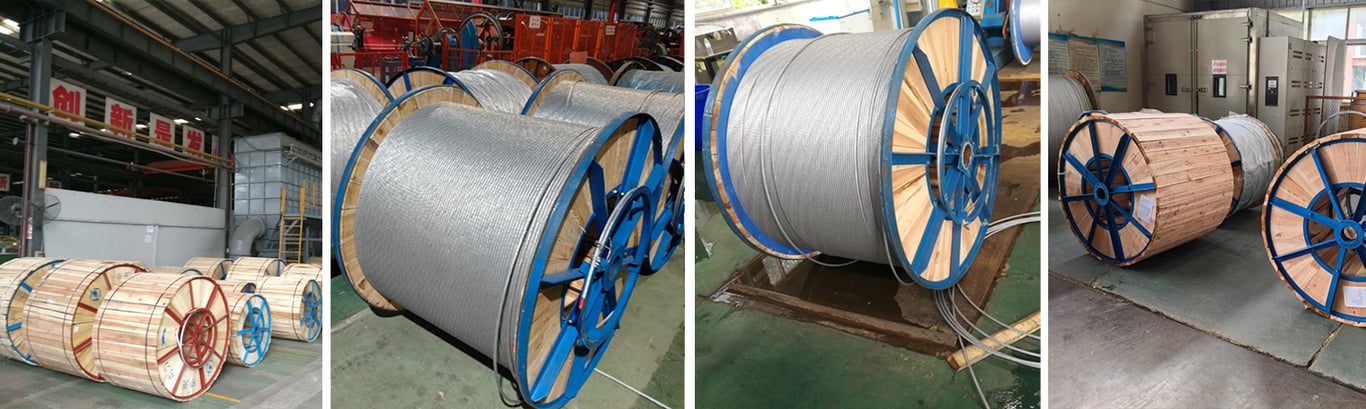

Stranded Type Stainless Steel Tube OPGW Cable

FIBERFUTURE® The Stranded Type Stainless Steel Tube OPGW Cable is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires, Its design is fully adapted to the most common electric line needs.

We customize 8, 12, 24, 48, 96, Up to 144 cores of OPGW optical cable. Meanwhile, the price of our OPGW fiber optic cable is competitive.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

The Details Of Stranded Type Stainless Steel Tube OPGW Cable

Type	Stranded Type Stainless Steel Tube OPGW Cable
Fiber Core	8/12/16/24/36/48/96/144

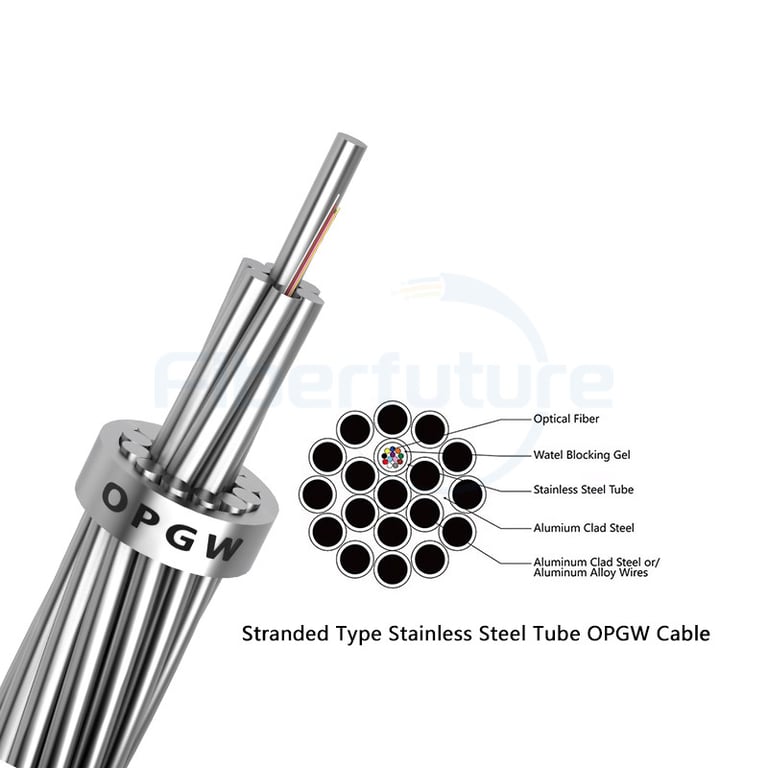

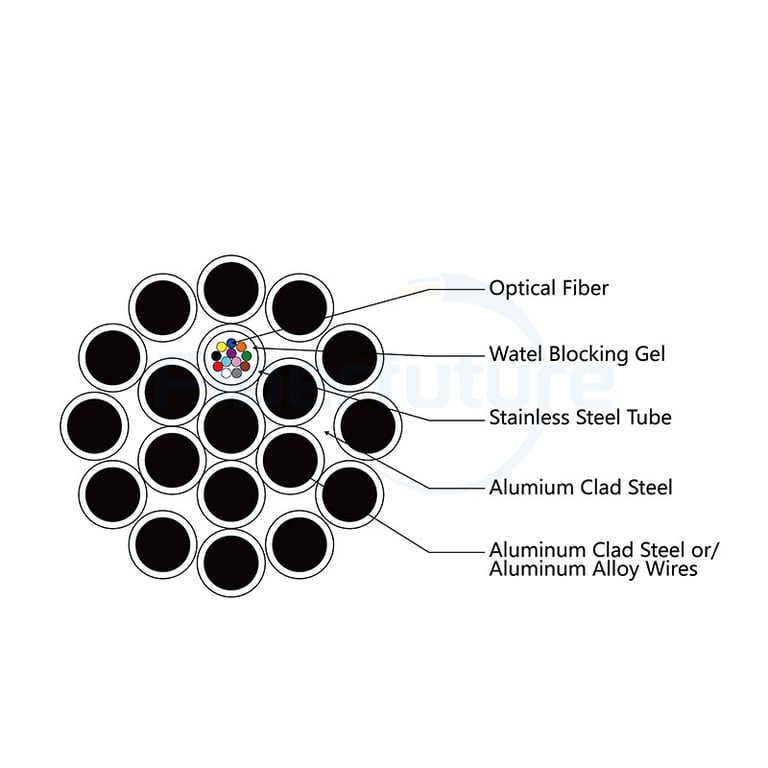

Structure	The stainless steel tube is hermetically sealed by seamless welding and is surrounded by single or double layers of metal wires. The tube is filled with water-resistant gel. This tube provides complete protection to the fibers from longitudinal and lateral water/moisture ingress. The interstices in between the stainless steel tube and the metal wires are filled with anticorrosive grease for protection from corrosion.
Application	Photovoltaic / wind power plant / transmission line / substation

Main Features

High quality standard for design, testing and producing with grade A material available to ensure long-term reliability.
Engineering support supervising and providing its own line of accessories hardware.
Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lighting.
To construct OPGW cable must cut power, resulting in greater loss, thus OPGW fiber cable must be used in constructing high pressure line over 110KV.
Apply to the transformation of old lines.

Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

The Standard Of Optical Fiber

ITU-TG.652	Characteristics of a single mode optical fiber.
ITU-TG.655	Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B	Col code of fiber optic cables.
IEC 60794-4-10	Aerial optical cables along electrical power lines-family specification for OPGW cable.
IEC 60794-1-2	Optical fiber cables -part test procedures.
IEEE1138-2009	IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC 61232	Aluminum -Clad steel wire for electrical purposes.
IEC60104	Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 61089	Round wire concentric lay overhead electrical stranded conductors.

The Specification Of tranded Type Stainless Steel Tube OPGW Cable

Typical design for Double Layer：

Specification	Fiber Count	Diameter(mm)	Weight (kg/km)	RTS(KN)	Short Circuit (KA2s)
OPGW-89[55.4;62.9]	24	12.6	381	55.4	62.9
OPGW-110[90.0;86.9]	24	14	600	90	86.9
OPGW-104[64.6;85.6]	28	13.6	441	64.6	85.6
OPGW-127[79.0;129.5]	36	15	537	79	129.5
OPGW-137[85.0;148.5]	36	15.6	575	85	148.5
OPGW-145[98.6;162.3]	48	16	719	98.6	162.3

Typical design for Three Layer：

Specification	Fiber Count	Diameter(mm)	Weight (kg/km)	RTS(KN)	Short Circuit (KA2s)
OPGW-232[343.0;191.4]	28	20.15	1696	343	191.4
OPGW-254[116.5;554.6]	36	21	889	116.5	554.6
OPGW-347[366.9;687.7]	48	24.7	2157	366.9	687.7
OPGW-282[358.7;372.1]	96	22.5	1938	358.7	372.1

One-stop Solution For OPGW Cable & Hardware

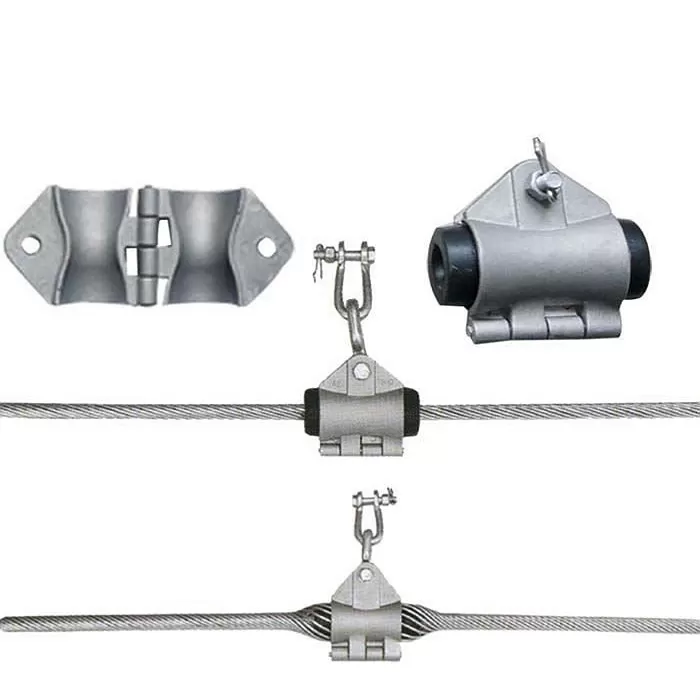

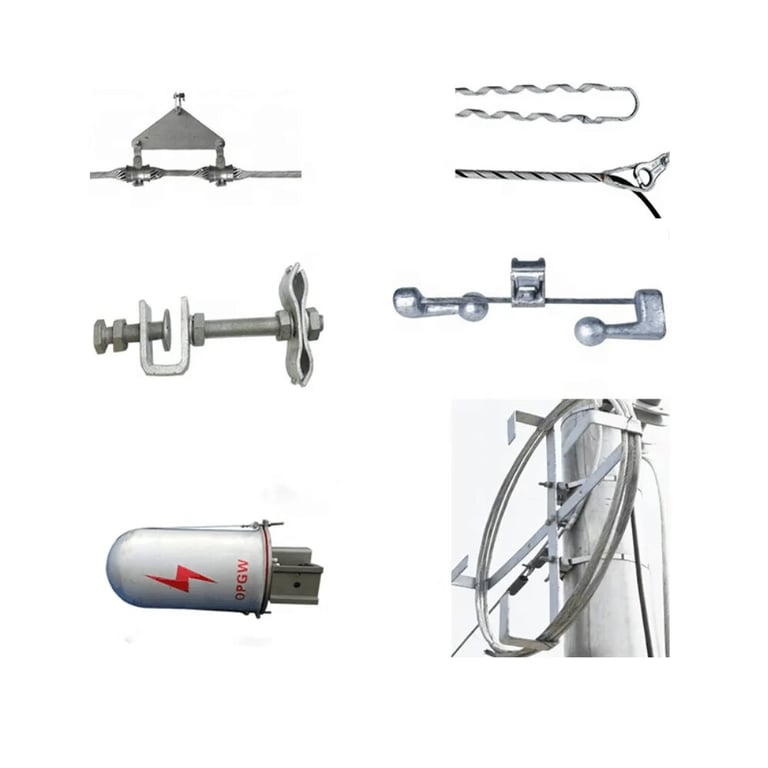

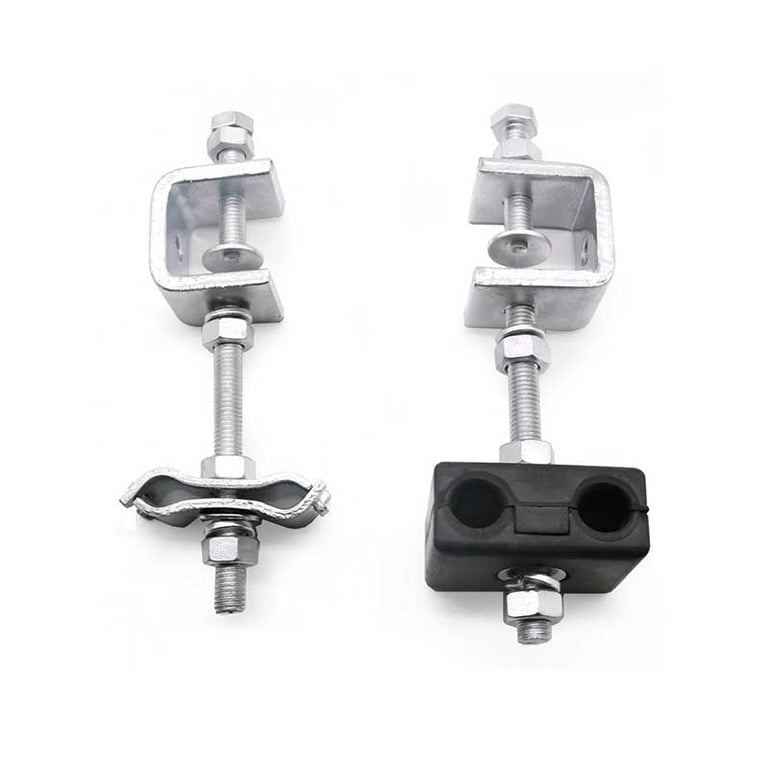

We provide 19 years of experience and excellent solutions for your hardware needs in both ADSS (All-Dielectric Self Supporting), OPGW (Optical Ground Wire), and other cable calmps. Such as suspension clamp, dead-end clamp, dead-end fittings, joint box, etc. We are fully equipped to serve as your hardware provider and be your “one-stop-shopping” service. Or, if you prefer, you may purchase the approved hard w a re separately.

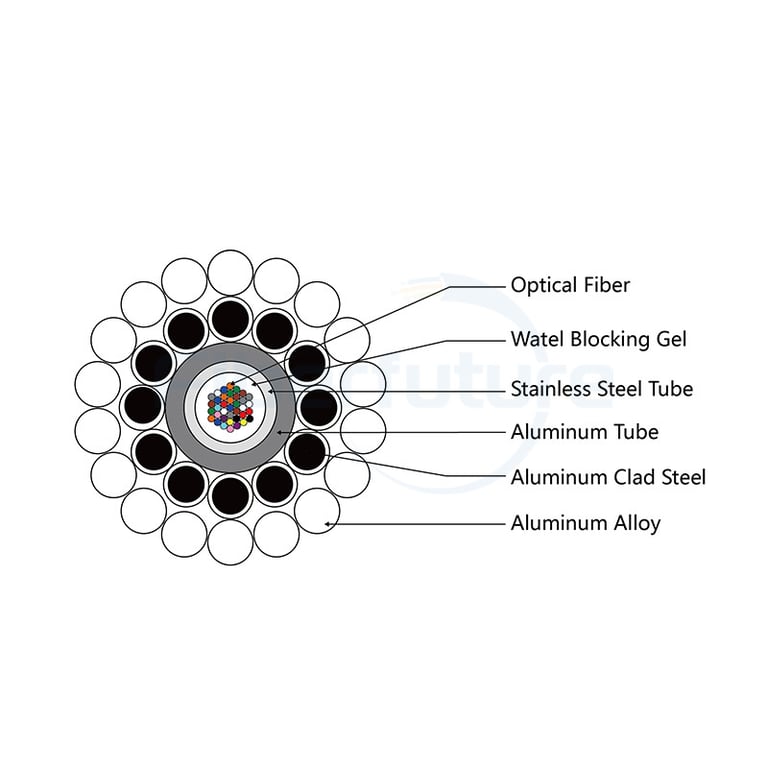

AL-covered Stainless Steel Tube OPGW Cable

Test Requirements For OPGW Cable

Hunangl ensures a continuing level of quality in our cable products through several quality control programs including ISO 9001. We ensure the product reliability through rigorous qualification testing of each product family.Both initial and periodic qualification testing are performed to assure the cableʼs performance and durability in the field environments.

GENERAL
There are different test series to assure the quality of OPGW:
- Routine test (in‒process testing according to internal quality plan)
- Factory acceptance test (FAT, witnessed by customer)
- Type test (only in case of a basic new design, repetition in exceptional cases)
OPGW tests shall be in accordance with applicable standards or agreements between purchaser and manufacturer.
As a general rule the tests will be performed according IEC 60794-4-10.However, if necessary tests can be done according to IEEE Std1138.

Type test
Type test may be waived by submitting makerʼs certificate of the similar product performed
in an internationally acknowledged independent test organization or laboratory. If type test
should be performed, it will be carried out according to an extra type test procedure reached
to an agreement between purchaser and manufacturer.

Routine test
The optical attenuation coefficient on all production cable lengths is measured according to IEC 60793-1-CIC (Back-scattering technique, OTDR). Standard single-mode fibers are measured at 1310nm and at 1550nm. Non-zero dispersion shifted single‒mode (NZDS) fibers are measured at 1550nm.

Factory test
Factory acceptance test is carried out on two samples per order in the presence of the customer or his representative. The requirements for quality characteristics are determined by relevant standards and agreed quality plans.
