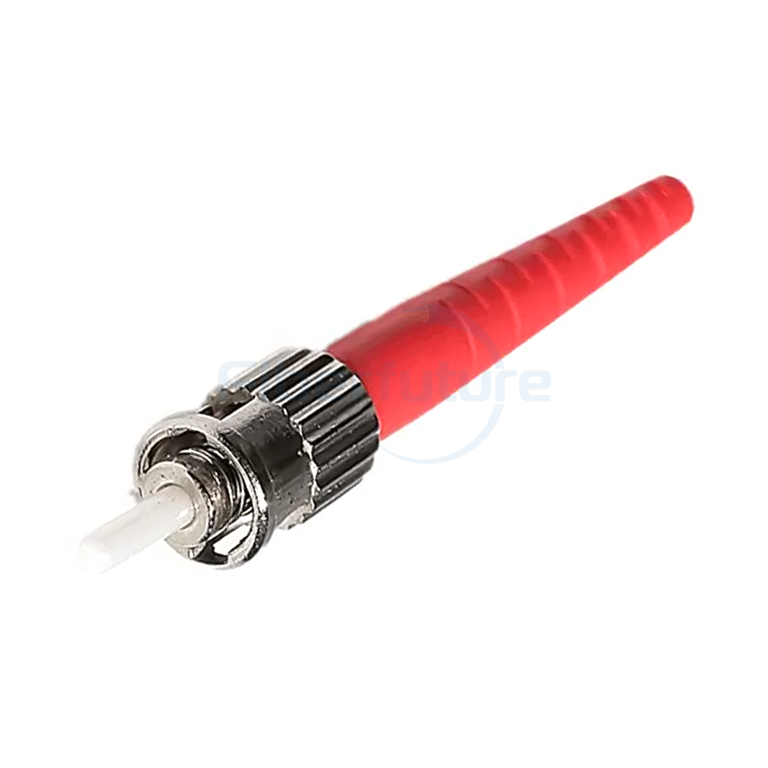

FIBERFUTURE ST UPC fiber optic connector uses 2.5mm diameter precision ceramic ferrule and micro-convex physical contact technology to ensure low reflection loss and excellent signal transmission. It is widely used in LAN, data communication and CATV systems. It has a sturdy structure and fast plug-in characteristics, and is suitable for high vibration environments.
Specializing in the engineering design and integration of fiber optic communication systems to ensure efficient data transmission.
Establish a robust fiber optic data network to support high-speed information exchange.
Implement fiber optic CATV project plan to optimize cable TV signal transmission.
Perform experiments and evaluations of various optical technologies to promote technological advancement.
Diverse design styles, equipped with comprehensive interface options.
Excellent low insertion loss performance with negligible additional losses.
Achieve efficient attenuation control to ensure signal purity.
High return loss, compact structure, light weight and easy to carry.
Extremely high stability and reliability ensure worry-free long-term operation.
Mechanical properties in compliance with IEC 874-2 standards and excellent quality.
| Applicable connector type | ST/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15, maximum≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮2.5mm |
| Insert core parameter | Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm, ∮3.0mm |
| Working temperature | -20℃to+70℃ |
| Storage temperature | -40℃to+85℃ |
