ST Simplex Single Mode OS2 Fiber Optic Patch Cable Supplier

FIBERFUTURE ST simplex single mode OS2 fiber optic patch cord is a high-quality cable for optical communication. It is equipped with ST connectors and supports long-distance, low-loss data transmission. It is suitable for network infrastructure that requires stable and reliable performance, such as connections between servers or devices to distribution frames.

Send Email

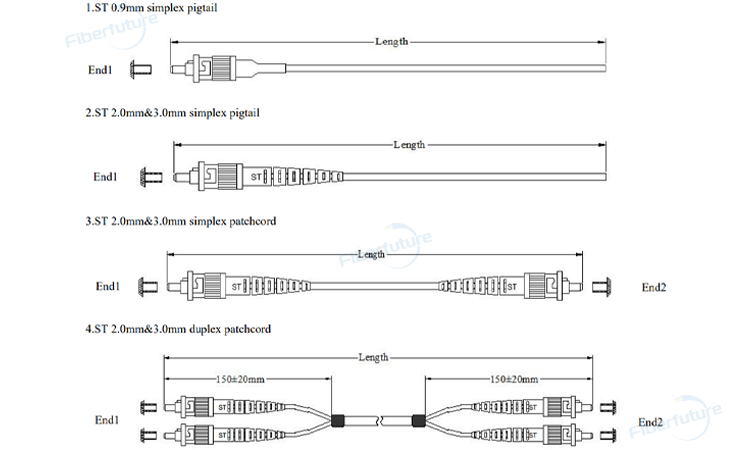

Dimensional Diagram

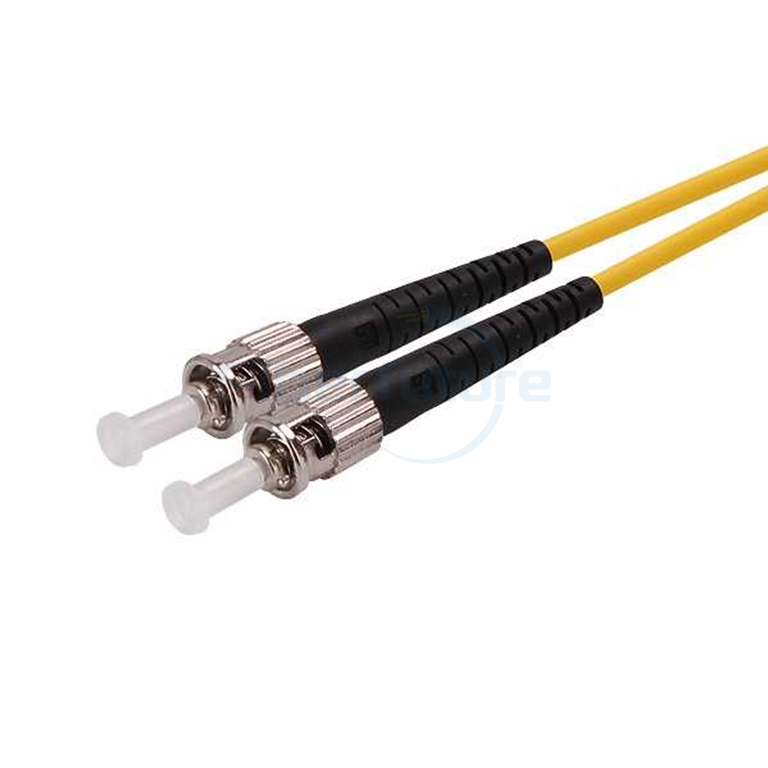

ST Simplex Single Mode OS2 Fiber Optic Patch Cable

Applications

System engineering in optical fiber communications.
Fiber-based data networking.
Fiber CATV system deployment.
Optical tech testing and evaluation.

Features

Wide-ranging styles and complete interfaces.
Low loss for optimal signal flow.
Significant interference reduction through high attenuation.
High back loss with a compact, lightweight build.
Outperforms IEC and Telcordia standards on end-face quality.
Robust LSZH, OFNP, OFNR cable protection.
IEC 61754-2 mechanical resilience.
Environmentally compliant RoHS and REACH materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 50dB (UPC)	≥30dB (UPC)	IEC 61300-3-6
