Single Mode And Multimode Fiber Patch Cord with DIN Connector

FIBERFUTURE DIN APC fiber optic patch cords use DIN connectors with angle polished connectors to ensure low reflection and high connection stability. They are suitable for demanding RF and microwave applications, as well as high-precision fiber optic communication systems.

Send Email

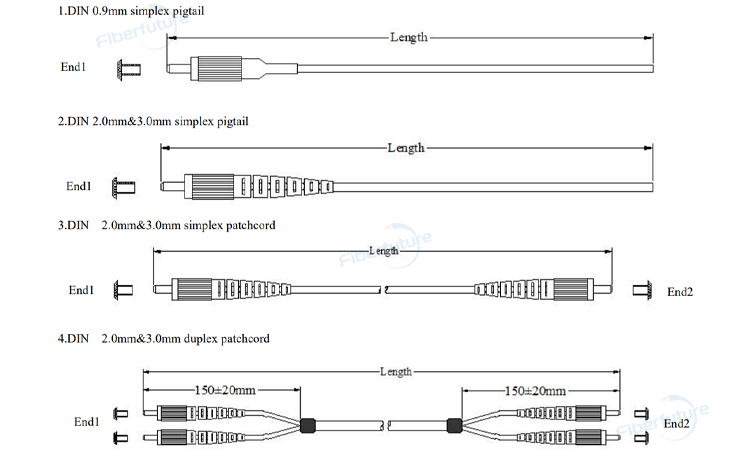

Dimensional Diagram

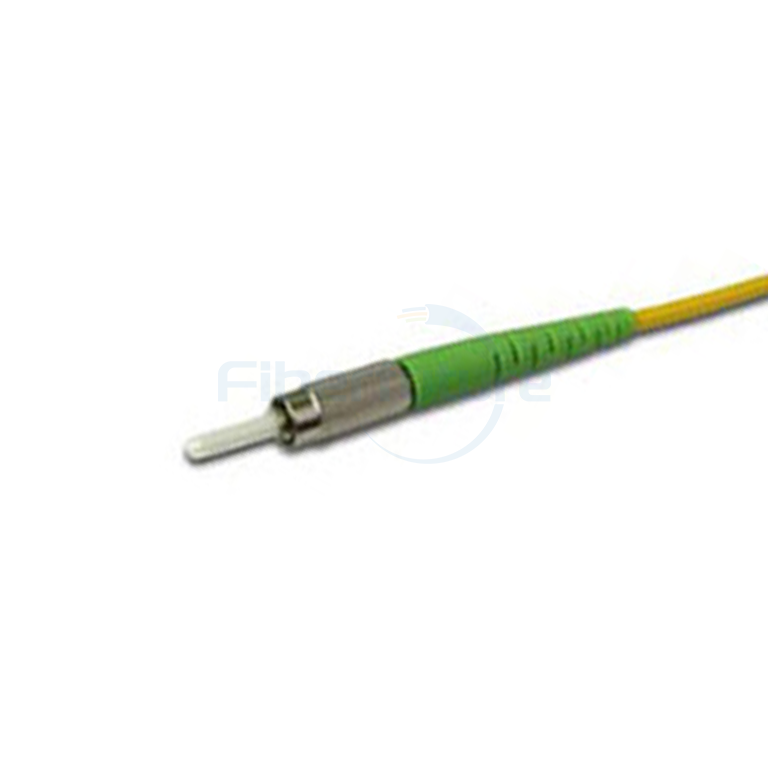

Single Mode And Multimode Fiber Patch Cord with DIN Connector

Applications

Optical fiber system engineering.
Fiber optic data network operations.
Fiber CATV system installation.
Optical technology experimental testing.

Features

Offers a wide variety of configurations with comprehensive connector options.
Ensures minimal signal degradation with low insertion and additional loss.
Provides superior attenuation for reduced interference.
Features high back reflection loss, compact size, and lightweight design.
Surpasses IEC and Telcordia standards for end-face geometry and quality.
Equipped with LSZH, OFNP, and OFNR rated cable protection.
Adheres to IEC 61754-3 for mechanical robustness.
Complies with RoHS and REACH for environmentally responsible materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
