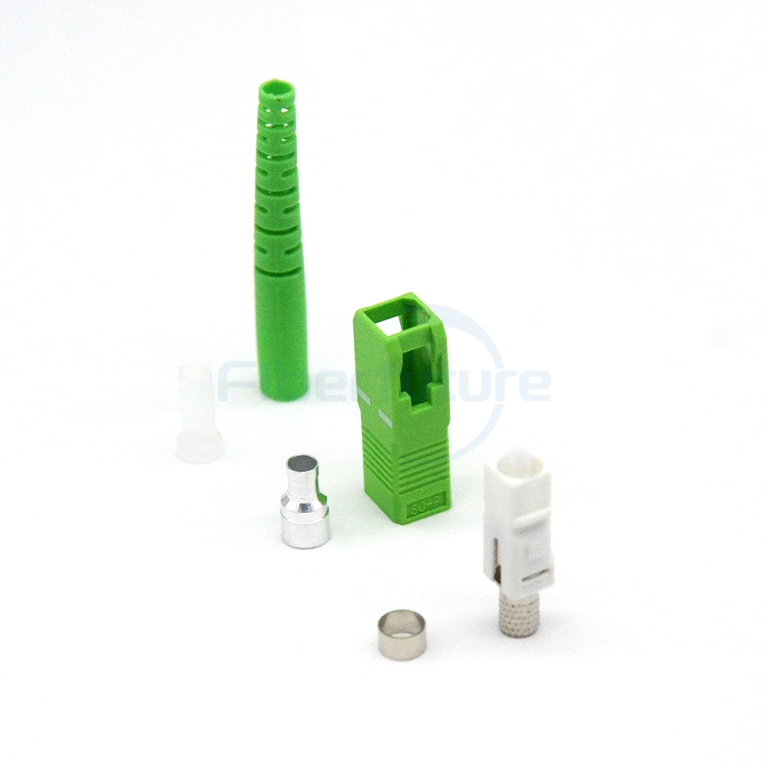

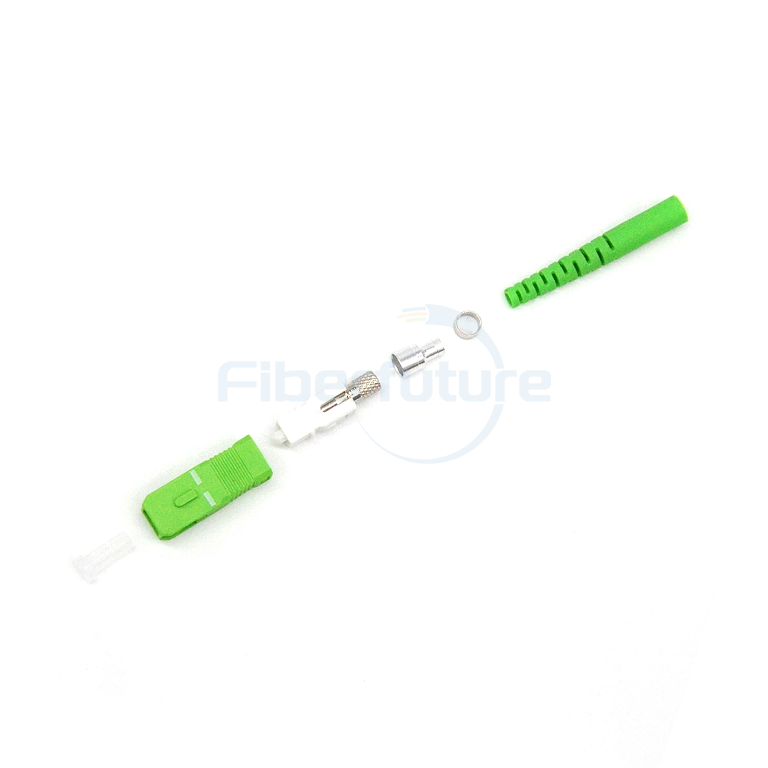

SC/APC Fiber Optic Fast Connector, SC APC SM Fast Connector

SC/APC Fiber Optic Fast Connector, SC APC SM Fast Connector

FIBERFUTURE SC/APC fast fiber optic connector, with plug-and-play design, simplifies field installation. Applicable to single-mode optical fiber, angle polishing technology ensures low reflection and optimizes signal transmission. Compact and durable, high-speed data communication, ideal for telecommunications, data centers and CATV networks.

Send Email

Applications

Engineering and deployment of optical fiber communication systems.
Integration of fiber optic infrastructure for data communication networks.
Design and implementation of fiber-based cable television (CATV) networks.
Conducting assessments and experiments on novel optical technologies.

Features

Versatile design with a broad spectrum of interface options.
Exceptionally low insertion loss coupled with minimal additional loss.
Superior attenuation capabilities for precise signal control.
High return loss, compact build, and featherweight structure.
Unmatched stability and reliability across varying conditions.
Adheres to rigorous mechanical performance standards as per IEC 874-4.

Specifications

Applicable connector type	SC/APC
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15, maximum≤0.30
Return Loss	≥60dB
Insert core diameter	∮2.5mm
Insert core parameter	Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm
Durability	1000 times plug
Suitable for optical cable diameter	∮2.0mm, ∮3.0mm
Working temperature	-20℃to+70℃
Storage temperature	-40℃to+85℃
