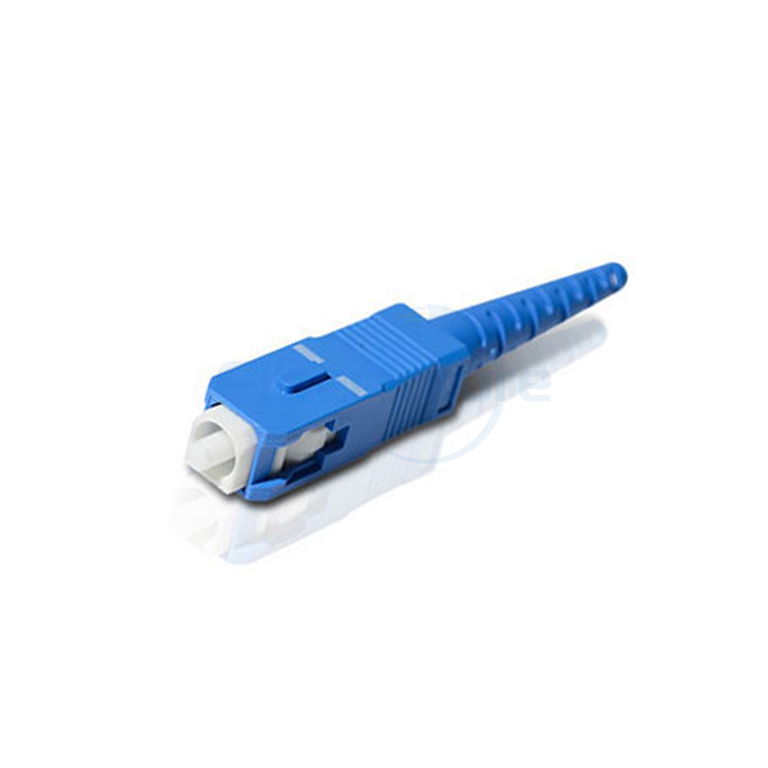

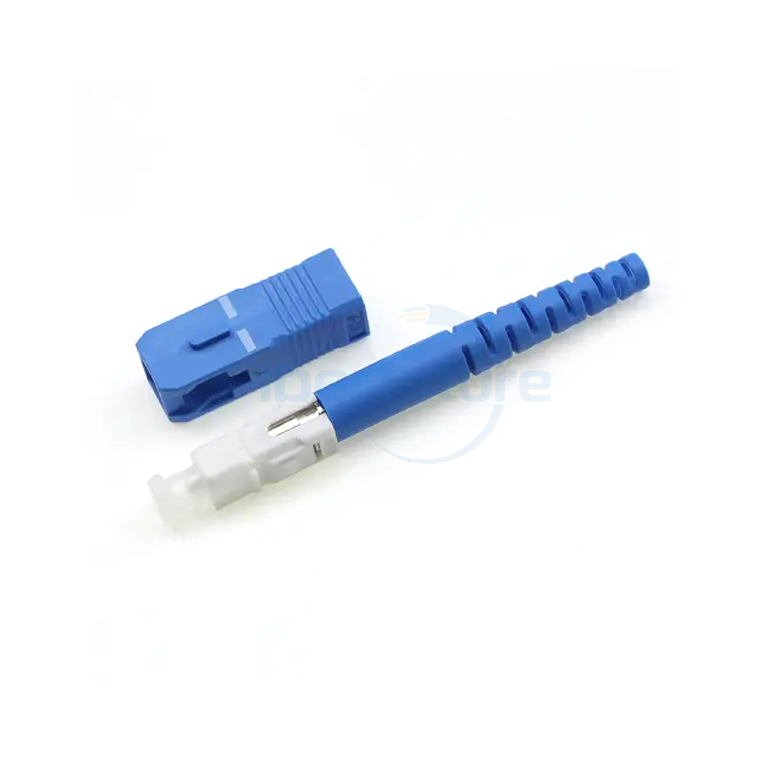

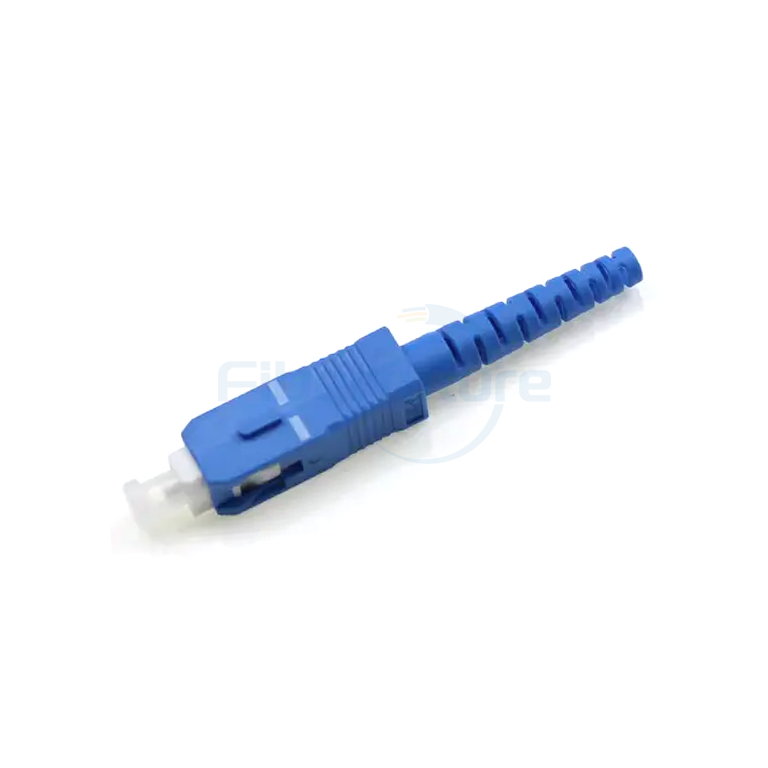

FIBERFUTURE SC/UPC SM Connector is a single-mode fiber optic connector that uses an SC-type interface and micro-convex grinding process (UPC) to ensure low reflection loss. It is suitable for local area networks, wide area networks and telecommunication networks, providing stable and reliable signal transmission, with convenient plug-in and unplug operation and compact design, supporting high-density wiring applications.
Engineering design and implementation, focusing on fiber-optic communication systems to ensure efficient information transmission.
Build high-performance fiber-optic data networks to support broadband and high-speed data exchange needs.
Professional CATV fiber-optic engineering solutions to optimize cable TV network service quality.
Carry out various optical technology evaluations and tests to promote technological innovation and application.
| Applicable connector type | SC/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15, maximum≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮2.5mm |
| Insert core parameter | Aperture: 125.5+1/-0μm, Concentricity: ≤1μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm, ∮3.0mm |
| Working temperature | -20℃to+70℃ |
| Storage temperature | -40℃to+85℃ |
