SC SC Pre Terminated Fiber Optic Cable REACH Compliant

FIBERFUTURE Pre-terminated SC-SC fiber optic cables are equipped with plug-and-play SC connectors to simplify the installation process. They are suitable for rapidly deployed data centers and local area network environments, providing stable and efficient single-mode or multi-mode fiber optic signal transmission solutions.

Send Email

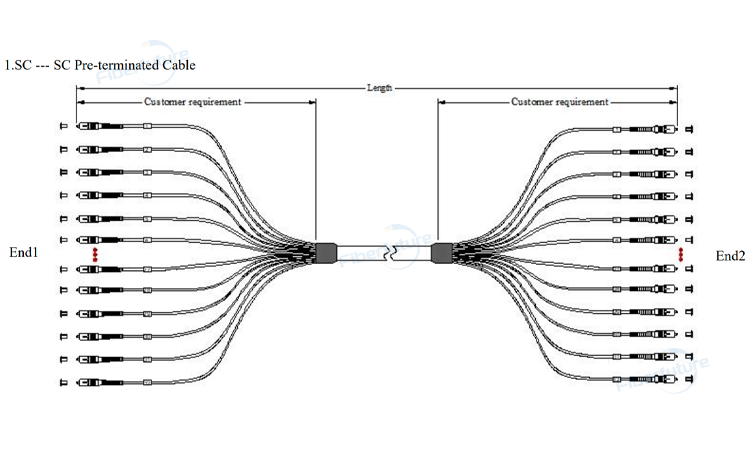

Dimensional Diagram

SC SC Pre Terminated Fiber Optic Cable REACH Compliant

Applications

Integration in the design and implementation of optical fiber communication systems.
Utilization in fiber optic data networks for high-speed information exchange.
Linking trunk cables to endpoint devices or network equipment ports.
Connecting with switch or media conversion modules to device access points.

Features

Fully terminated and rigorously tested in-house to guarantee superior transmission efficiency.
Enables swift setup and connectivity, significantly cutting down installation duration.
Compatible with advanced 40G and 100G network applications.
Ensures minimal signal degradation with low insertion and additional loss.
Available in various core counts up to 144F, with custom configurations offered.
Offers high back reflection loss, compact design, and lightweight construction.
Surpasses IEC and Telcordia standards for end-face geometry and finish.
Equipped with LSZH, OFNP, and OFNR rated cable sheathing.
Complies with IEC 61754-4 for outstanding mechanical resilience.
Adheres to RoHS and REACH for environmentally conscious material use.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
