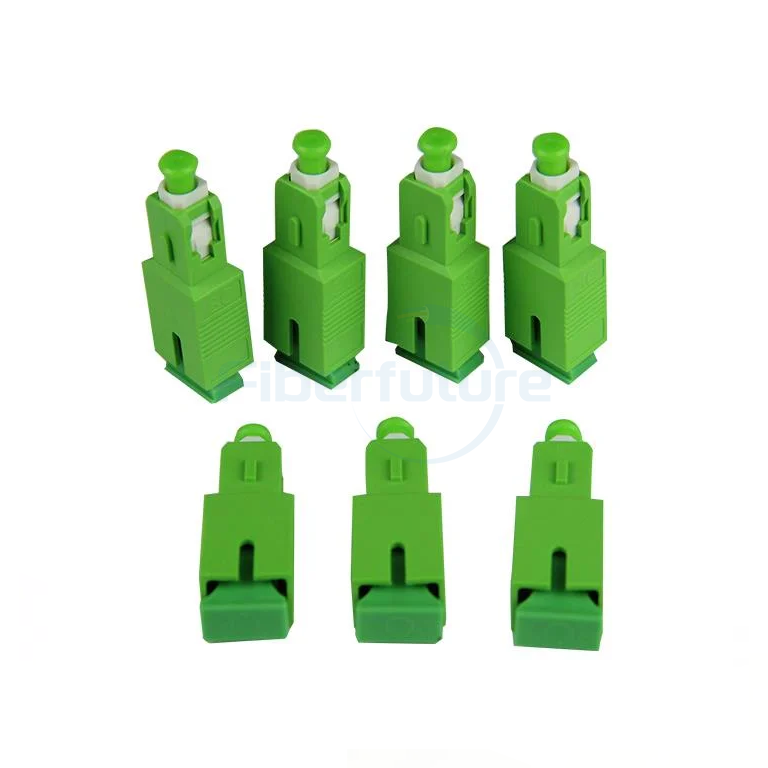

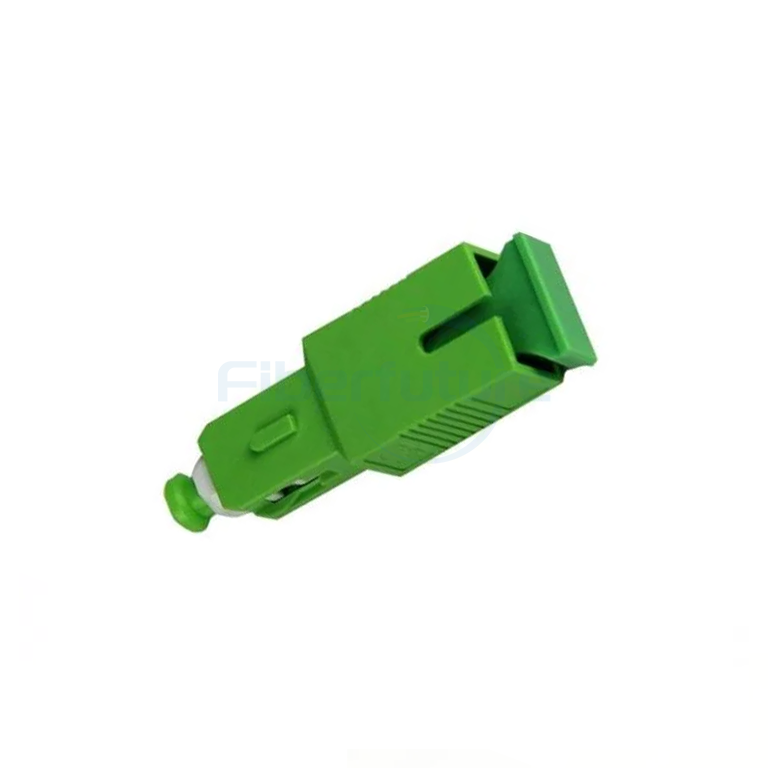

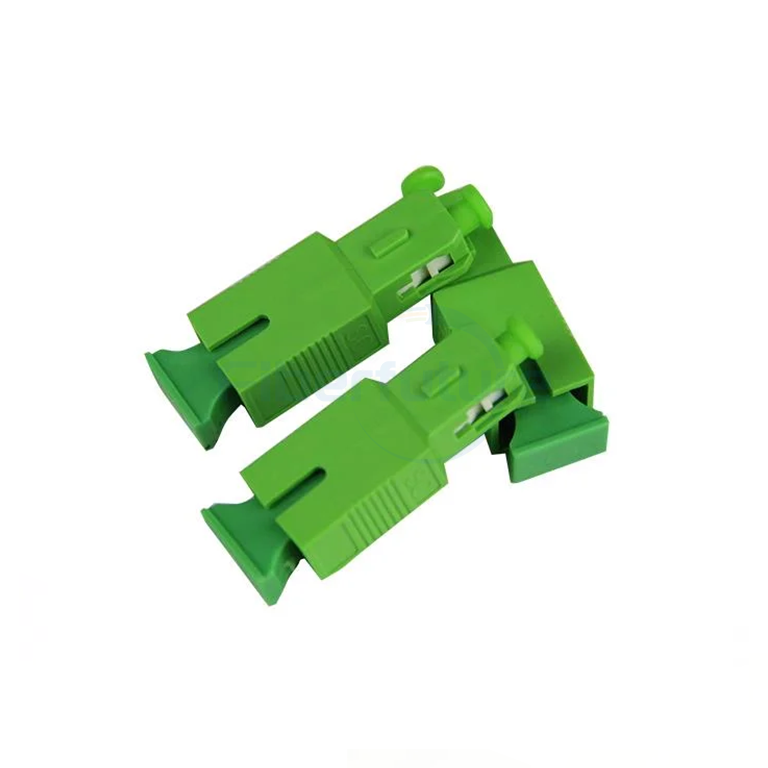

SC FTTH Optical Grating Reflector for FTTx Application

SC FTTH Optical Grating Reflector for FTTx Application

FIBERFUTURE SC FTTH optical grating reflector is designed for FTTx applications, featuring SC connectors and optimized for 1650±5 nm wavelength, ensuring low insertion and return loss with high reliability and stability.

Send Email

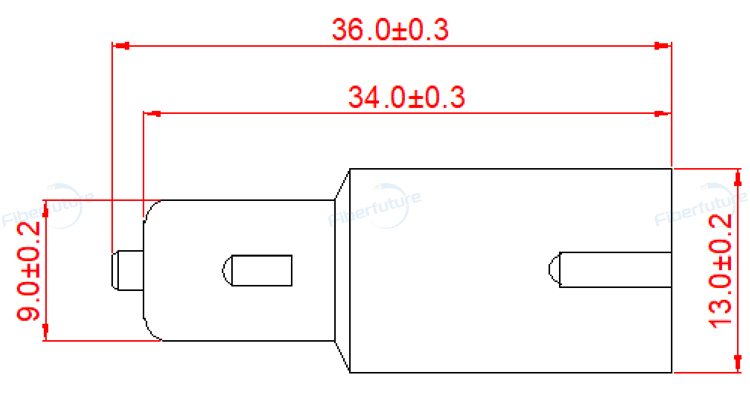

Dimension

SC FTTH Optical Grating Reflector for FTTx Application

Applications

FTTx (Fiber to the x) deployments
Next Generation Passive Optical Networks (NG-PON)
Testing reflectance at the central office

Features

Easy installation
Low insertion loss
Environmental stability and reliability

Specifications

Application	Center Wavelength 1650±5
Application Environment	-40℃~+85℃
Application	1260-1625
	Parameter	Units	Minimum	Typical value	Maximum	Remarks
Insertion Loss	1260nm-1360nm	dB			1.2
	1460nm-1610nm	dB			1.2
	1610nm-1625nm	dB			3
	Zoneofreflections	dB	21
Return Loss	1260nm-1360nm	dB	35
	1460nm-1610nm	dB	35
	1610nm-1625nm	dB	20
	Zoneofreflections	dB			1
Ripple	Zoneofreflections	dB			0.6
Maximum Input Power		dBm	27
Durability		times	500
Connector	SC/APC Male & SC/APC Femal
