SC APC Flat Drop FTTH Patch Cord 2.0*3.0mm/2.0*5.0mm

FIBERFUTURE SC APC flat drop FTTH patch cord is designed for efficient fiber optic connectivity in FTTH networks. It features SC APC connectors for low reflection and a flat drop cable for easy installation in confined spaces. Ideal for residential and small office applications.

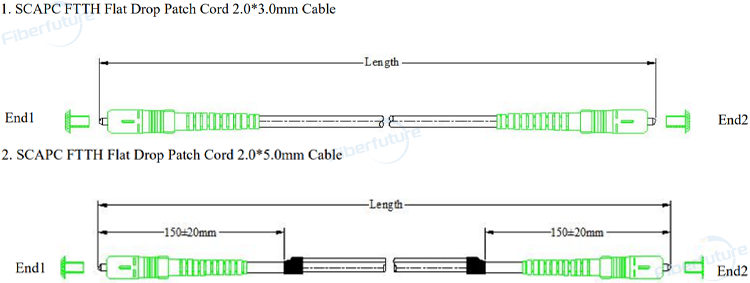

Dimensional Diagram

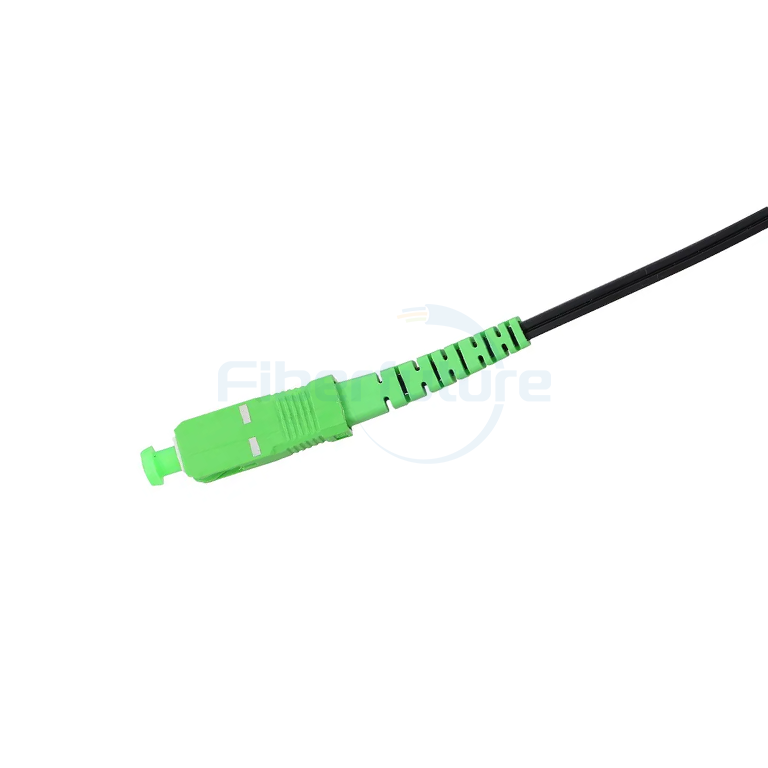

SC APC Flat Drop FTTH Patch Cord for FTTH Network

Applications

  1. FTTH networks for both indoor and outdoor installations.
  2. Local Area Networks and building cabling systems.
  3. Interconnections between instruments, terminal boxes, and communication equipment.

Features

  1. Cost-effective solution for in-house termination.
  2. Low insertion loss and minimal added loss.
  3. High attenuation performance.
  4. All-weather and UV-resistant materials in the jumper cable.
  5. Compliant with IEC 61754-4 mechanical performance standards.
  6. RoHS and REACH compliant materials.
  7. Cable diameter range: 2.0*3.0mm, 2.0*5.0mm.

Jumper Tolerance Requirement

Overall length (L) (M) Length of tolerance (CM)
0L20 +10/-0
20L40  +15/-0
L40  +0.5%L/-0
