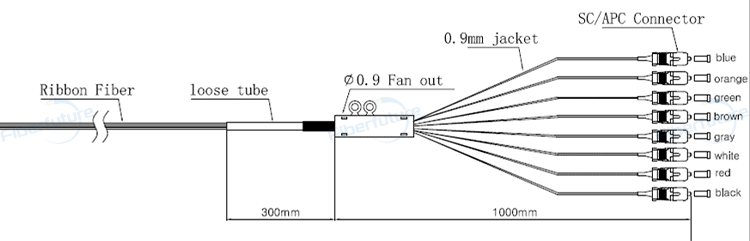

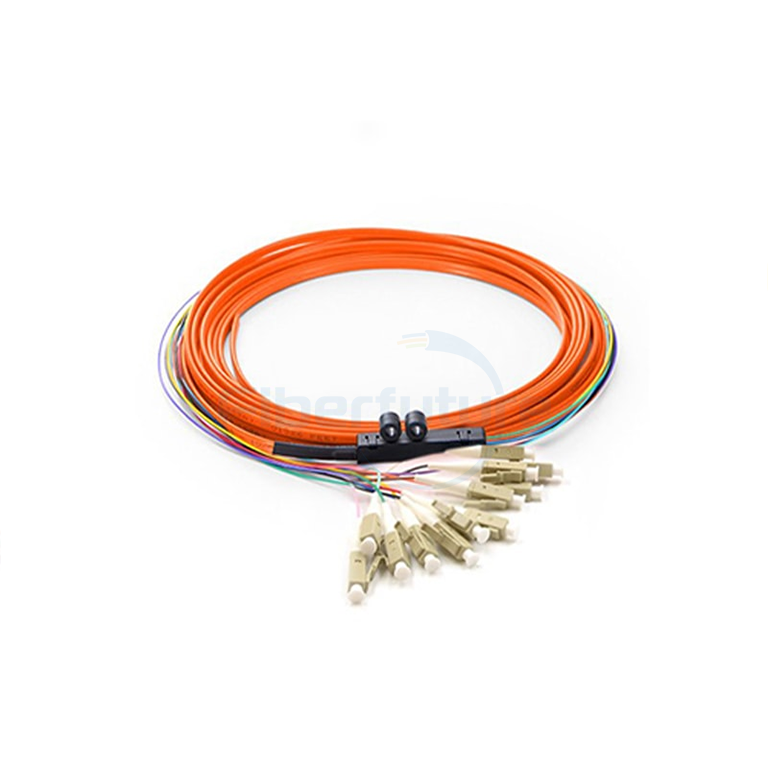

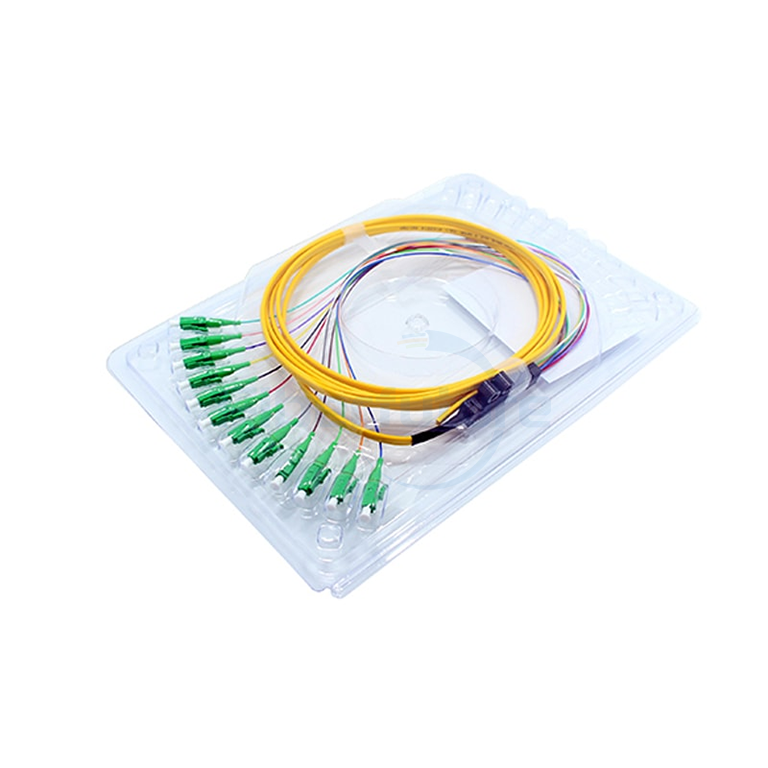

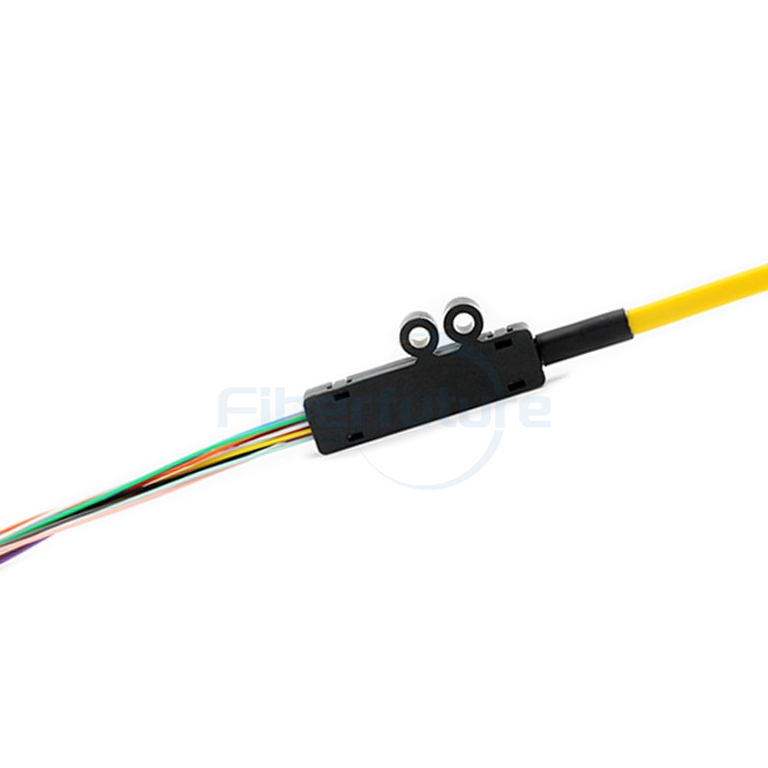

FIBERFUTURE ribbon cable fanout 0.9mm fiber optic pigtails 4-12F are multi-fiber pigtails using ribbon cable. They fan out through a 1×12 kit, with options for 0.9mm cables. Suitable for single and multimode applications, these pigtails are factory-inspected and tested.
| Connector Type |
|---|
| Overall Length (L) (m) | Length of Tolerance (cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
| Connector | SC, LC, FC, ST, E2000, MU, LX.5, DIN, D4 | Jacket OD (mm) | 4 cores:3.5×2.5mm
6 cores: 3.8×2.5mm 8 cores: 4.5×2.5mm 12 cores: 5.0×2.5mm |
| Fiber Mode | 9/125μm, 50/125μm, 62.5/125μm, | Jacket Color | SM: Yellow/Blue/White;
OM1&OM2: Orange; OM3: Aqua; OM4: Aqua/Violet/Magenta |
| Polish | PC, UPC, APC | Wavelength | SM: 1310/1550nm MM: 850nm |
| Cable Type | Multi-fibers Breakout 0.9mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB (IEC Grade C) | Insertion loss | ≤0.12dB (IEC Grade B) |
| Return loss | SM UPC ≥50dB (min) SM APC ≥60dB (min) MM PC ≥35dB (min) | Interchangeability & Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
