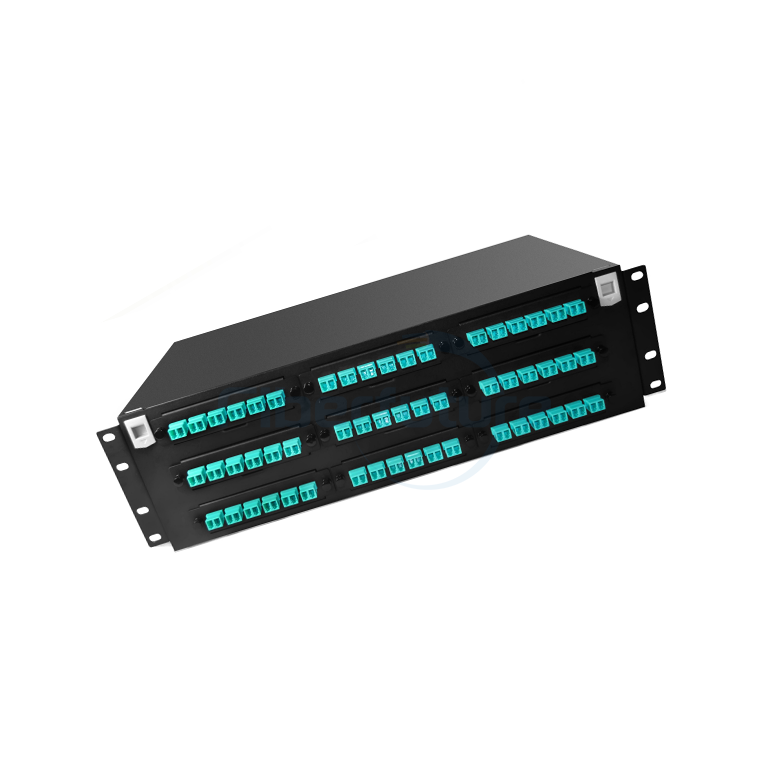

FIBERFUTURE 3U MPO fiber patch panel features a powder-coated finish for durability and corrosion resistance. Designed for high-density fiber management, it supports both ribbon and single fibers, offering a compact, user-friendly solution for data centers with front markings for easy identification.
Telecommunications loops
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems
19-inch frames.
Supports ribbon and single fibers.
Compact design saves space.
Front markings for easy identification.
Standard size, lightweight.
User-friendly for management.
Modular design for versatile configurations.
Converts MPO to multiple LC interfaces.
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Air pressure | 70Kpa~106Kpa |
| Color | Black |

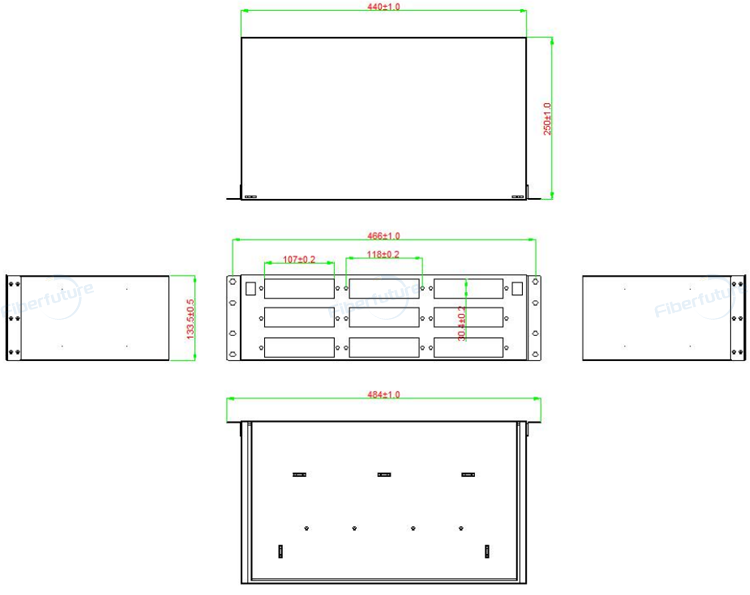

| Model | MPO-LC Type Cassette Quantity | Height | Dimension(LxWxH) |
| MPO-LC | 9 | 3U | 482mmx250mmx133.5mm |
