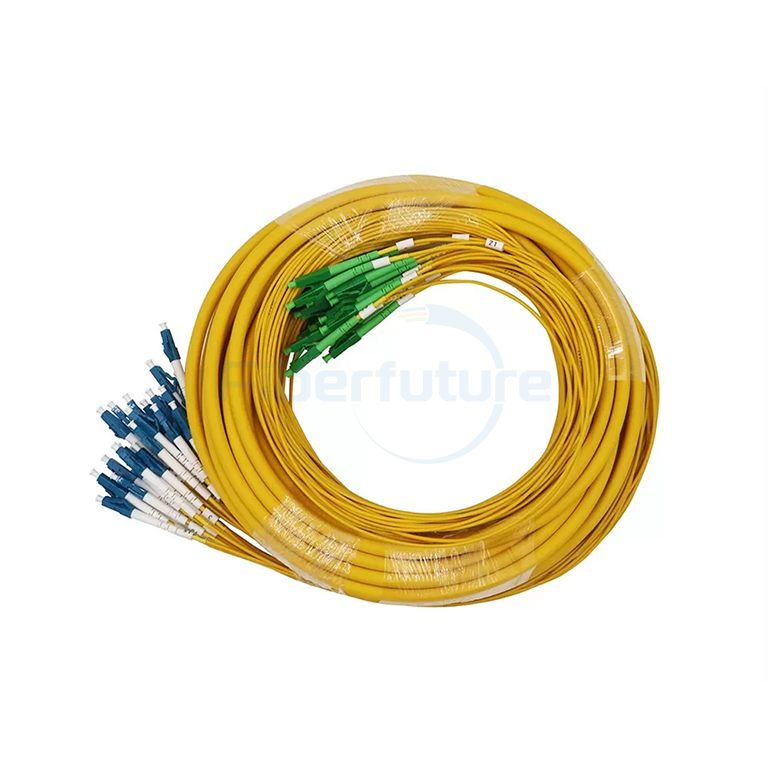

OFNR Jacket LC LC Preterminated Fiber Optic Cable

FIBERFUTURE LC-LC pre-terminated fiber optic cables use high-precision LC connectors and are pre-assembled and tested in the factory to ensure excellent transmission performance. Its compact design supports rapid configuration and network construction, greatly shortening installation time. It is suitable for 40G and 100G high-speed network applications, providing low insertion loss and high return loss to meet the needs of efficient connection between data centers and local area networks.

Send Email

Dimensional Diagram

OFNR Jacket LC LC Preterminated Fiber Optic Cable

Applications

Optical fiber system engineering.
Fiber network infrastructure.
Links trunk cables to equipment ports.
Connects modules to device access.

Features

Fully terminated and quality-assured through rigorous factory testing for optimal performance.
Streamlines setup and network integration, significantly decreasing installation duration.
Designed for compatibility with cutting-edge 40G and 100G network environments.
Minimizes signal degradation with low insertion and additional loss figures.
Capable of handling up to 144 fiber cores, with bespoke options tailored to specific needs.
Features high back reflection loss, compact design, and lightweight construction.
Surpasses IEC and Telcordia standards for end-face precision and quality assurance.
Incorporates LSZH, OFNP, and OFNR rated cable sheaths for safety and performance.
Adheres to IEC 61754-20 for exceptional mechanical durability.
Complies with RoHS and REACH directives for environmentally friendly materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
