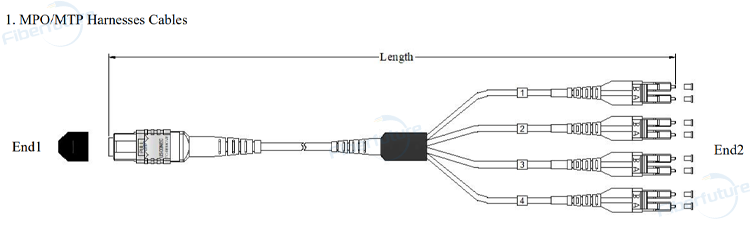

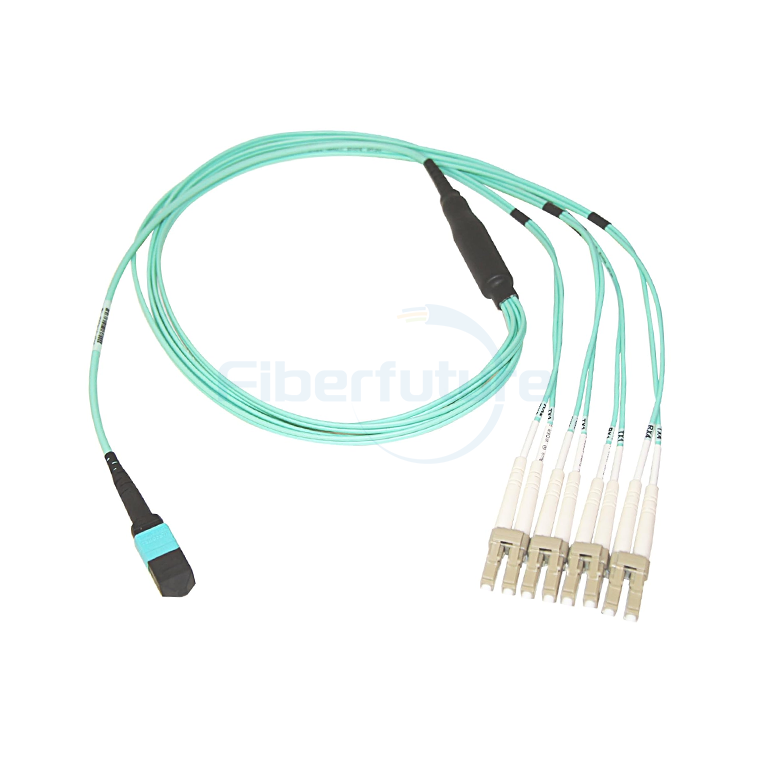

FIBERFUTURE Multi Mode MPO to LC fiber cable features a 50/125μm core/cladding diameter, designed for robust data center connectivity. The MPO/MTP harness cable supports high-speed transmission, ideal for 10G, 40G, and 100G networks, offering a compact solution for complex cabling scenarios while ensuring reliable and efficient performance.
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB (PC) | IEC61300-3-6 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 8 | 3.0±0.15 | 6.8 | 180 | 90 | 500 | 150 | 20D | 10D |
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D |
