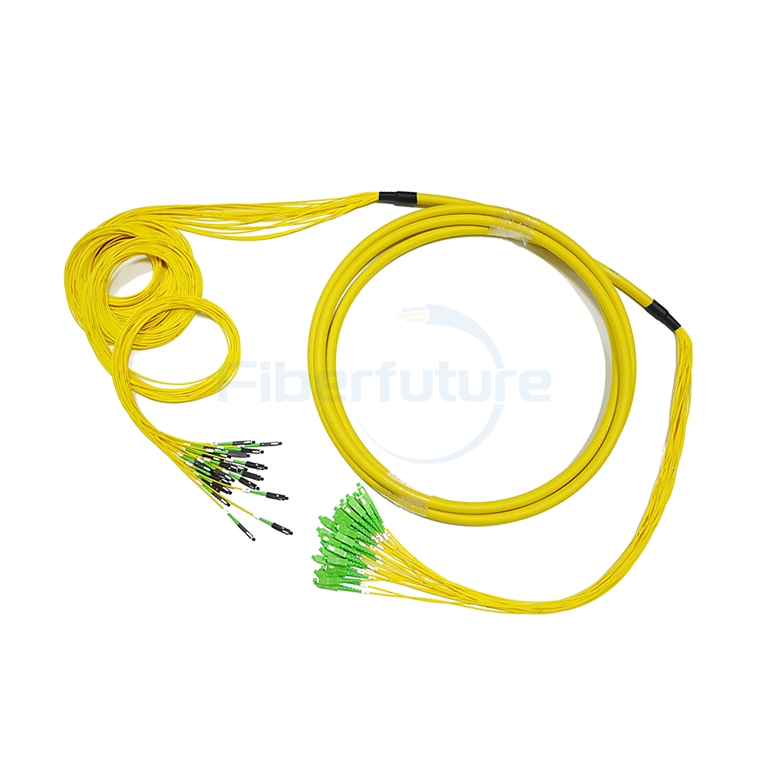

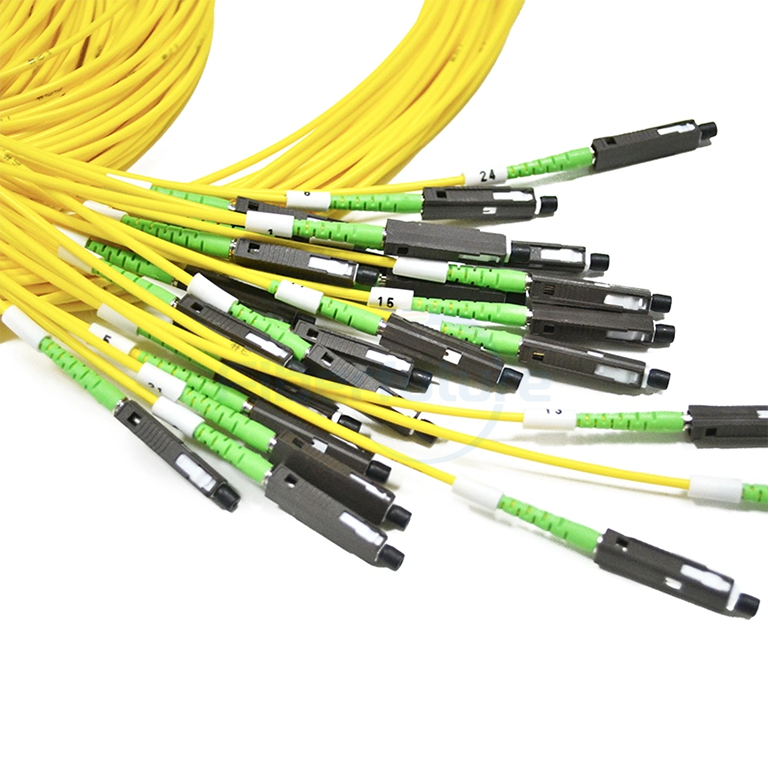

MU SC Pre-terminated Cable up to 12F 24F 48F 72F 96F 144F

FIBERFUTURE MU-SC pre-terminated cable is a high-performance fiber optic solution designed for swift and secure network installations. With MU and SC connectors at each end, it simplifies the setup process, reducing both time and potential errors. Ideal for data centers, LANs, and telecom applications, this plug-and-play cable ensures reliable, high-speed data transmission without the need for on-site termination. Its rugged design and precise alignment provide durability and optimal signal integrity.

Send Email

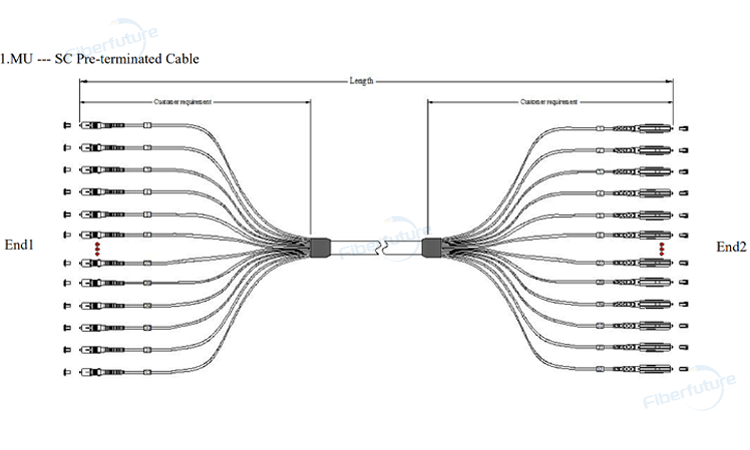

Dimensional Diagram

MU SC Pre-terminated Cable up to 12F 24F 48F 72F 96F 144F

Applications

Optical Fiber Communication Systems Engineering: Integral to the construction and maintenance of telecommunication networks, these cables serve as critical components in designing, installing, and upgrading fiber optic backbone systems. They ensure robust connectivity for voice, video, and data transmission over long distances.
Fiber Optic Data Communication Networks: Perfectly suited for modern data centers and enterprise networks, they facilitate high-speed, low-latency connections between servers, switches, and storage devices, optimizing network performance and reliability.
Connecting Trunk Cables to Equipment Ports: Ideal for linking main distribution areas with end-user equipment, these cables provide a seamless transition from high-capacity trunk lines to individual device ports, ensuring uninterrupted service delivery.
Interfacing with Transfer Modules and Equipment Ports: Designed to connect optical transfer modules, such as transceivers or media converters, directly to network devices, they enable efficient conversion of signals between fiber optic and electrical interfaces, streamlining network architectures and enhancing operational flexibility.

Features

Factory-pretested for assured transfer performance.
Accelerates setup, minimizing installation downtime.
Supports cutting-edge 40G/100G network capabilities.
Optimized for low insertion and additional loss.
Versatile configurations up to 144 fibers; custom options available.
High return loss, compact size, and lightweight design.
Exceeds IEC and Telcordia standards for end-face quality.
Equipped with LSZH, OFNP, OFNR jacket materials.
Complies with IEC mechanical standards for robust performance.
Adheres to RoHS and REACH regulations for safe materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
