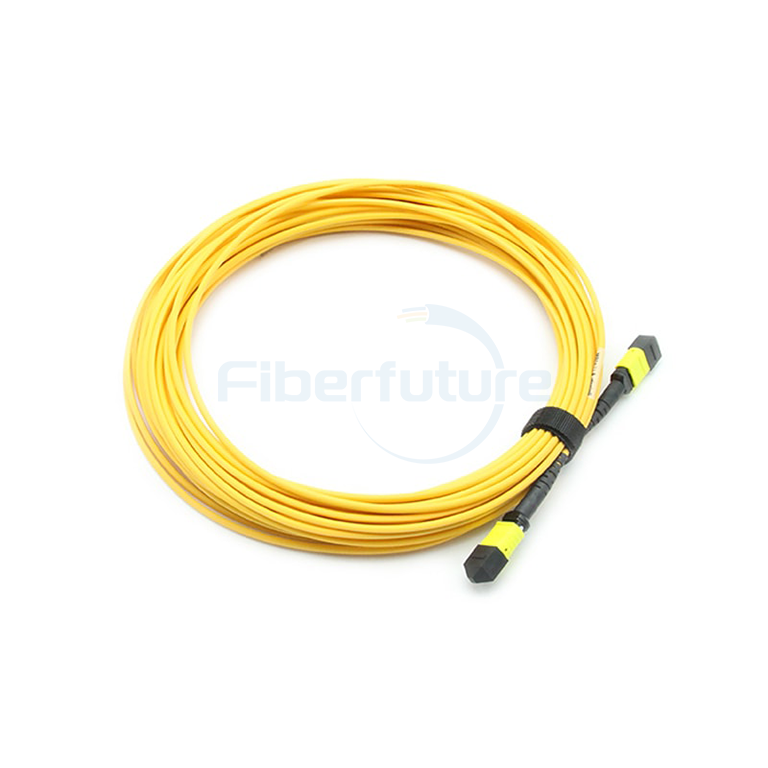

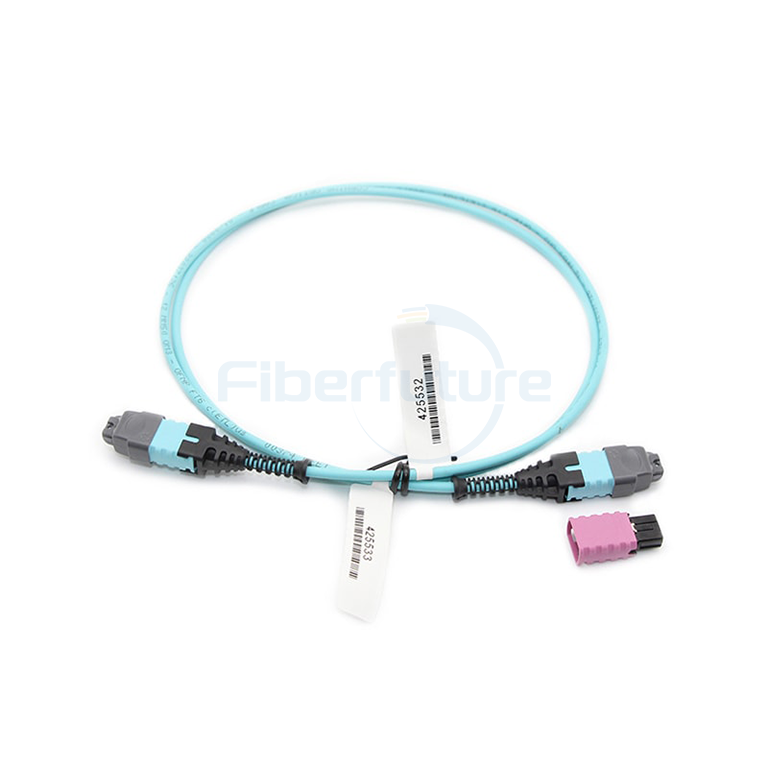

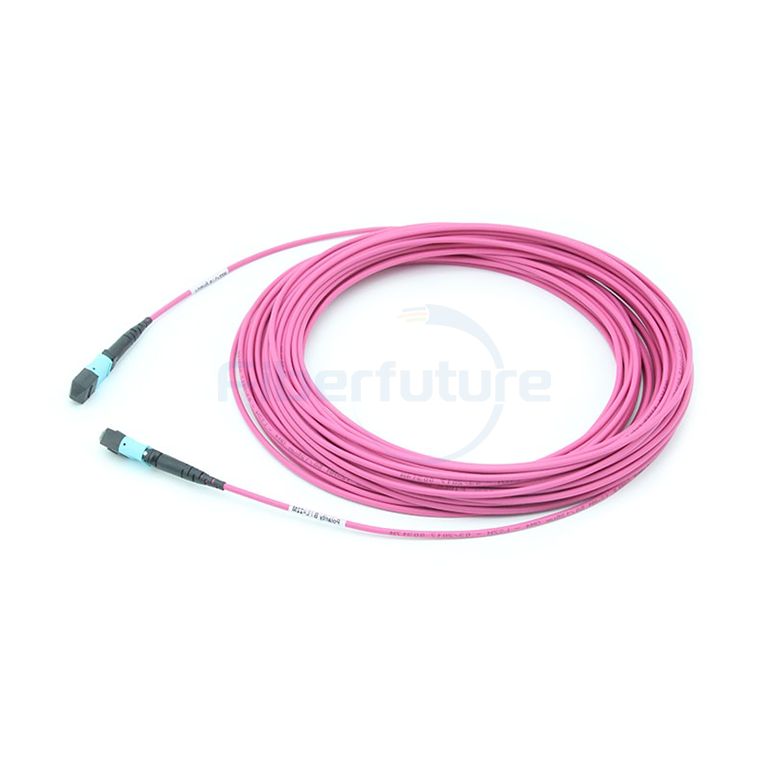

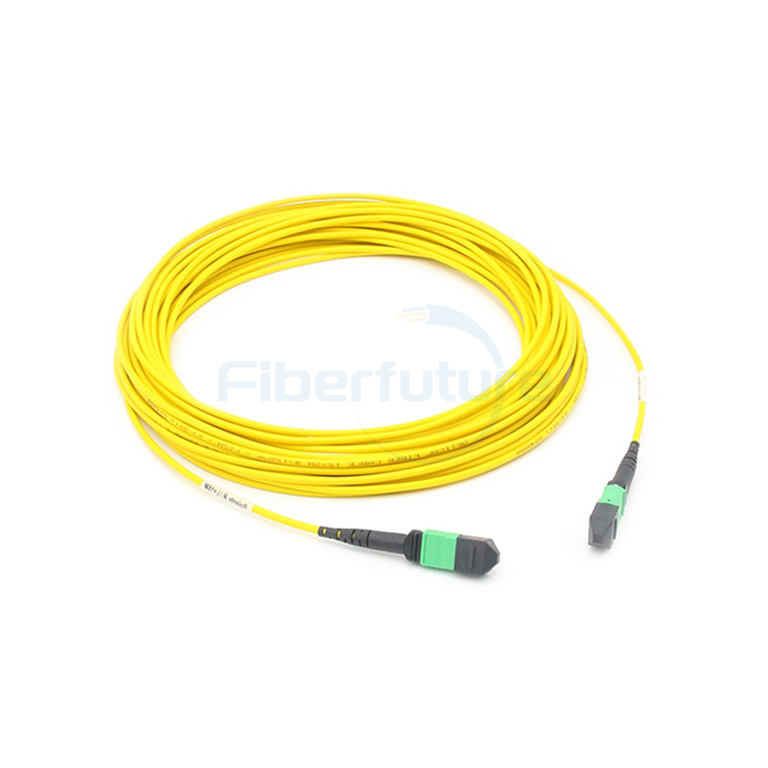

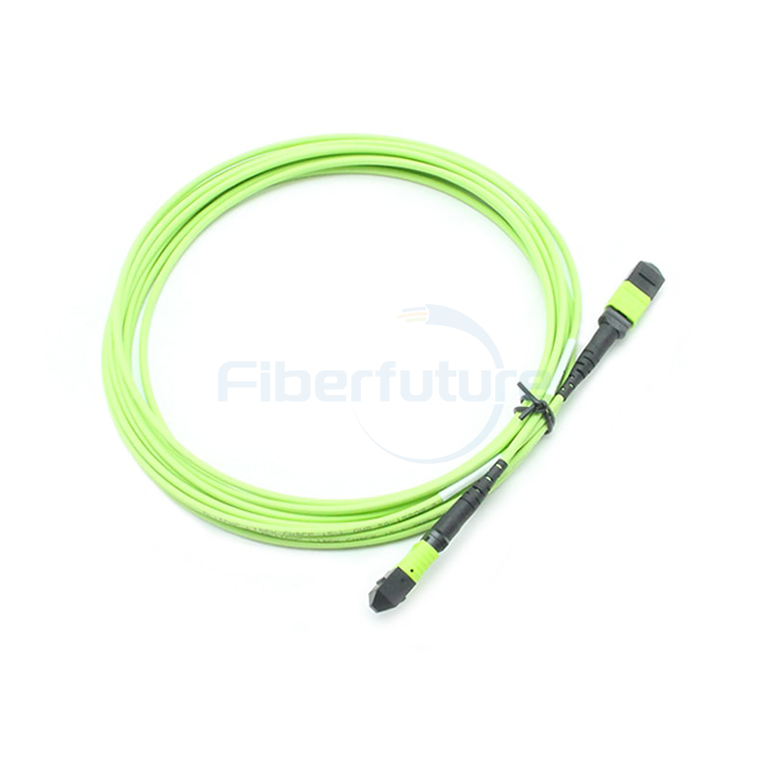

FIBERFUTURE 24F MTP fiber patch/trunk cable, equipped with MTP connectors on both ends, is designed for high-density backbone cabling in data centers, supporting speeds up to 10/40/100Gbps. It connects modules, cassettes, or panels. For added flexibility, when changing connector styles, simply install a new cassette in the patch panel instead of altering the cable itself.
| Connector | Reference | Housing Details |
| MTP Single Mode | IEC 61754-7 | SM APC: Green Connectors+Black Boot (Standard Loss MTP)
SM APC: Yellow Connectors+Black Boot (Elite MTP) |
| MTP Multimode | IEC 61754-7 | OM3 & OM4 PC: Aqua Connectors+Black Boot (Standard Loss & Elite MTP) |
IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
| Fiber Count | OD (mm) |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
| 24 | 3.0±0.15 | Short-Term: 180; Long-Term: 90 | Short-Term: 500; Long-Term: 150 | Static: 10D; Dynamic: 20D |
| Spec Items | Single Mode (APC 8-degree Polished) | Multimode (PC Flat Polish) |
| Insertion Loss (MTP)
(IEC 61300-3-34) |
Standard Loss: ≤0.75dB (max), ≤0.50dB (Typical) Elite Loss: ≤0.35dB (max), ≤0.20dB (Typical) |
Standard Loss: ≤0.6dB (max), ≤0.50dB (Typical)
Elite Low Loss: ≤0.35dB (max), ≤0.20dB (Typical) |
| Return Loss (MTP) | ≥60dB（8-degree Polishing） | ≥25dB |
| Durability | <0.3dB Typical Change, 200 Matings | |
| Interchangeability | ≤0.2dB | |
| Tensile Strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
