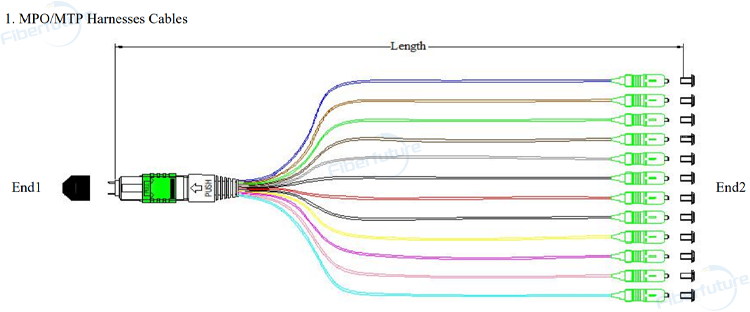

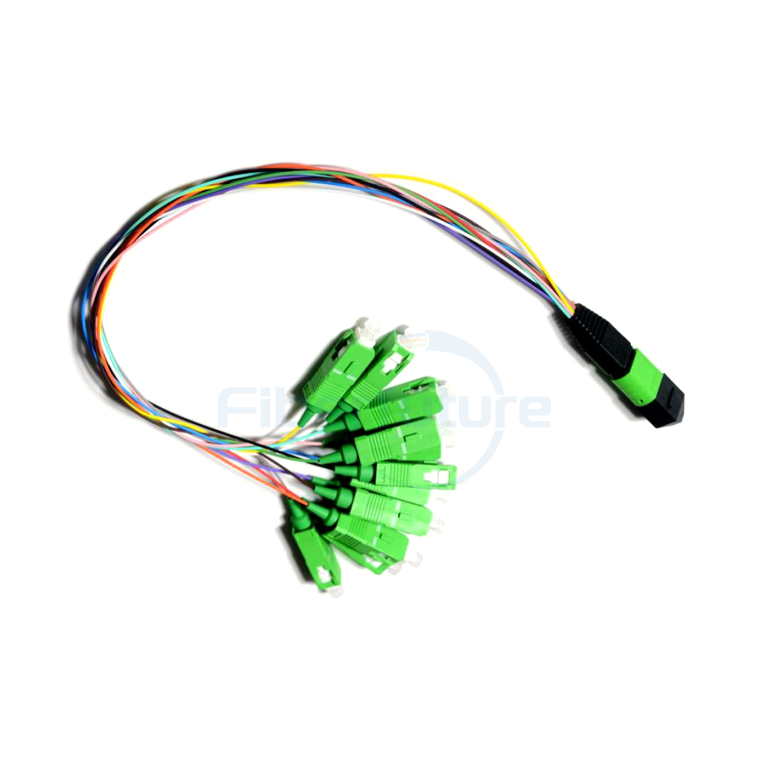

FIBERFUTURE MPO/MTP 0.9mm fiber optic patch cords are designed for high-density data center applications, offering reliable multimode connectivity with precision-polished contacts, ideal for fan-out applications in server racks and patch panels.
1. Robust data transmission in enterprise and wide area networks.
2. Last-mile connectivity in fiber-to-the-home and fiber-to-the-premises deployments.
3. High-speed data transfer in storage area networks utilizing fiber channel technology.
4. Densely packed data centers and server rooms where efficient use of space is paramount.
1. Every cable is fully terminated and rigorously tested to assure superior transfer performance right out of the box.
2. Choose from LSZH, OFNR, or OFNP jacket materials to meet specific safety and environmental requirements.
3. Economical approach to terminating multiple fibers simultaneously without compromising on quality.
4. Engineered for both low-loss and standard-loss single-mode and multimode installations, ensuring reliable performance across different network setups.
5. DAvailable in ruggedized round, oval, and bare ribbon configurations to withstand demanding installation conditions and environments.
6. Designed with high repeatability and exchangeability in mind, ensuring consistent performance across multiple deployments and easy maintenance.
| Overall length (L) (M) | Length of tolerance (CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB (PC) | IEC61300-3-6 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB; Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
