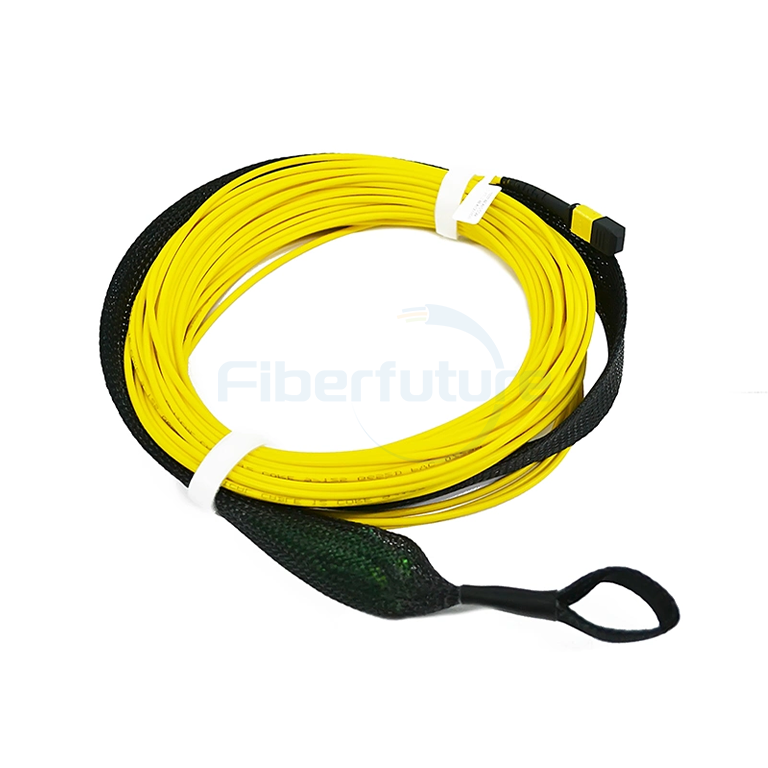

FIBERFUTURE MPO to SC/APC fiber optic patch cord integrates a pulling eye for easy installation in tight spaces and a socket for secure connections. Designed for multi-mode applications, it ensures stable 10G/40G data transmission with low loss. Its robust construction and APC angled polish offer superior durability and signal integrity.
1. Network Infrastructure: Essential for robust data communication systems within enterprises and service provider networks.
2. Access Solutions: Suitable for optical distribution networks connecting central offices to end-users.
3. Storage Networks: Ideal for Fiber Channel in storage area networks for optimized data storage and retrieval.
4. Dense Architectures: Perfect for high-density computing environments requiring efficient cable management and space-saving solutions.
Compact Design: Utilizes small form factor MTP/MPO push/pull connectors in 12 or 24 fiber configurations.
Efficient Deployment: Custom-tailored designs for specific applications, reducing waste, optimizing cable management, and speeding up installation.
Factory Termination: Ensures a scalable, quick deployment solution that boosts reliability and cuts installation time/costs.
Performance Assurance: 100% factory-tested for guaranteed optical performance and network integrity.
Space Efficiency: High-density cable design maximizes pathway utilization, improving manageability and lowering costs.
Optimized Functionality: Low-loss MPO/MTP connectors provide minimal insertion loss and high return loss for superior channel performance.
Safety & Environment: OFNP or LSZH jacket meets NFPA 262 & IEC-60332 flame ratings; RoHS & REACH SvHC compliant.
Connector Standards: MPO connector adheres to IEC-61754-7 & EIA/TIA-604-5 specifications.
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB (PC) | IEC61300-3-6 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB; Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥50dB (UPC) | |||
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D |
