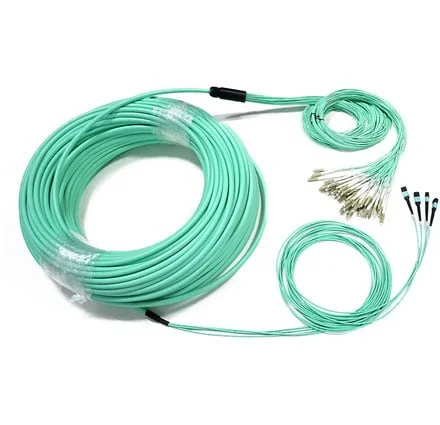

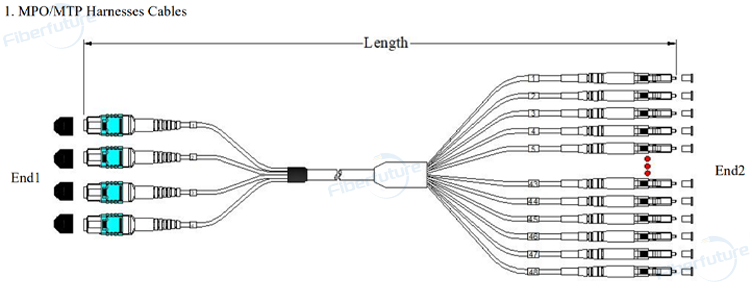

FIBERFUTURE MPO/MTP to LC harness 48 core fiber optic cables are designed for high-density data center environments, providing exceptional bandwidth and transmission rates. With 48 individually accessible cores, these cables enable streamlined connectivity between MPO/MTP and LC-equipped devices, supporting advanced network architectures and ensuring reliable, high-speed data transfer.
1.High density architectures
2.Data communication network.
3.Optical System Access network.
4.Storage area networking fiber channel.
1.40G and 100G network applications.
2.Cable Jacket material: LSZH, OFNR, OFNP available.
3.Rapid configuration and networking, reduce installation time.
4.Up to 12F, 24F, 48F, 72F, 96F, 144F, customized are available.
5.100% pre-terminated and tested in factory to ensure transfer performance.
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB (PC) | IEC61300-3-6 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB; Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 48 | 9.5±0.3 | 79 | 500 | 180 | 1000 | 300 | 20D | 10D |
