MPO MTP High Density Patch Cords with LSZH/OFNR/OFNP Jacket

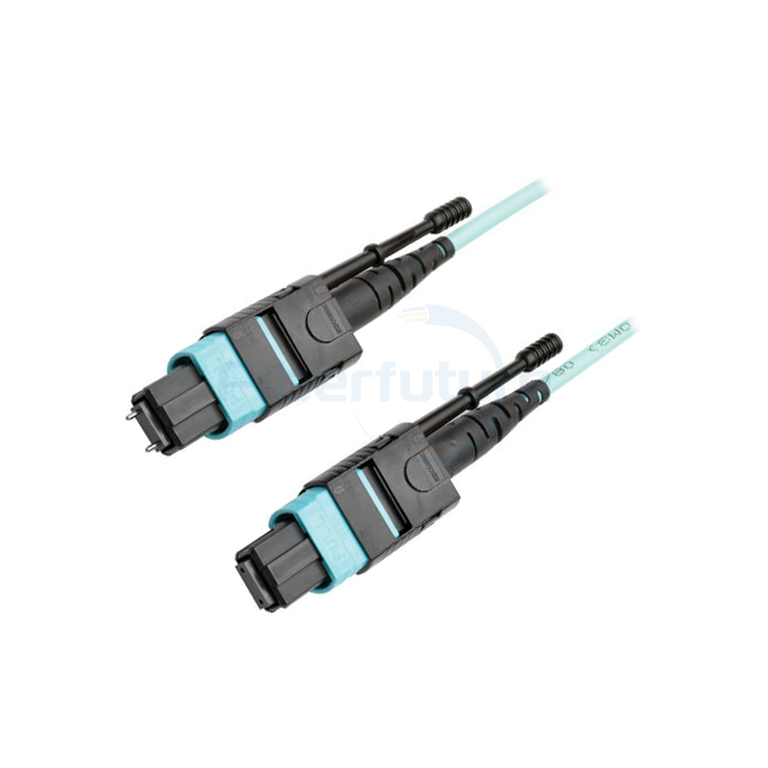

FIBERFUTURE MPO/MTP high density patch cords are precision-engineered for high-speed data centers, offering multi-fiber connectivity in compact designs. They support 40G/100G networks, utilizing advanced technology to ensure reliable, low-loss transmission. With robust construction and available in various lengths, these cords facilitate efficient, high-density cabling solutions.

Send Email

Dimensional Diagram

MPO MTP High Density Patch Cords with LSZH/OFNR/OFNP Jacket

Applications

Utilized in data communication networks for enhanced connectivity.
Integrated into optical system access networks for optimized access points.
Deployed in storage area networks for fiber channel enhancements.
Critical in the architecture of high-density systems for maximized space utilization.

Features

1. Fully pre-terminated and rigorously tested at the factory to assure superior transmission performance.
2. Enables quick deployment and network integration, significantly minimizing installation downtime.
3. Capable of handling demanding 40G and 100G network applications for high-speed connectivity.
4. Offers a selection of cable jacket materials, including LSZH, OFNR, and OFNP, catering to diverse installation needs.
5. Accommodates a wide range of fiber counts, from 12F to 144F, with custom solutions tailored to specific project requirements.

MPO&MTP Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB (PC)	IEC61300-3-6

LC/SC/FC/ST Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB; Maximum≤0.30	Typical value≤0.15dB; Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Max.Tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber Count	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
8	3.0±0.15	6.8	180	90	500	150	20D	10D
12	3.0±0.15	7	180	90	500	150	20D	10D
