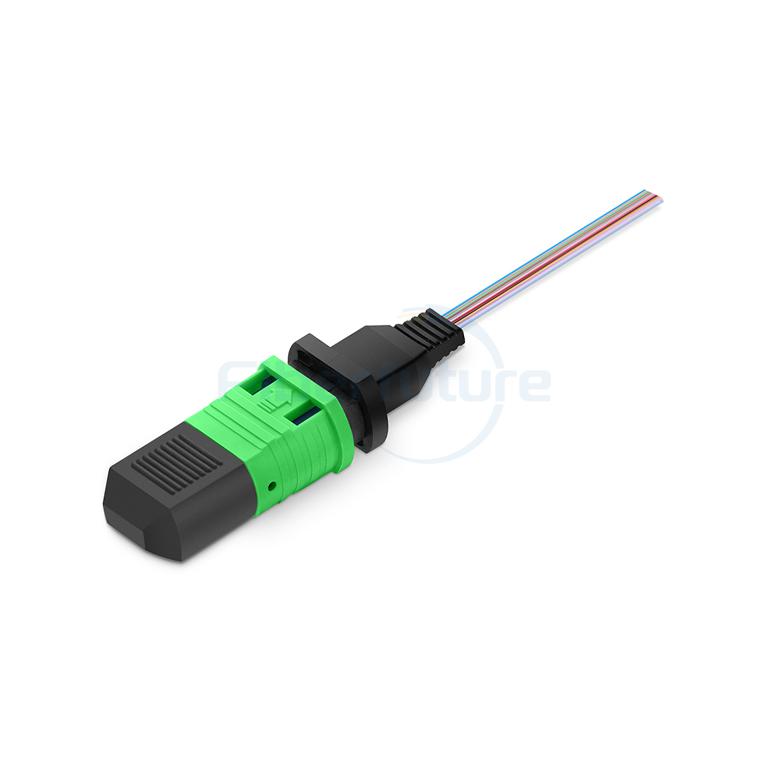

FIBERFUTURE MPO (Female) OS1/OS2 single mode flat ribbon field assembly splice-on connector is designed for quick and reliable terminations in Data Center applications. This 9/125μm fiber connector features a pre-polished ferrule, eliminating the need for on-site polishing, adhesives, and crimping, thereby reducing installation time and errors. The pinless, aqua-colored connector includes all necessary components for easy field assembly and ensures standard insertion loss, supporting rapid deployment of custom fiber links and enhancing flexibility for network repairs and connectivity restoration.
| Connector Type | |
|---|---|
| Fiber Type |
LAN/WAN/FTTx Applications
Equipment Termination
Field Repair/Replacement
Equipment Test Leads
Pre-polished ferrule reduces termination time.
Fusion splice ensures precise field installation.
Heat sleeve provides reliable termination protection.
Field-customizable MPO polarity meets specific requirements.
Flat ribbon design facilitates efficient cable trunk restoration and repair.

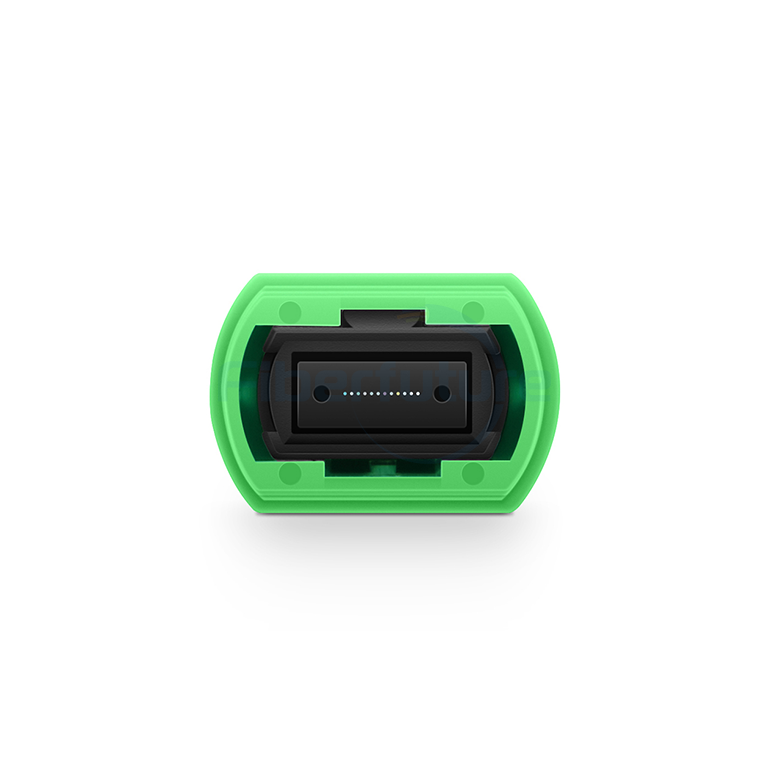

| Connector Type | MPO Female (Pinless) |
Polish Type
|
APC |
| Number of Fibers | 12 |
Fiber Type
|
OS1/OS2
|
| Insertion Loss | 0.75dB Max, 0.35dB Typ. |
Return Loss
|
60dB Min.
|
| Housing Color | Green |
Boot Color
|
Black |
| Cable Type |
Flat Ribbon
|
Temperature
|
Storage 0 to 42°C (32 to 108℉) Operating 0 to 60°C (32 to 140℉) |
