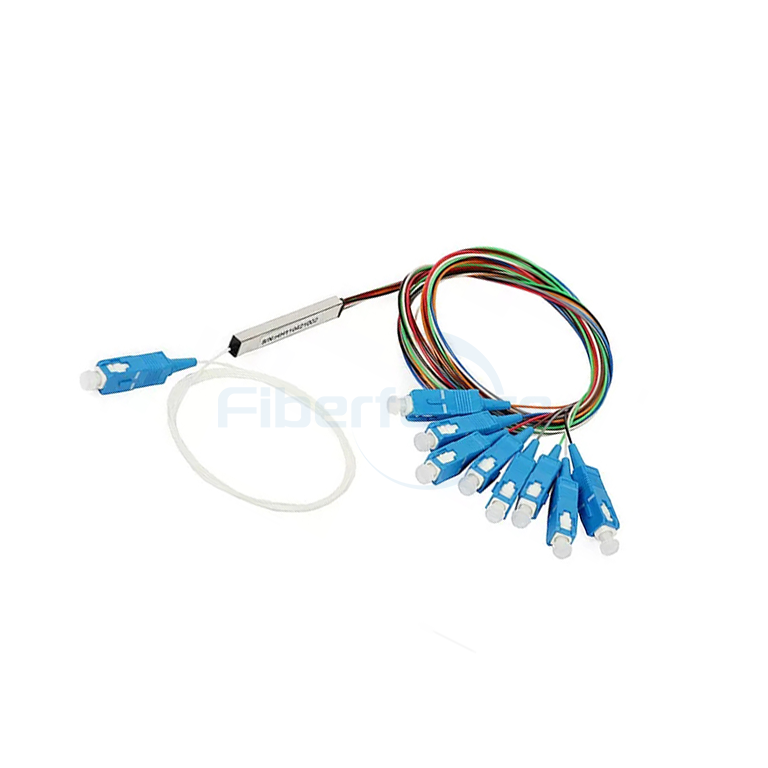

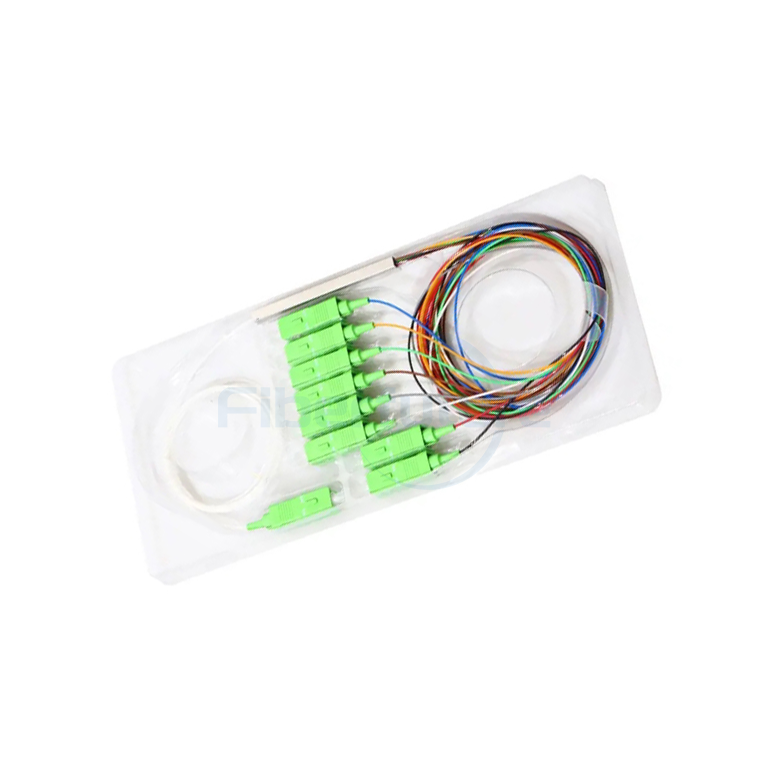

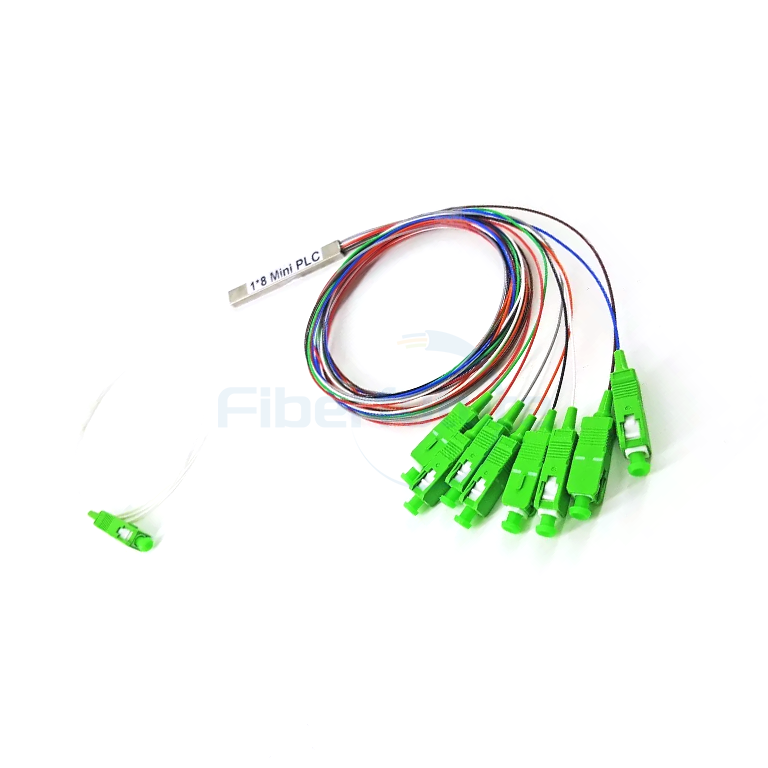

FIBERFUTURE mini 1x8 PLC splitter features SC APC connectors, ensuring low insertion loss and high reliability. Compact and stable, it's perfect for FTTx, LAN, and CATV systems, offering uniform power distribution in fiber optic networks.
| Model | Output Tube Diameter | Inlet/Outlet Fiber Length | Pipe Sizes |
| 1*2 ABS Box Splitter | 0.25mm/0.9mm | 1m | 4mm*7mm*50mm |
| 1*4 ABS Box Splitter | 0.25mm/0.9mm | 1m | 4mm*7mm*50mm |
| 1*8 ABS Box Splitter | 0.25mm/0.9mm | 1m | 4mm*7mm*60mm |
| 2*16 ABS Box Splitter | 0.25mm/0.9mm | 1m | 4mm*12mm*60mm |
| 2*32 ABS Box Splitter | 0.25mm/0.9mm | 1m | 6mm*20mm*80mm |
| 2*64 ABS Box Splitter | 0.25mm/0.9mm | 1m | 6mm*40mm*100mm |
| Projects | Parameter |
| Operating Temperature | -25°C ~ +40°C |
| Storage Temperature | -25°C ~ +55°C |
| Relative Humidity | ≤85% (+30°C) |
| Air Pressure | 70 KPa ~ 106 KPa |
| Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength (nm) | 1260-1650 | ||||||
| Insertion Loss (dB) | Max | 4.1 | 7.5 | 10.7 | 13.9 | 17.2 | 20.6 |
| Loss uniformity (dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | ≥55 | ||||||
| Fiber Type | SMF-28E or Customer Designation | ||||||
| Wavelength Dependent Loss (dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| Temperature Correlation Loss -40～85℃ (dB) | Typical Value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Working Temperature (℃) | -40～85℃ | ||||||
| Storage Temperature (℃) | |||||||
| Type | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Operating Wavelength (nm) | 1260-1650 | ||||||
| Insertion Loss (dB) | Max | 4.3 | 7.8 | 11.1 | 14.4 | 17.7 | 20.7 |
| Loss uniformity (dB) | Max | 0.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Polarization Dependent Loss (dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | ≥55 | ||||||
| Fiber Type | SMF-28E or Customer Designation | ||||||
| Wavelength Dependent Loss (dB) | Max | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| Temperature Correlation Loss -40～85℃ (dB) | Typical Value | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Working Temperature (℃) | -40～85℃ | ||||||
| Storage Temperature (℃) | |||||||
