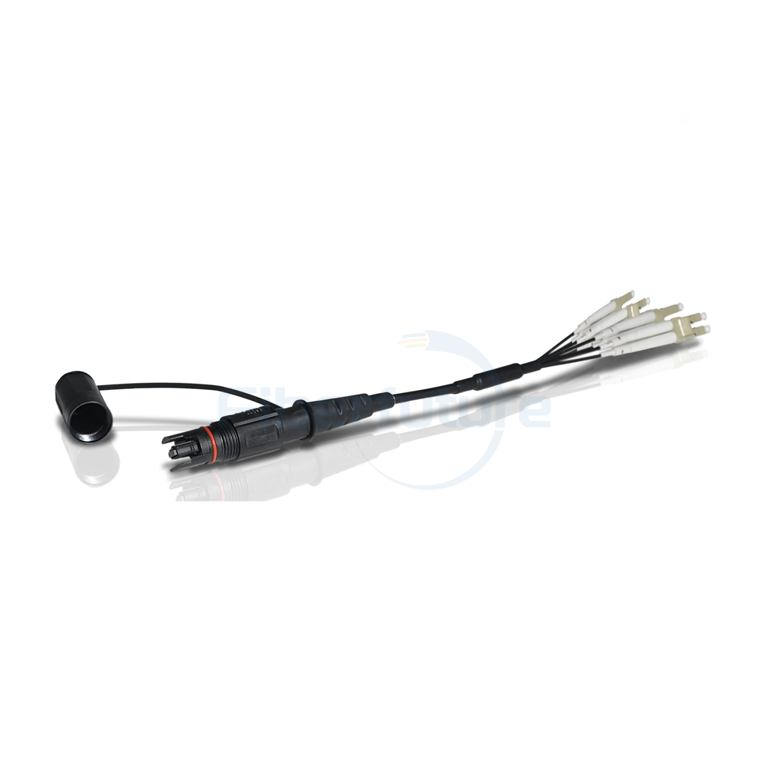

Mini IP MPO MTP Fiber Optic Patch Cable REACH Materials Compliant

FIBERFUTURE mini IP MPO MTP fiber optic patch cable is REACH materials compliant, featuring IP68-rated water and dust protection. It supports low insertion loss and high attenuation, with all-weather and UV-resistant materials, meeting IEC 61754-7 mechanical performance standards.

Send Email

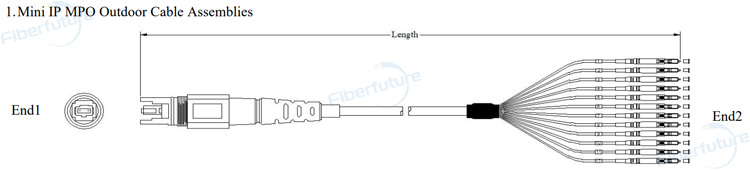

Dimensional Diagram

FTTA Outdoor IP68 Waterproof Mini IP LC Fiber Optic Patch Cord-copy

Applications

Versatile Outdoor Application

Specialized Connectivity Solution: essential link between the distribution box and the Remote Radio Head (RRH)

Ideal Deployment in RRH Cell Towers: deployment within Remote Radio Head (RRH) cell tower applications

Features

IP68 water and dust protection.
Low insertion loss and added loss.
RoHS and REACH materials compliant.
Cost effective solution for in house termination.
Water proof, dust proof and corrosion resistant.
The material in the jumpel cable are all-weather and UV-resistant.

Parameters

Item	Parameter
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB
Return loss	≥50dB(PC) ≥60dB(APC)	≥55dB(PC) ≥65dB(APC)	≥30dB(PC)	≥30dB(PC)
Durability	500 times a plug
Operation Temperature	-40 to + 85℃

Connector Types

Type	Reference	Note
MPO	IEC 61754-7	Single-mode	APC: Black connectors APC: Black connectors
		Multimode	PC: Black connectors
MPT	IEC 61754-7	Single-mode	APC: Black connectors APC: Black connectors
		Multimode	PC: Black connectors
