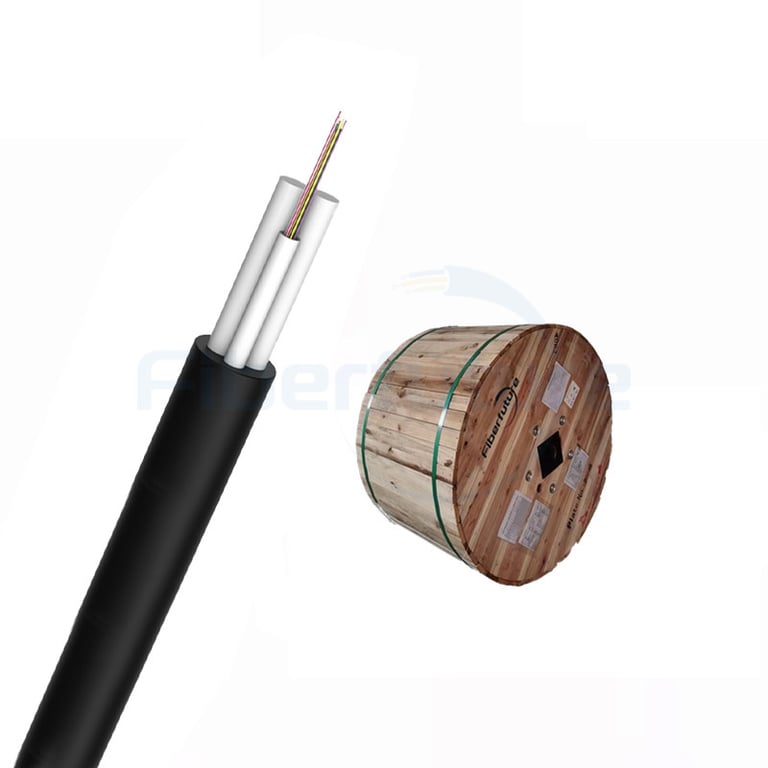

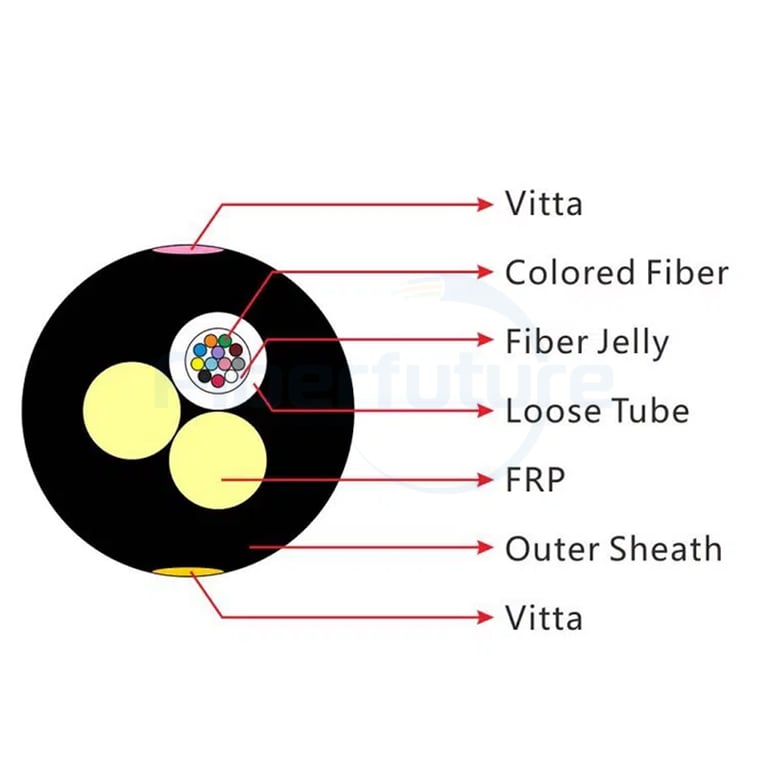

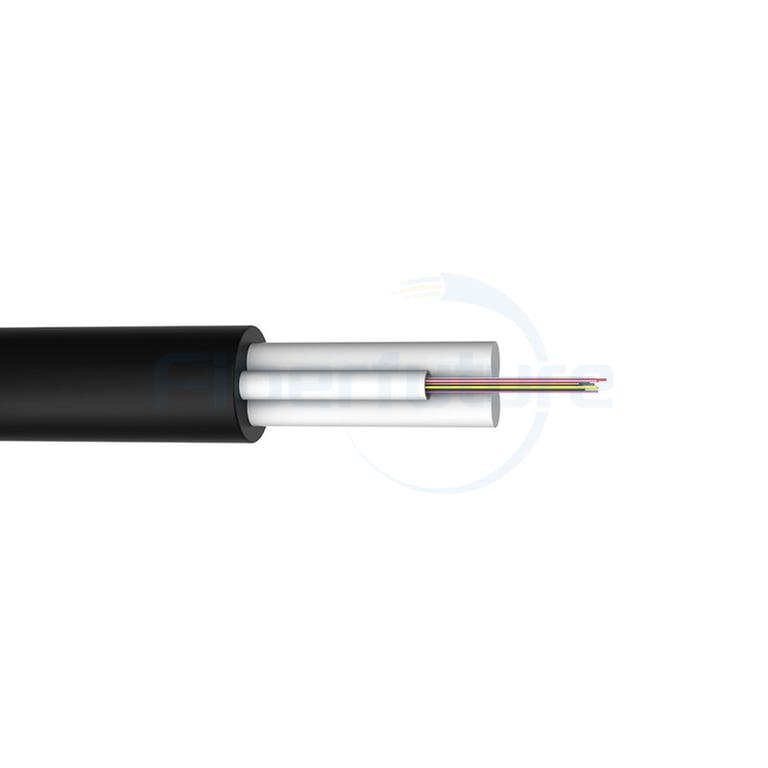

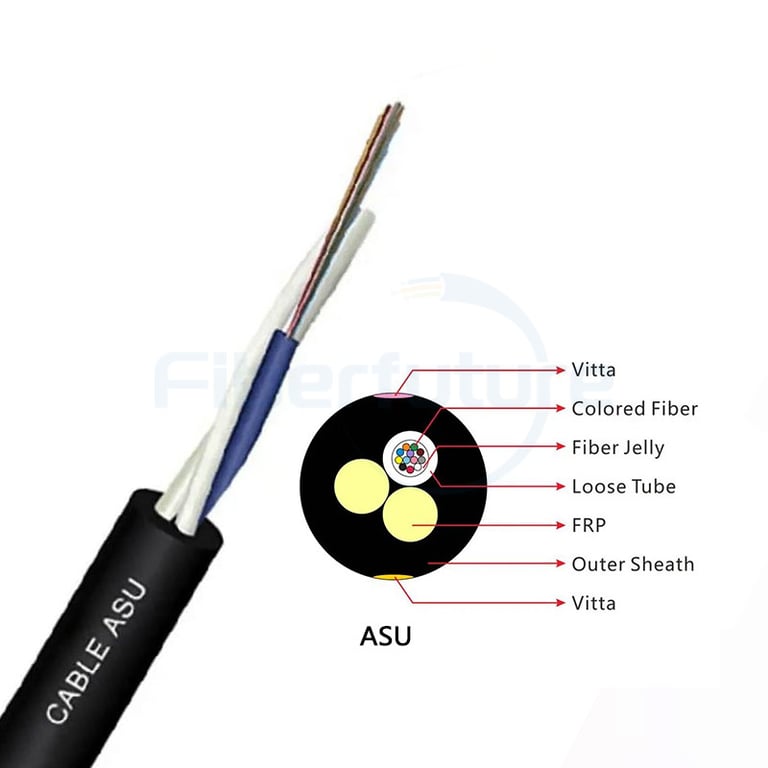

FIBERFUTURE® Anatel certified ASU Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
We can customize the number of cores of ASU fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® mini ADSS cable is 2, 4, 6, 12, Up to 24 cores.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Span | |
| NESC |
Aerial, Outdoor
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
If request Black and White tracer shall be applied to identify the buffer tube
|
Type |
Diameter |
Weight |
Tensile strength |
Crush |
Bending Radius |
||||||||||||||||||||
|
ASU-80 |
6.8(2.0tube) |
45 |
300/600 |
300/600 |
10D/20D |
||||||||||||||||||||
|
ASU-120 |
7.8(2.5tube) |
60 |
300/600 |
300/600 |
10D/20D |
||||||||||||||||||||
Transport/storage temperature: -20℃~70℃
