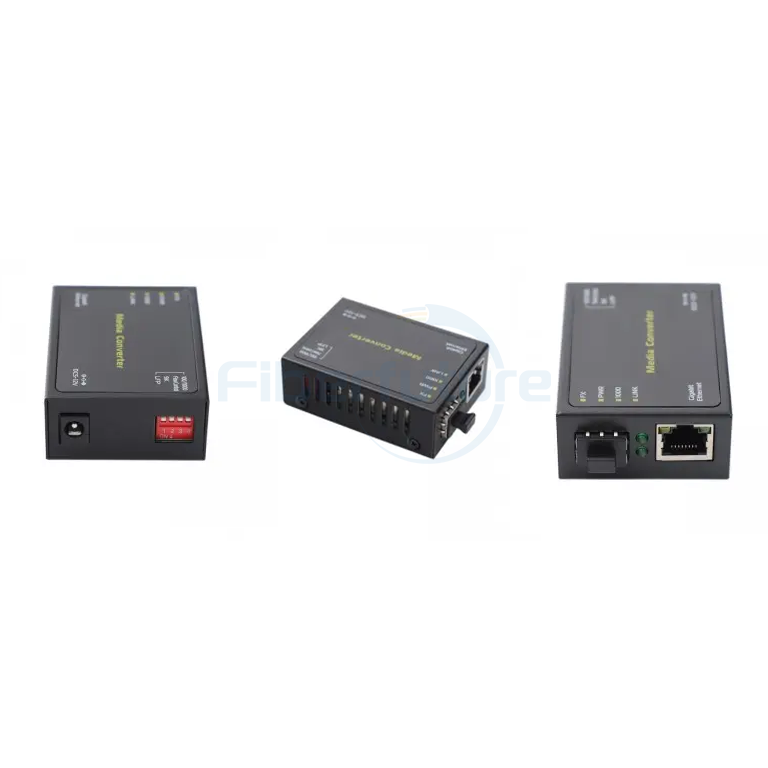

FIBERFUTURE MINI 10/100/1000M SC fiber media converter is a compact device designed to seamlessly bridge copper Ethernet networks with fiber optic infrastructures. Supporting auto-negotiation, it ensures robust connectivity at speeds up to 1Gbps, making it perfect for high-speed data transmission in small to medium-sized network environments. Equipped with an SC connector, it offers flexible installation options and reliable performance.
Gigabit Fiber Media Converters adeptly transform Ethernet signals between 10/100/1000M UTP (TX) and 100/1000M fiber interfaces (FX), extending conventional gigabit Ethernet over fiber to distances up to 100km. Leveraging advanced Gigabit ICs, these converters deliver superior performance and reliability. Dual LED indicators provide comprehensive status monitoring, simplifying troubleshooting for users. They can operate independently or be mounted in a 14-slot rack for centralized management in network hubs, optimizing space and enhancing functionality.
Auto negotiation for UTP ports, adjusting speed (10/100/1000M) and duplex mode automatically.
MDI/MDI-X auto crossover capability on UTP ports.
Multimode fiber reaches up to 224m/550m; singlemode extends to 100km.
Handles large Ethernet packets up to 9000 bytes.
Flow control supported.
Internal power supply integrated.
Configuration via DIP switch.
| Technical Specifications | Details |
| Operating Standards | IEEE802.3z/AB, 10/100/1000Base-T, 100/1000Base-SX/LX/HX |
| MAC Address Table | 4K |
| Data Buffer | 256K |
| Connectors | UTP: RJ-45 (10/100/1000Mbps) |
| Fiber: LC/SC (100/1000Mbps) | |
| Cables | UTP cable: Cat 5e or Cat 6 (Max distance: 100m) |
| Fiber: Multimode: 50/125, 62.5/125μm (Max distance: 550/224m) | |
| Singlemode: 8.3/125, 8.7/125, 9/125μm (Max distance: 100km) | |
| Flow Control | Full Duplex: IEEE802.3x |
| Half Duplex: Back pressure | |
| Power | AC: 220V (170-260V) 50Hz; DC: 5~12V |
| Ambient Temperature | 0°C ～ +50°C |
| Storage Temperature | -20°C ～ +70°C |
| Humidity | 5% ～ 90% |
| Dimensions (External Power) | 24mm (H) x 50mm (W) x 69mm (L) |
| Switch 1 | Function | Switch | Function | |
| Switch 1 | OFF | Disable Link Fault Pass-Through | ON | Enable Link Fault Pass-Through |
| Switch 2 | OFF | Switch Mode | ON | Converter Mode (9k |
| Switch 3 | OFF | Flow Control Disable | ON | Flow Control Enable |
| Switch 4 | OFF | FX Speed 1000Mbp | ON | FX Speed 100Mbps |
