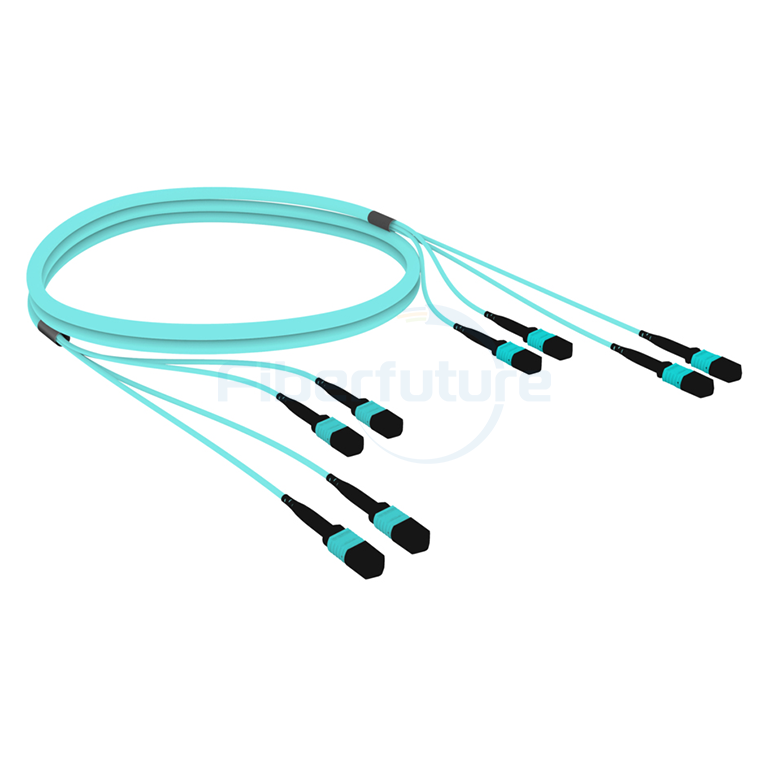

LZSH MPO to MPO Fiber Trunk Cable Method A B C

FIBERFUTURE LZSH MPO to MPO Fiber Trunk Cable is a low smoke, zero halogen cable designed for high-density data center applications, offering reliable 10G-100G multi-channel connectivity with push-pull MPO connectors for easy management and fast installation.

Send Email

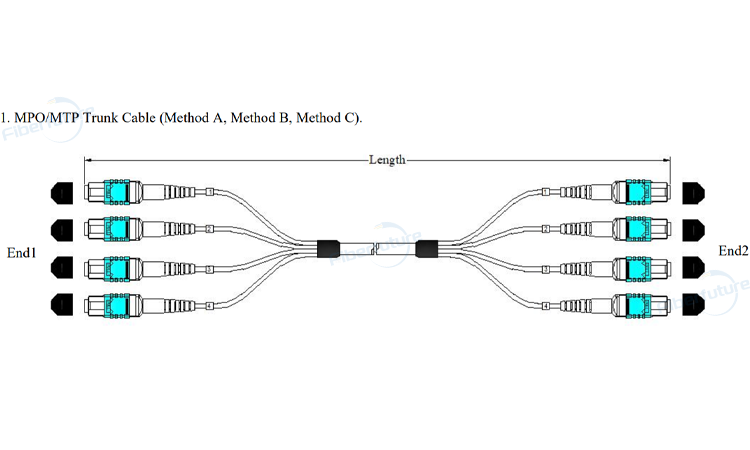

Dimensional Diagram

LZSH MPO to MPO Fiber Trunk Cable Method A B C

Applications

Data Communication Network: A system that facilitates the transfer of information between devices or computers using various communication protocols and media.
Optical System Access Network: A network architecture that utilizes optical fibers to provide high-speed, reliable, and efficient access to telecommunication services and data transmission.
Storage Area Networking Fiber Channel: A high-speed network technology specifically designed for connecting storage devices like hard drives and tape libraries to servers, enabling efficient data transfer and storage management.
High-Density Architectures: Design methodologies that incorporate compact, space-efficient components and systems to maximize performance and capacity within a limited physical footprint.

Features

Guaranteed performance: Each product is fully pre-terminated and rigorously tested in the factory to ensure optimal data transfer capabilities.
Quick and easy setup: Features a streamlined configuration and networking process, significantly reducing installation time and effort.
High-speed compatibility: Compatible with both 40G and 100G network applications, enabling seamless integration into modern, high-bandwidth networks.
Versatile cable jacket options: Available in LSZH, OFNR, and OFNP materials, offering flexibility to suit various environmental and safety requirements.
Scalable and customizable: Supports a range of fiber counts up to 144F, with the option for customized products to meet specific project needs.

Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB(PC)	IEC61300-3-6

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Max.Tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber Count	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
48	9.5±0.3	79	500	180	1000	300	20D	10D
