Low Insertion Loss FC Fiber Optic Patch Cord

FIBERFUTURE FC fiber patch cord is a fiber optic cable with FC type connector, which is used for short-distance data transmission, such as the connection between electrical signals and network devices. It has high bandwidth and low attenuation characteristics, supports single-mode or multi-mode optical fiber, and is suitable for data centers, local area networks and other environments.

Send Email

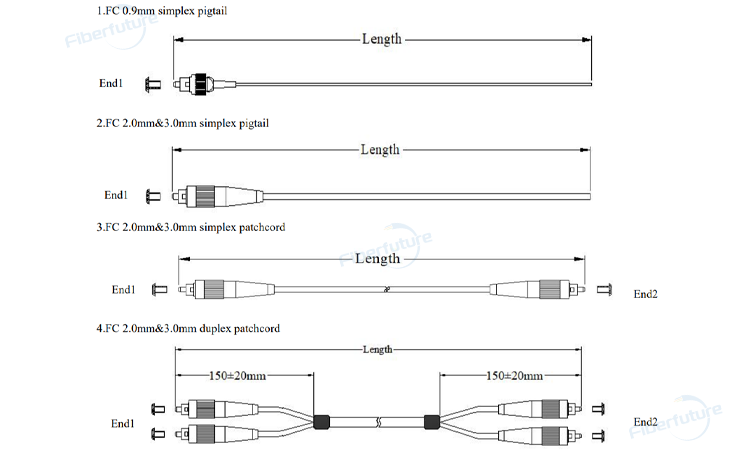

Dimensional Diagram

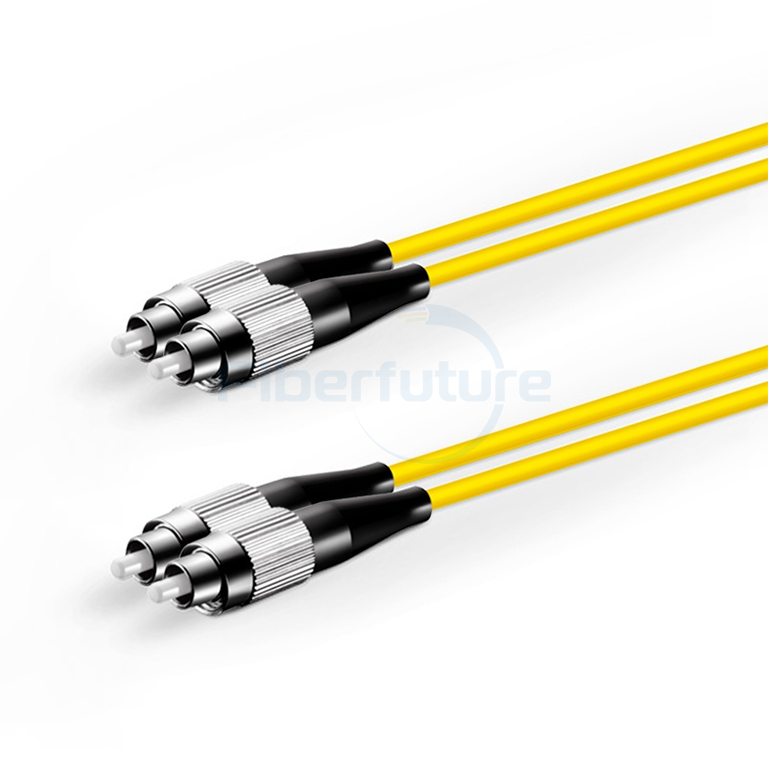

Low Insertion Loss FC Fiber Optic Patch Cord

Applications

Engineering design and implementation of optical fiber communication systems.
Deployment and maintenance of fiber optic networks for data transmission.
Installation and operation of Fiber CATV (Cable Television) infrastructures.
Conducting various tests involving optical technologies and equipment.

Characteristics

Offers a wide variety of styles with comprehensive connector options.
Ensures low insertion and additional loss for optimal signal integrity.
Features a high level of attenuation to minimize unwanted signal leakage.
Boasts high back reflection loss with compact and lightweight design.
Exceeds IEC and Telcordia standards for end-face geometry and quality.
Incorporates LSZH, OFNP, and OFNR rated cable jackets for safety and performance.
Adheres to mechanical performance benchmarks as per IEC 61754-13 standard.
Complies with environmental regulations including RoHS and REACH directives for material usage.

Jumper Tolerance Requirement

Overall Length (L) (M)	Length of Tolerance (cm)

0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
