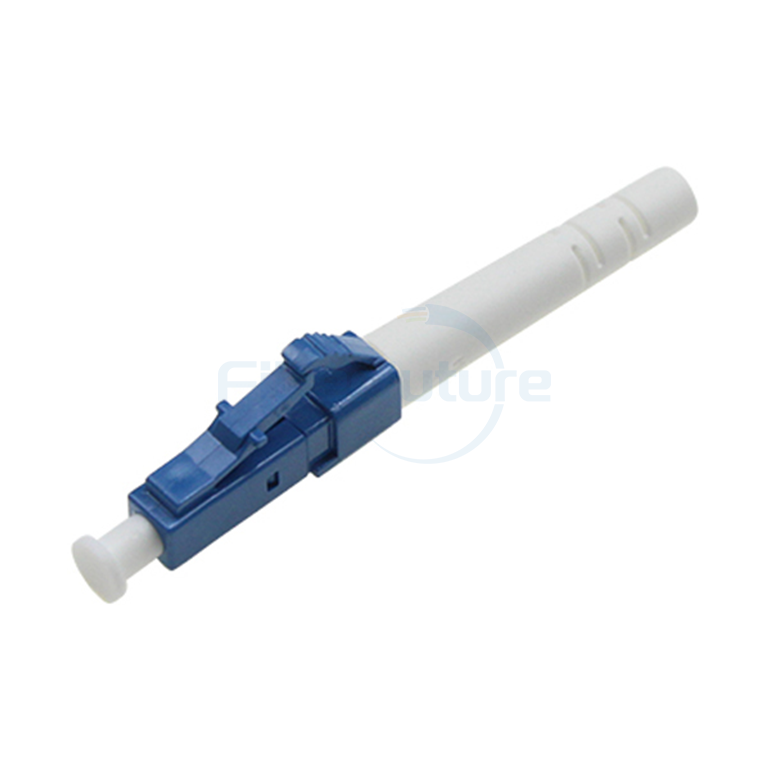

LC/UPC SM Connector for Fiber CATV Engineering

FIBERFUTURE LC/UPC single-mode connector, with small size LC interface and micro-convex grinding technology (UPC), provides low reflection connection and is suitable for high-density wiring environment. It ensures excellent optical performance, including low insertion loss and high return loss, and is an ideal choice for stable and reliable signal transmission in data centers, local area networks and other high-speed optical fiber communication systems.

Send Email

Applications

Fiber communication systems engineering.
Fiber optic data network construction.
Fiber CATV system deployment.
Optical technology experimental studies.

Features

Wide selection of styles, full interface coverage.
Low insertion and added loss.
Effective attenuation.
High back loss, compact, lightweight.
Exceptional stability and reliability.
IEC 874-20 mechanical compliance.

Specifications

Applicable connector type	LC/UPC
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15, maximum≤0.30
Return Loss	≥50dB
Insert core diameter	∮1.25mm
Insert core parameter	Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm
Durability	1000 times plug
Suitable for optical cable diameter	∮2.0mm, ∮3.0mm
Working temperature	-20℃to+70℃
Storage temperature	-40℃to+85℃
