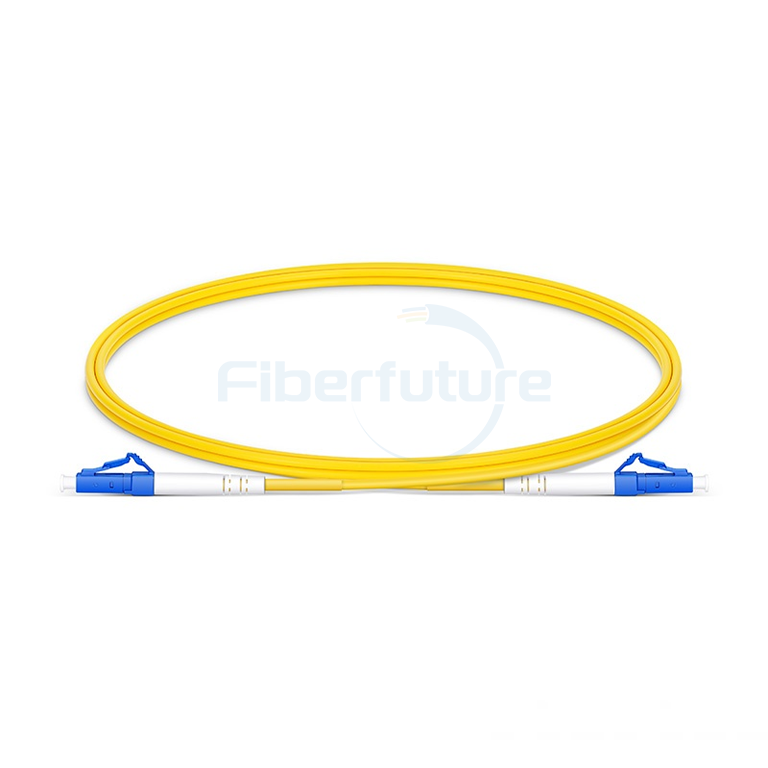

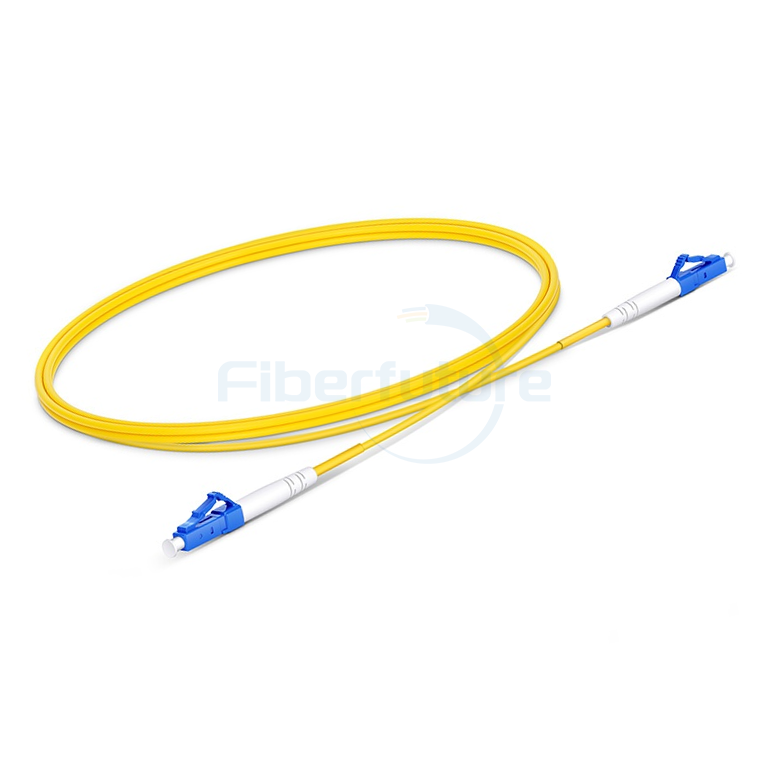

The 9/125μm OS2 single-mode, bend-insensitive fiber optic cable offers reduced signal loss under bending or twisting conditions, surpassing conventional cables. This feature streamlines installation and maintenance processes while optimizing space utilization in high-density cabling environments such as data centers, corporate networks, telecommunications closets, server clusters, cloud storage infrastructures, and pre-terminated cassette systems within primary, secondary, and equipment distribution zones.
Deployment in optical fiber communication infrastructure projects.
Integration into fiber-based data communication networks.
Utilization in Fiber CATV (Cable Television) system installations.
Suitability for various optical technology measurement and experimentation scenarios.
Ideal for establishing robust 1G, 10G, 25G, 40G, 100G, and 400G Ethernet links, this OS2 single-mode fiber cable facilitates data transmission over distances up to 10 kilometers at 1310nm wavelength, and extends to 40 kilometers at 1550nm, making it a versatile choice for long-range connectivity solutions.
Riser-rated (OFNR) Jacket: Fire-resistant cladding designed to inhibit flame spread in vertical shafts and risers within building structures.

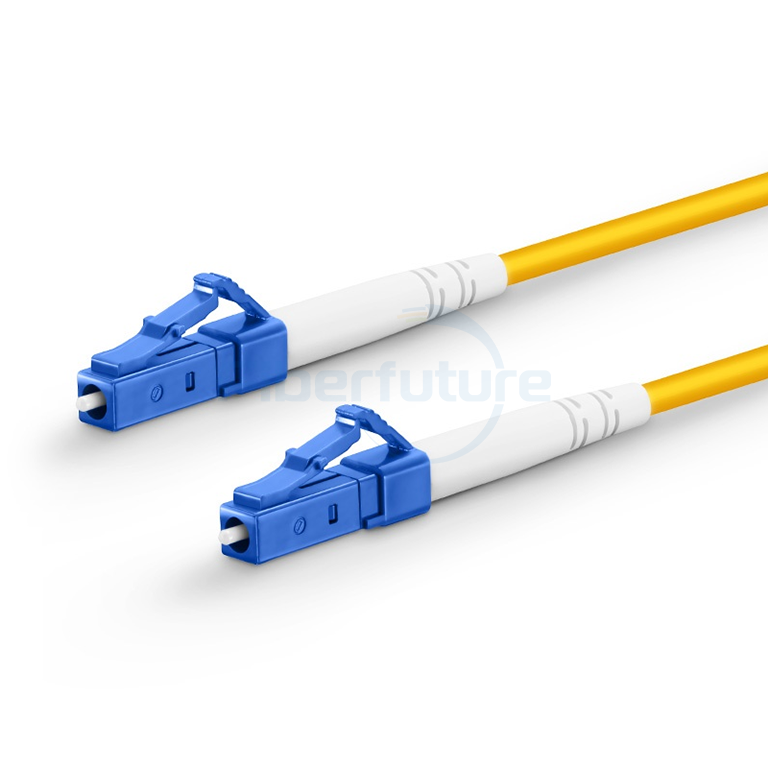

Precision-engineered Zirconia ferrules: Guarantee minimal signal loss by providing a superior connection interface for optimal optical performance.
G.657.A1 Bend-insensitive Fiber: Offers resilience against bending with a minimum radius of 10mm, ensuring reliable signal transmission even in tight spaces.
Rigorous Optical Testing: Validates network integrity and efficiency, confirming the cable's capability to meet performance standards.
Adherence to TIA-604 (FOCIS) Compliance: Ensures compatibility and conformance with industry-established guidelines for fiber optic connectivity systems.
|

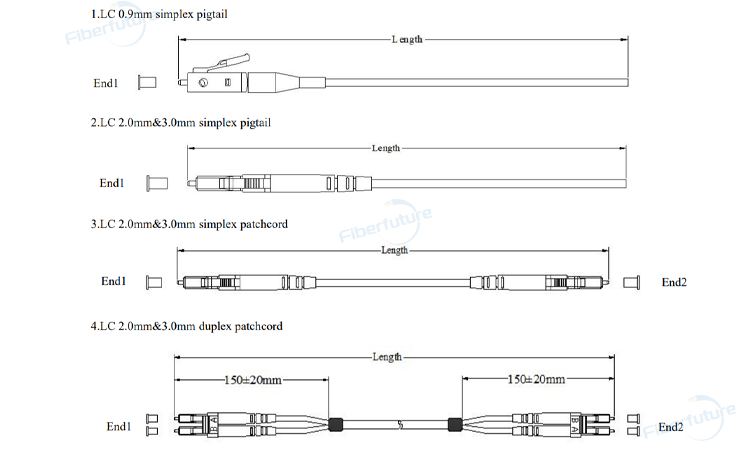

Overall Length (L) (M)
|
Length of Tolerance (cm) | |
| 0＜L≤20 | +10/-0 | |
| 20＜L≤40 | +15/-0 | |
| L＞40 | +0.5%L/-0 | |
|
Item
|
Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
