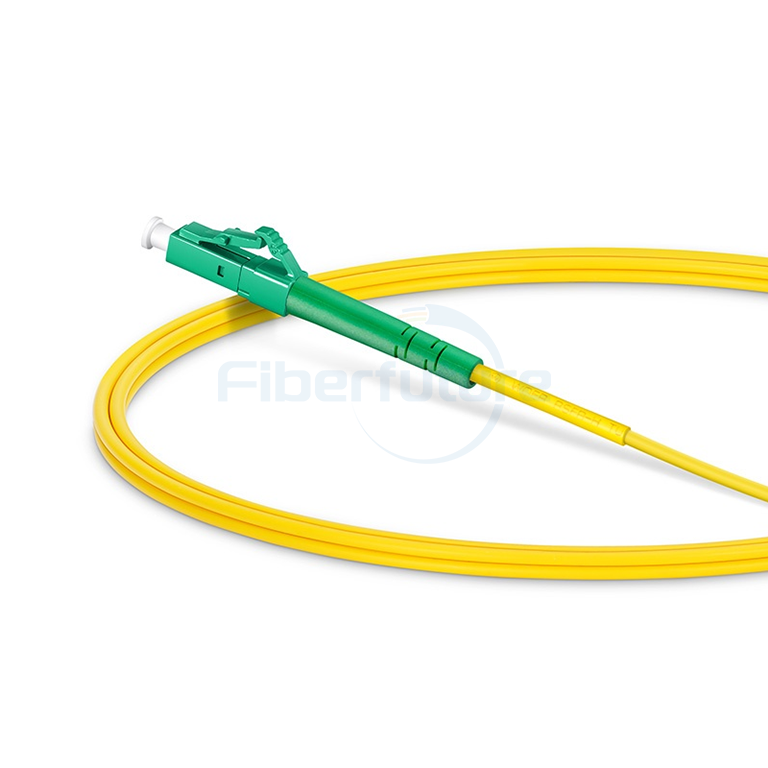

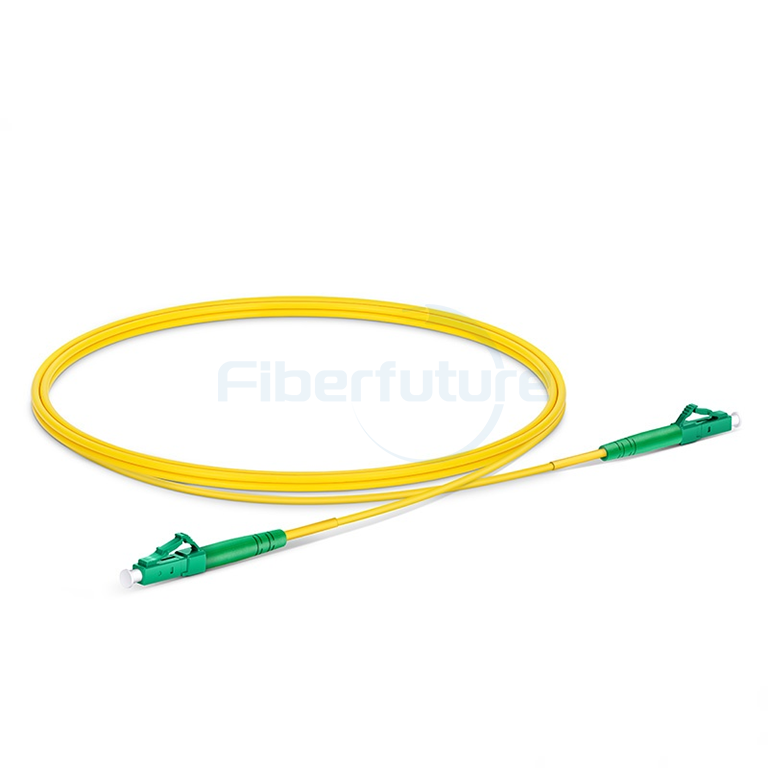

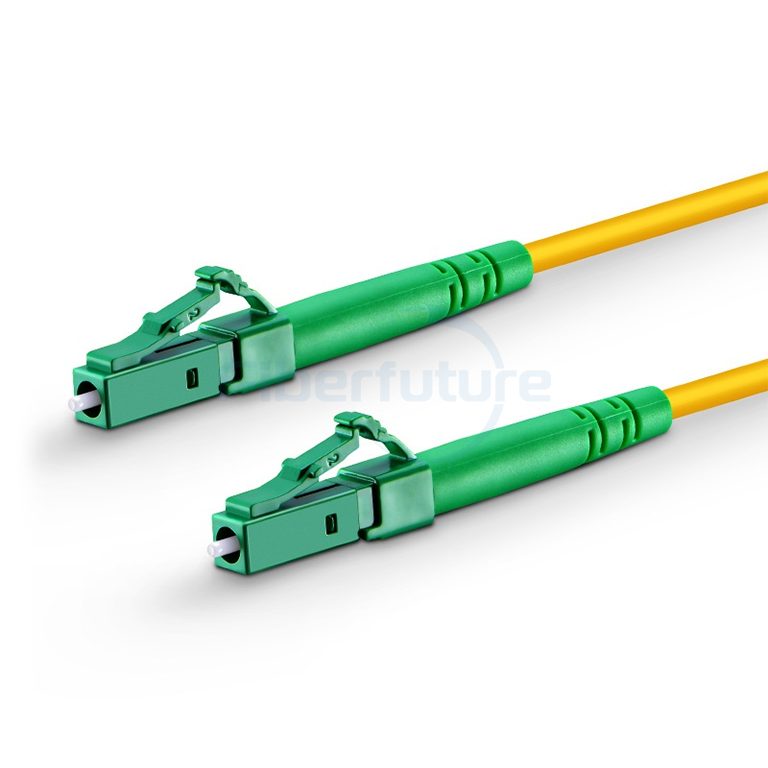

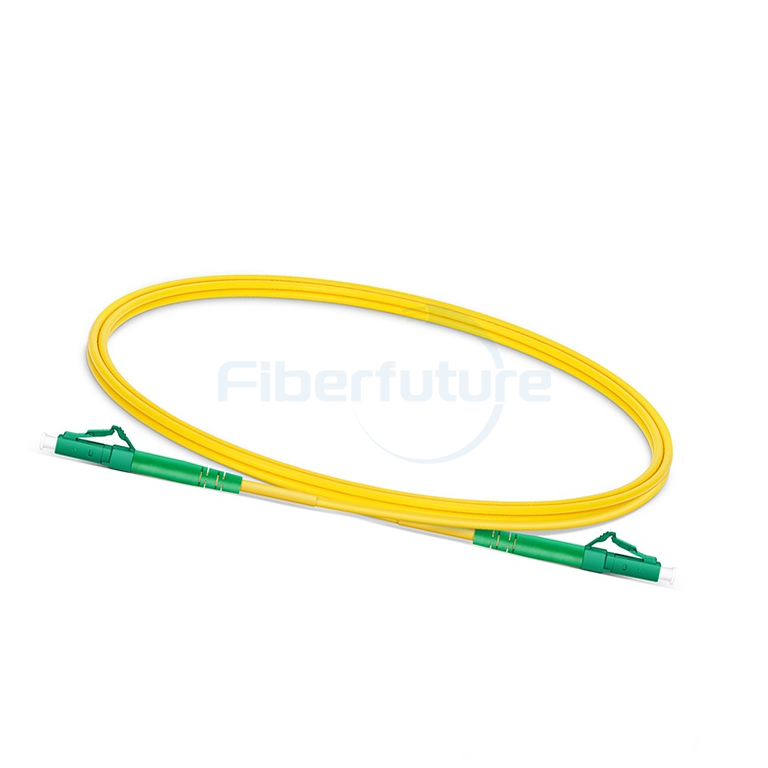

FIBERFUTURE LC APC fiber optic patch cords use LC connectors with angle polished connectors (APC), which provide low reflectivity and reduce signal loss. They are suitable for high-density wiring and are commonly used for precise fiber optic connections in data centers, local area networks, and telecommunication applications.
Fiber Optic Communication System Engineering: Focuses on the design, implementation and optimization of fiber optic communication systems.
Fiber Optic Data Communication Network: Uses fiber optic technology to build an efficient data communication network.
Fiber Optic CATV Engineering: Integrates fiber optic technology into cable TV systems to provide excellent audio and video quality and value-added services.
Other Optical Technology Testing: Covers performance testing and verification of optical components, materials and systems.
Various styles, complete interface.
Low insertion loss and additional loss.
High attenuation.
High return loss, small size, light weight.
End face geometry and quality better than IEC and Telcordia standards.
LSZH, OFNP, OFNR cable jacket.
Mechanical properties meet IEC 61754-20 standards.
RoHS and REACH material standards.
| Overall length (L) (M) | Length of tolerance (CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
