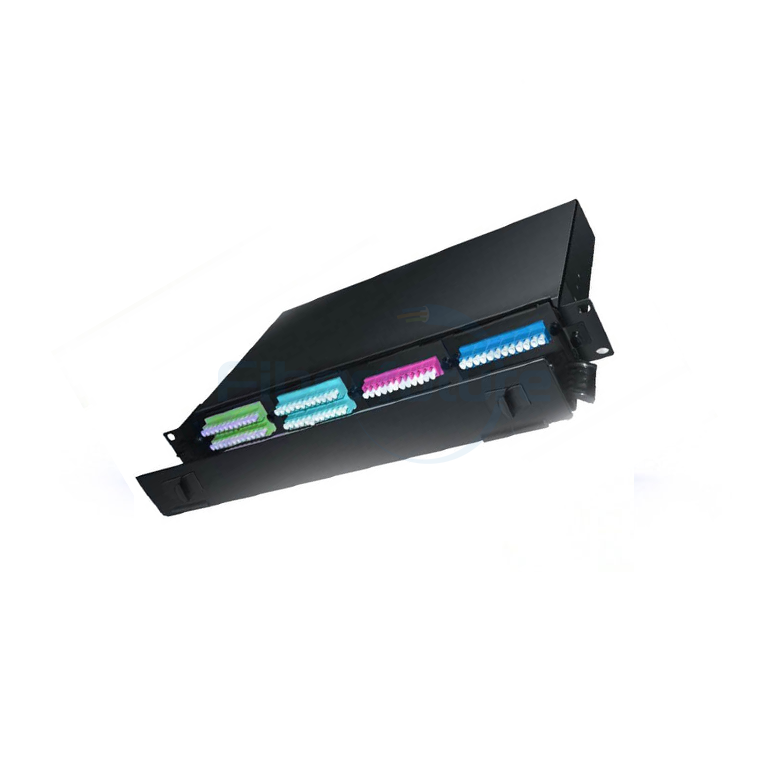

FIBERFUTURE MPO Patch Panel is engineered for high-density cable management in data centers and telecom central offices, offering an optimized solution for space efficiency. This panel supports up to: 4 MPO cassettes in a compact 1U rack space, 8 cassettes in a 2U configuration, And up to 16 cassettes in a 4U layout. Each MPO cassette comes equipped with either 12 or 24 LC connectors, enabling a maximum of: 96 ports within a 1U frame, 192 ports in a 2U setup, And a substantial 384 ports in a 4U enclosure. This design maximizes port density while facilitating easy access and organization for high-speed connectivity applications.
Telecommunication Distribution Networks
Fiber Optic Infrastructure for Residential Areas (FTTH)
Local Area Networks / Wide Area Networks (LAN/WAN)
Cable Television Systems (CATV)
Designed to fit seamlessly into 19-inch standard racks.
Accommodates both ribbon and individual fiber cables.
A space-saving, compact build to optimize rack space.
Plates are front-marked for intuitive identification and ease of use.
Adheres to standard dimensions, boasts a lightweight profile, and has a well-thought-out structure.
Facilitates efficient management and operational convenience.
Modular architecture allows integration with various module boxes, compatible with MPO-LC Type Distribution Boxes.
Enables the division of MPO ribbon multi-core fibers into several LC connectors, achieving parallel MPO-LC conversion.
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Air pressure | 70Kpa~106Kpa |
| Color | Black |
| Model | MPO-LC Type Cassette Quantity | Height | Dimension(LxWxH) |
| MPO-LC | 4 | 1U | 482mmx350mmx44.5mm |
| MPO-LC | 8 | 2U | 482mmx350mmx88.9mm |
| MPO-LC | 16 | 4U | 482mmx350mmx177.8mm |
