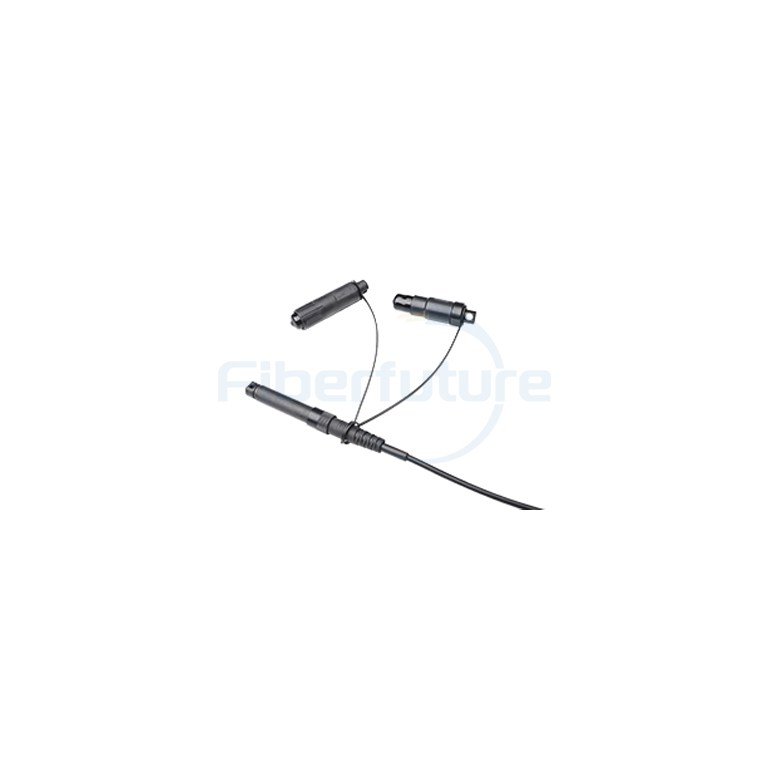

IP68 Waterproof TW (SC/APC) Connectors PC Housing

FIBERFUTURE TW cable assemblies offer a cost-effective and efficient method for deploying optical fiber in outside plant distribution networks, significantly faster than traditional field installations. These assemblies feature a simple, one-step connection system combining push-pull insertion and a nut-style mechanical latch for quick installation. They provide good performance when mated with Optitap and Mini (SC/APC) adapters and are suitable for armored or non-armored cables.

Send Email

Applications

Remote Radio Units (RRU/RRH)

FTTA, FTTH equipment

Other outdoor systems

Standards

Parameter		Specification
Pull	FRP (Pull≥50N)	IEC 61300-2-4
	Steel wire (Pull≥150N)
	Kevlar (Pull≥80N)
Vibration		IEC 61300-2-1
Impact		IEC 61300-2-12
Temperature		IEC 61300-2-22
Humidity		IEC 61300-2-22

Specifications

Item	Parameter
Insertion Loss	≤0.3 dB
Return Loss	Min. 60 dB
Repeatability	≤0.2 dB
Interchangeability	≤0.2 dB
Durability	1000 Cycles
Operating Temperature	-40 °C ~ +85 °C
Storage Temperature	-40 °C ~ +85 °C
Installation Temperature	-40 °C ~ +85 °C
Waterproofing Grade	IP68 (1M, 1 hour)
Cable Diameter Range	∅2.0mm - ∅5.0mm; 2x3mm Butterfly; 2x5mm Butterfly; 4x7mm Flat
Housing Material	PC
Boot Material	TPV
