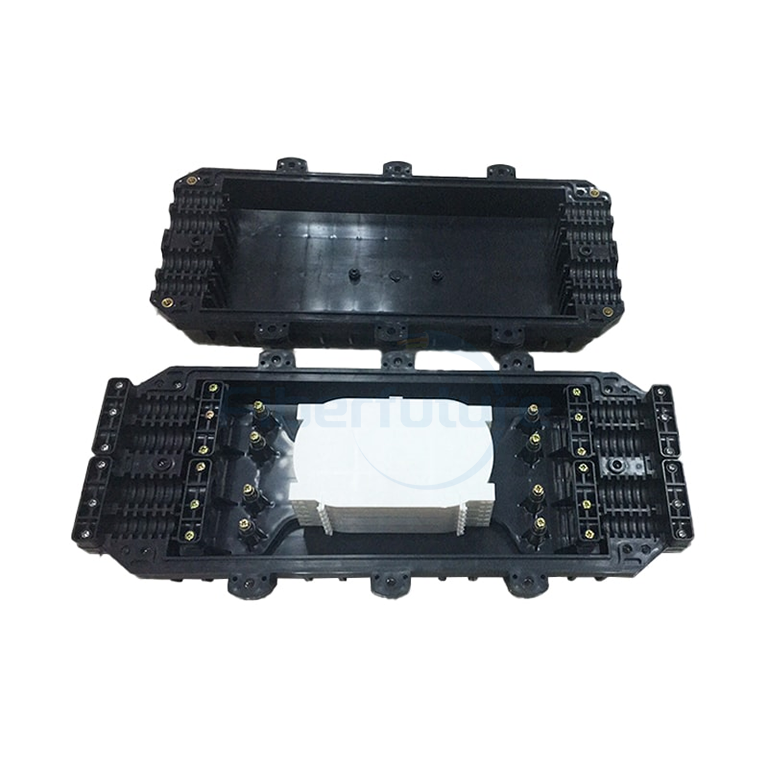

Horizontal Type Fiber Optic Closure for Aerial, Duct and Direct Buried Applications

FIBERFUTURE horizontal-type fiber optic closure is suitable for aerial, duct, and direct buried applications. Designed to ensure reliable protection and stability for fiber connections, it offers excellent water-tight and dust-proof performance, withstands various outdoor environmental challenges, and is easy to install and maintain, making it an ideal choice for fiber network deployment.

Send Email

Features

Complies with YD/T814-1996 regulations.
Shell made from high-quality ABS engineering plastic, offering anti-aging, corrosion-resistance, and lightning protection.
Mechanical sealing structure with reusable sealing material.
Features 4-in/4-out cable ports with a maximum capacity of 192 cores (single fiber).
Offers three cable gland options (φ12.5, φ17, φ20) for customizable sealing reliability.
Includes an overlay structure for splice trays and an insulated grounding device for enhanced flexibility and safety.
External components and fastening parts are made of stainless steel for durability and reusability.

Applications

Arial

Duct

Direct Buried

Specifications

Specification	Value
Size (mm)	515 × 230 × 125
Weight	2.8 kg
Fiber radius of curvature	≥ 40 mm
Splice tray additional losses	≤ 0.01 dB
Storage fiber length	≥ 1.6 m
Max capacity (single fiber)	192 cores
Working temperature	–40℃ ~ +70℃
Lateral pressure	≥ 2000 N / 10 cm
Shock resistance	≥ 20 N·m

Operating Points

Prepare Cable:
- Select the appropriate cable.
- Strip and remove outer and inner protective layers and relax tubes.
- Clean and remove jelly filling.
- Reserve 1.1–1.6 m of fiber and 30–50 mm of steel core.
Secure Cable:
- Use cable clamps to fix the cable and core columns.
- For diameters < 10 mm, wrap the fixing area with self-adhesive rubber tape until the diameter reaches 12 mm.
Splice Preparation:
- Guide the fiber into the splice tray.
- Place heat shrink and hot-melt tubes on fiber pairs.
- After splicing, position the protective tubes and secure with stainless or quartz core columns.
- Heat the protective tubes to fuse them with the fiber.
- Snap the protective connector into the cable pathway (each tray supports up to 24 cores).
Organize Fibers:
- Distribute remaining fibers evenly in the splice tray.
- Secure fibers with nylon ties.
- Typically arrange splice trays from bottom to top.
- Place and secure the cover atop the splice tray post-splicing.
Ground Wire Installation:
- Install the ground wire per engineering specifications.
Seal the Closure:
- Wrap sealing tape around the entry ports.
- Insert sealing lines into grooves along the shell edge.
- Close the shell halves and tighten stainless steel bolts symmetrically.
Final Installation:
- Position and fix hangers based on laying requirements.
- Install the closure.
