GYFTC8A FRP CSM Aluminum Armored Self-Supporting Figure 8 Aerial Cable
  • GYFTC8A FRP CSM Aluminum Armored Self-Supporting Figure 8 Aerial Cable

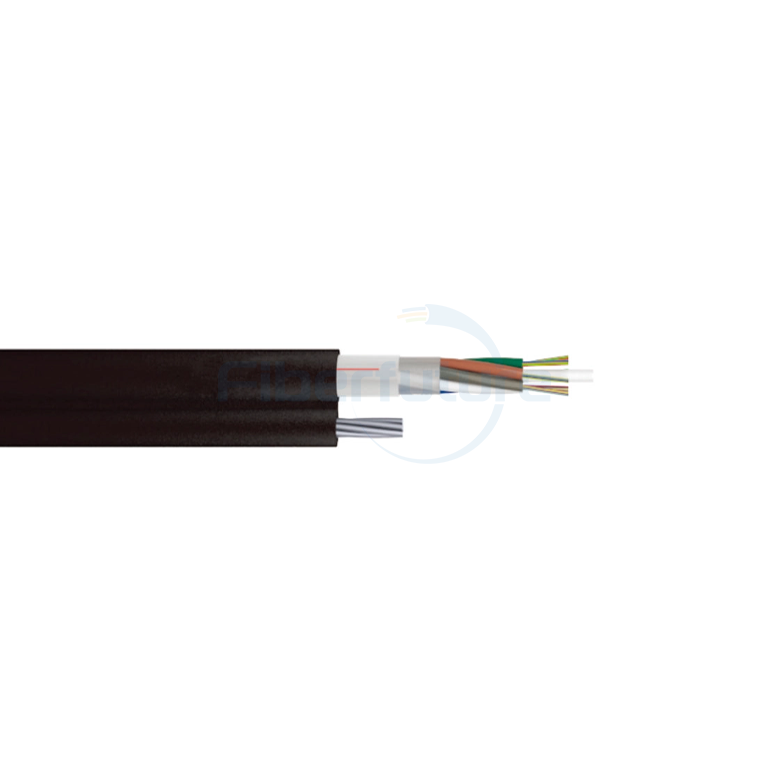

GYFTC8A FRP CSM Aluminum Armored Self-Supporting Figure 8 Aerial Cable

GYFTC8A optical fiber cable is designed for figure-8 self-supporting applications. It features FRP reinforcement and aluminum armor, providing excellent mechanical strength and corrosion resistance. The figure-8 design offers additional support for aerial installations, ensuring stable signal transmission. Ideal for telecommunications and data network construction.

APPLICATIONS
aerial direct-burriet uv-resistant
Fiber Count
GYFTC8A FRP CSM Aluminum Armored Self-Supporting Figure 8 Aerial Cable
GYFTC8A FRP CSM Aluminum Armored Self-Supporting Figure 8 Aerial Cable
Send Email
Whatsapp

Applications

Self-supporting aerial installation

Optical Characteristics

  •

    G.652.D

    G.655

    50/125um

    62.5/125um

    Attenuation

    @850nm

    -

    -

    ≤3.0 dB/km

    ≤3.0 dB/km

    @1300nm

    -

    -

    ≤1.0 dB/km

    ≤1.0 dB/km

    @1310nm

    ≤0.36 dB/km

    ≤0.40 dB/km

    -

    -

    @1550nm

    ≤0.22 dB/km

    ≤0.23 dB/km

    -

    -

    Bandwidth

    @850nm

    -

    -

    ≥500 MHz · km

    ≥200 MHz · km

    @1300nm

    -

    -

    ≥1000 MHz · km

    ≥600 MHz · km

    Polarization Mode Dispersion

    lndividual Fibre

    ≤0.20 ps/√km

    ≤0.20 ps/√km

    -

    -

    Design Link Value
    (M=20,Q=0.01%)

    ≤0.1 ps/√km

    ≤0.1 ps/√km

    -

    -

Technical Parameters

Item

Contents

Value

Fiber Count

24

48

72

96

144

288

Loose Tube

No.of Tubes*Fibres per Tube

4*6

4*12

6*12

8*12

12*12

24*12

Outer Diameter (mm)

1.9

2.4

2.4

2.4

2.4

2.4

Central Strength
Member

Material

FRP/Steel

Diameter (mm)

2.0

2.0

2.6

2.6

2.6

2.6

Coated CSM Diameter (mm)

-

-

-

4.2

7.4

4.8

Water Blocking Material

Material

Cable Filling Compound

Moisture-proof

Material

Laminated Aluminum Tape

Messenger Wire

Structure and diameter (mm)

7*1.6

Sheath

Thickness (mm)

Nominal: 1.8

Cable Diameter (mm) Approx.

10.2/*21.2mm

10.6/*21.6mm

11.4/*22.4mm

13.6/*24.6mm

16.4/*27.4mm

19.5/*30.5mm

Cable Weight (kg/km) Approx.

220±10

250±10

270±10

310±10

360±10

450±10

Operating Temperature Range(℃)

-40~+70

Tensile Strength Short/ Long Term(N)

8000/2700

Crush Resistanoe Short/Long Term (N/100mm)

1000/300

The colour arrangement of fibre and tube is specified in the colour identification table.

Other structure and fibre count are also available according to customer requirements.
