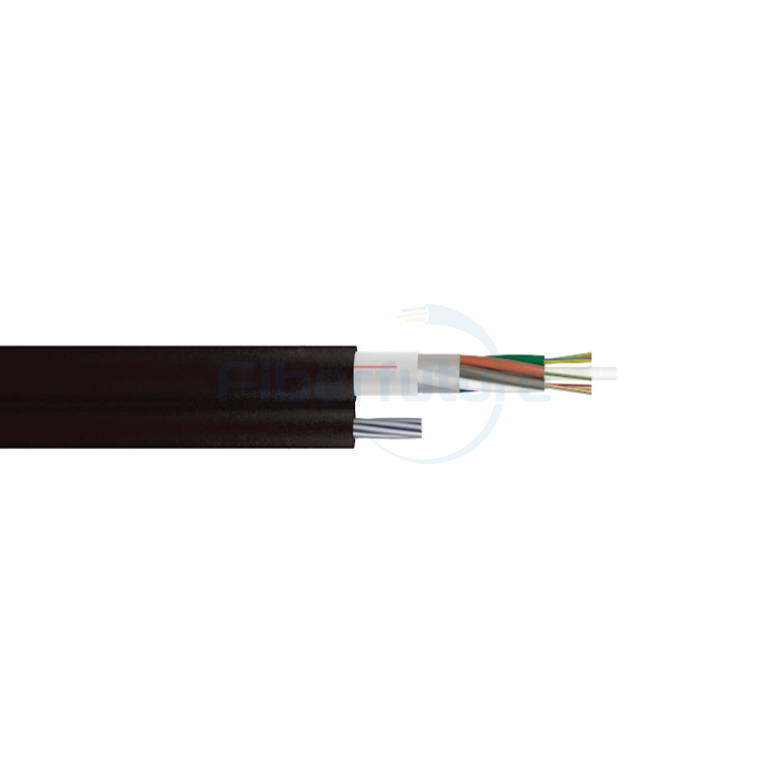

GYFC8Y Semi Dry Core FRP CSM Aerial Self Supporting Figure-8 Optical Fiber Cable

GYFC8Y FRP CSM cable is designed for aerial installations, featuring a figure-8 shape for self-support. It integrates optical fibers with strength members and a messenger wire for robustness. Suitable for long-distance communication, it offers excellent mechanical protection and environmental resistance, ensuring reliable data transmission in challenging outdoor conditions.

APPLICATIONS

Fiber Count

GYFC8Y Semi Dry Core FRP CSM Aerial Self Supporting Figure-8 Optical Fiber Cable

Send Email

Features

High tensile strength
Self-supporting design
Semi-dry core for easy installation and splicing

Applications

Ideal for aerial installations, providing reliable long-distance communication.

Optical Characteristics

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

≤3.0 dB/km

@1300nm

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23 dB/km

Bandwidth

@850nm

≥500 MHz · km

≥200 MHz · km

@1300nm

≥1000 MHz · km

≥600 MHz · km

Polarization Mode Dispersion

lndividual Fibre

≤0.20 ps/√km

Design Link Value (M=20,Q=0.01%)

≤0.1 ps/√km

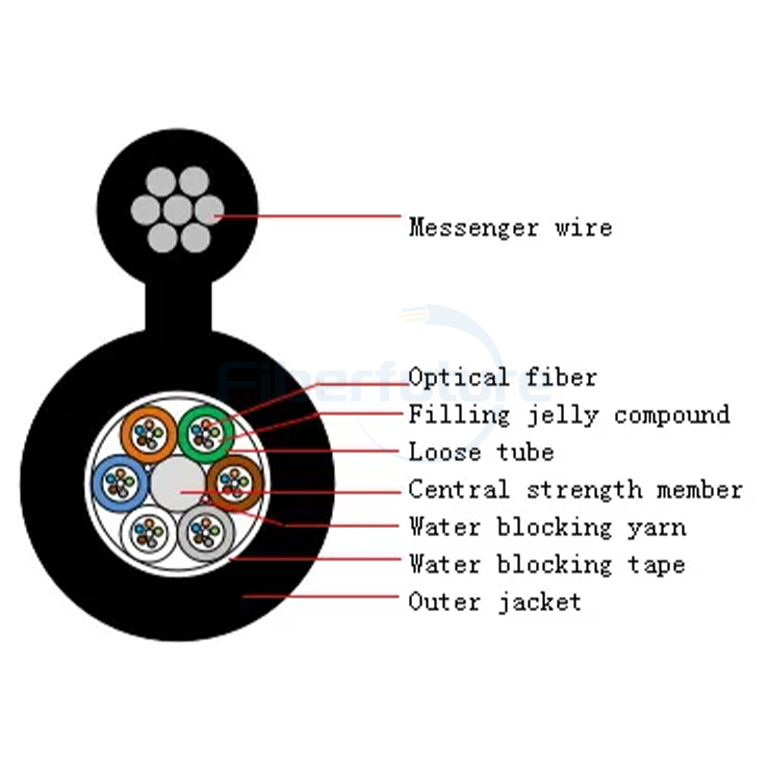

Technical Parameters

Item	Contents	Value
Item	Fibre Count	24	48	72	96	144	288
Loose tube	No. of Tubes*Fibres per Tube	4*6	4*12	6*12	8*12	12*12	24*12
Loose tube	Outer Diameter (mm)	1.9	2.4
Central Strength Member	Material	FRP
	Diameter (mm)	2.0	2.0	2.6	2.6	2.6	2.6
	Coated CSM Diameter (mm)	-	-	-	4.2	7.4	4.8
Water Blocking Material	Material	Water Blocking Tape
Messenger Wire		7*1.6
Sheath	Thickness (mm)	Nominal: 1.8
Cable Diameter (mm) Approx		10.0*21.0	10.8*21.8	11.6*22.6	13.2*24.2	16.4*27.4	19.2*30.2
Cable Weight (kg/km) Approx.		200	245	265	290	340	425
Operating Temperature Range (°C)		-40~+70
Tensile Strength Short/Long Term(N)		8000/2700
Crush Resistance Short/Long Term (N/100mm)		1000/300

Colour arrangement follows the standard color identification table.
Custom structures and fiber counts available upon request.

Mechanical & Environmental Performances

Items	Test Standard	Test Standard	Requirements
Tension	IEC 60794-1-2-E1	See Technical Data	Additional attenuation: ≤0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical Data	Additional attenuation: ≤0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm, one in 3 different places	Additional attenuation: ≤0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation: ≤0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m, 24 hours	No Water Leakage
Temperature Cycling	IEC 60794-1-2-F1	-40℃~+70℃	Attenuation Change: ≤0.05dB/km after test

* All optical measurements at 1550nm.
