GYDXTW Conventional cable

APPLICATIONS

Fiber Count
Fiber Type

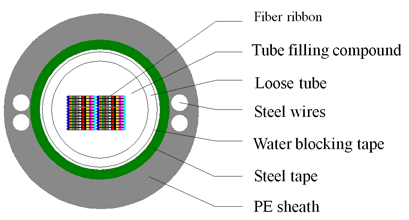

Structure

Optical fiber ribbon with 4, 6, 8, 12, 24 fibers and other low attenuation and dispersion, special ribbon structure
Loose tube, the optical fiber ribbon with 12 fibers or more is enveloped by two or more optical fiber ribbon
Filling compound
Corrugated steel tape coated with PE outer sheath
Two or four reinforcing steel wires placed in PE sheath

Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Optical fiber ribbon have accurate geometric dimension.
Optical fiber ribbon with 12 fibers or more can be spliced by two special fiber ribbons or more.
Loose tube has good flexibility, easy to be bent and cut.
High density, easy to splice, low cost of installation.
Corrugated steel tape armoring and four steel wires structure enhance the tensile resistance.
Small outer diameter, lightness and compact structure

Suitable for LAN and Access Network

By duct and aerial

Fiber count(core)	24-36	48-60	72	84-96	108-120	132-144	156-168	180-192	204-216	240-288	300-432
Outer diameter（mm）	11.8	13.5	14.4	15.0	15.5	16.0	16.5	17.5	18.5	21.0	24.0
Cable weight（kg/km）	120	160	180	196	205	218	235	265	310	400	520
Minimum tensile strength（N）	Short-term： 0.8G or 3000 Long-term： 1000
Minimum crushing（N/100mm）	Short-term： 1000 Long-term： 300
Bending radius	Static：20 times of diameter Dynamic：30 times of diameter
Standard length for delivery（km）	1～4
Temperature range（⁰C）	－40～＋60
