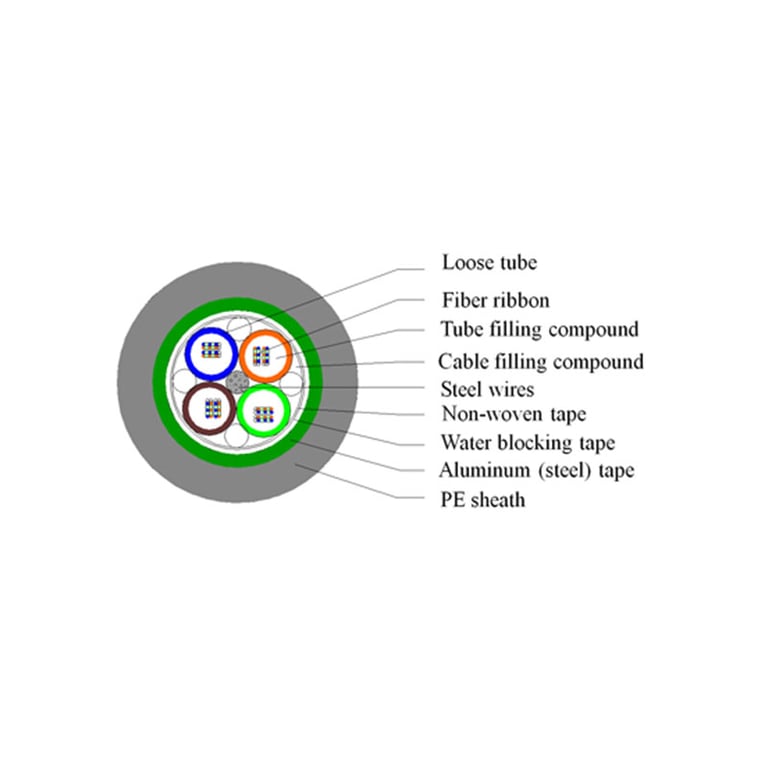

GYDTA(S) Conventional cable
| Fiber Count | |
|---|---|
| Fiber Type |
Suitable for LAN and Access Network
By duct and aerial
| iber count(core) | 6-96 （6 fibers per ribbon） |
24-288 （8 or 12 fibers per ribbon） |
720 （12 fibers per ribbon） |
960 （12 fibers per ribbon） |
1440 （12 fibers per ribbon） |
| Outer diameter（mm） | 16.3 | 19.4 | 29.0 | 33.7 | 35.0 |
| Cable weight（kg/km） | 196(233) | 285(331) | 700(770) | 915(990) | 998(1135) |
| Minimum tensile strength（N） | Short-term： 1500~3000 Long-term： 600 |
||||
| Minimum crushing（N/100mm） | Short-term： 1500~3000 Long-term： 600 |
||||
| Bending radius | Static：15 times of diameter Dynamic：20 times of diameter | ||||
| Standard length for delivery（km） | 2～4 | ||||
| Temperature range（0C） | －40～＋60 | ||||
