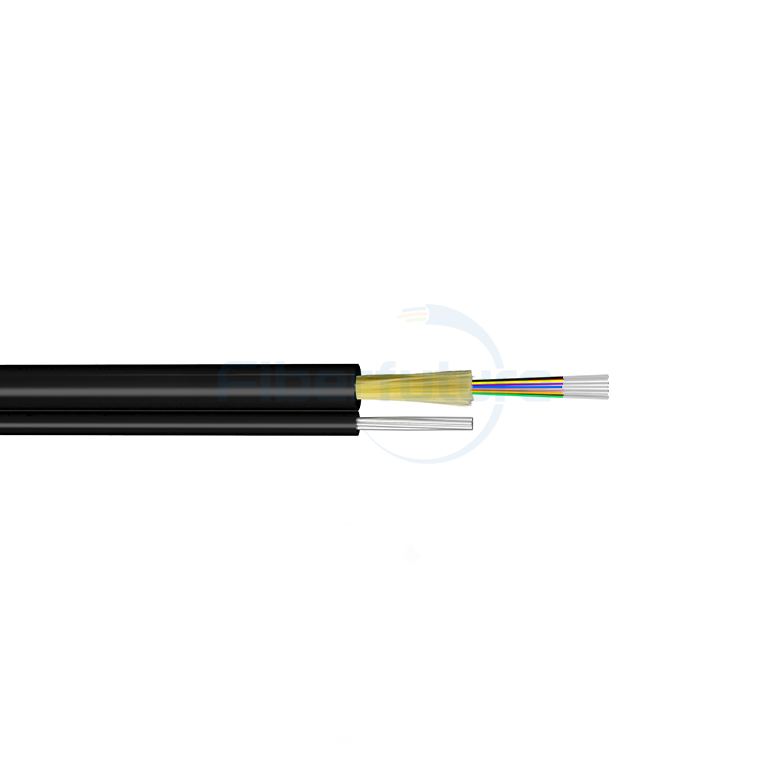

GJYC8H Self-Supporting Tight Buffer Fig 8 Drop Cable

GJYC8H fig 8 tight buffer drop cable is designed for overhead installation. The 8-figure tightening buffer design supports up to 12 fiber cores to ensure stability and durability. Suitable for all environmental conditions.

APPLICATIONS

Fiber Count

Send Email

Features

UV and flame retardant performance is good

Compact, soft, flexible and easy to install

8-figure self-supporting design

Applications

Access network or from outdoor to indoor in customer premises
Building distribution systems, especially for indoor/outdoor aerial direct connections

Optical Characteristics

Fiber Type	Attenuation		Overfilled Launch Bandwidth	Effective Modal Bandwidth	10Gb/s Ethernet Link Length	Min Bending Radius
Fiber Type	Attenuation		Overfilled Launch Bandwidth	Effective Modal Bandwidth	10Gb/s Ethernet Link Length
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5

Technical Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
			Long Term	Short Term	Long Term	Short Term
1~4	6.0×3.0	27	300	800	500	1000
>4	Available upon customer’s request

Figure 8 Cable Factory & Equipment

Figure 8 Fiber Optic Cable Aerial Stranded GYFTC8S

Working Condition

Item	Standard	Parameters
Operation Temperature	IEC 60794-1-2 F1	-20℃～+60℃
Water Penetration	IEC 60794-1-2-F5	Water level: 1m, sample: 3m, After 24h, no water ingress.

Drum

Cable Type	Drum
	Height (mm)	Width (mm)	Inner diameter (mm)	Length (km)	Drum Type
GYFTC8A53-4B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-6B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-8B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-12B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-24B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-36B1	1150	760	450	2	Iron Wood Tray
GYFTC8A53-48B1	1200	760	500	2	Iron Wood Tray
GYFTC8A53-72B1	1250	760	500	2	Iron Wood Tray
GYFTC8A53-96B1	1350	760	500	2	Iron Wood Tray
