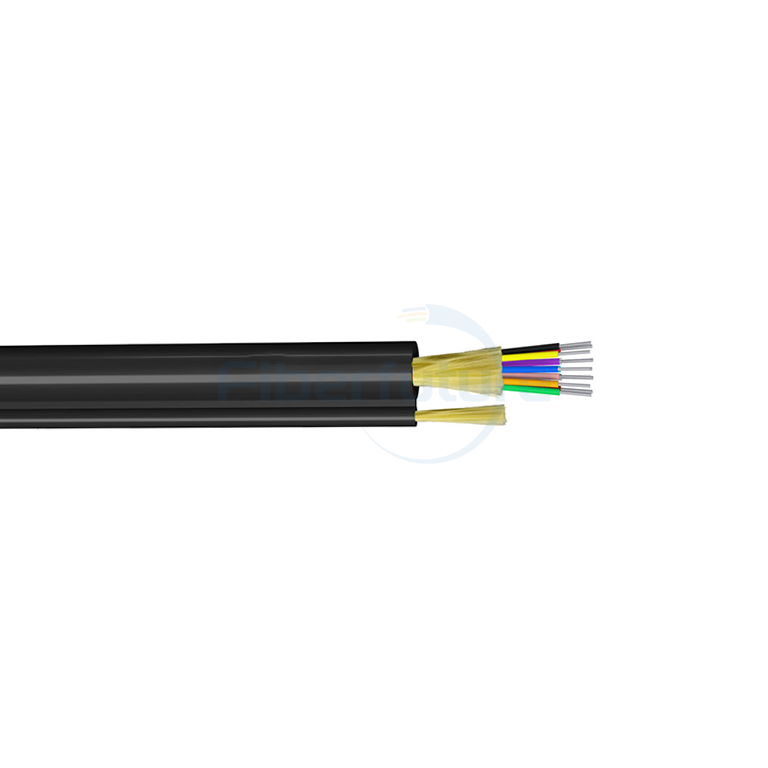

GJFJTC8Y Aramid Yarn Figure 8 Fiber Cable

GJFJTC8Y figure 8 cable features aramid yarns evenly wrapped around ф900μm or ф600μm fibers, which are twisted together to form a circular core. Steel wires are then assembled into an 8-shaped structure and covered with a PE sheath.

APPLICATIONS

Fiber Count

Send Email

Features

Compact, lightweight design for easy handling.
High tensile strength from aramid yarn ensures self-supporting capability and lowers installation costs.
Excellent mechanical and temperature performance.

Figure 8 Cable Factory & Equipment

Figure 8 Fiber Optic Cable Aerial Stranded GYFTC8S

Standards

Standard YD/T11155-2011, YDT 1770-2008, IEC794 etc.

Optical Characteristics

G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth (Class A)	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJTC8Y	2	3.5×5.5	19	200/400	100/200	30D/15D
GJFJTC8Y	4	4.0×6.0	26	200/400	100/200	30D/15D
GJFJTC8Y	6	5.0×7.0	30	200/400	100/200	30D/15D
GJFJTC8Y	8	6.0×9.0	32	200/400	100/200	30D/15D
GJFJTC8Y	12	6.5×9.5	40	200/400	100/200	30D/15D
