G657A2 OS2 DX 7.0mm ODVA (LC)-ODVA (LC) Patch Cord

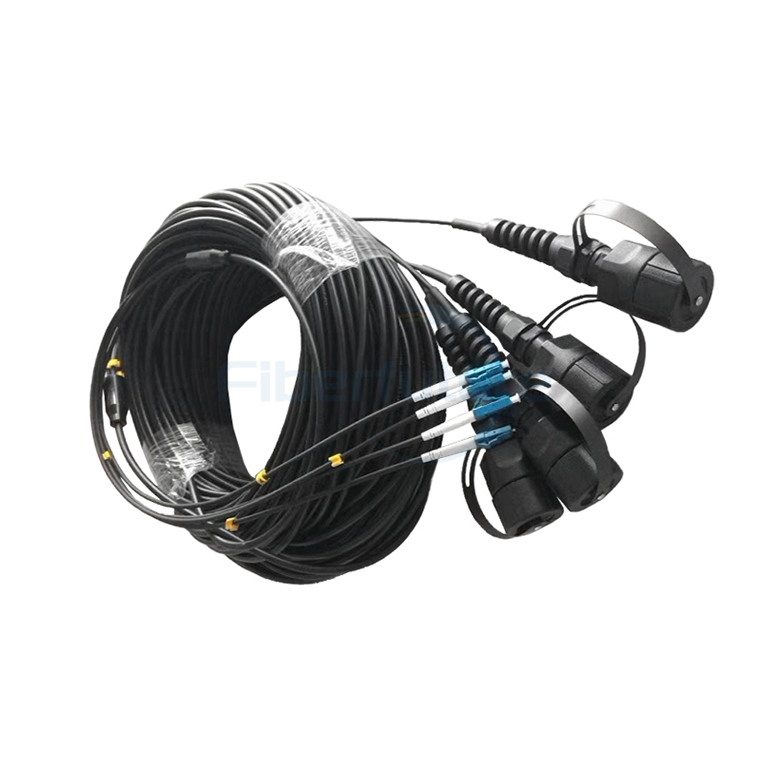

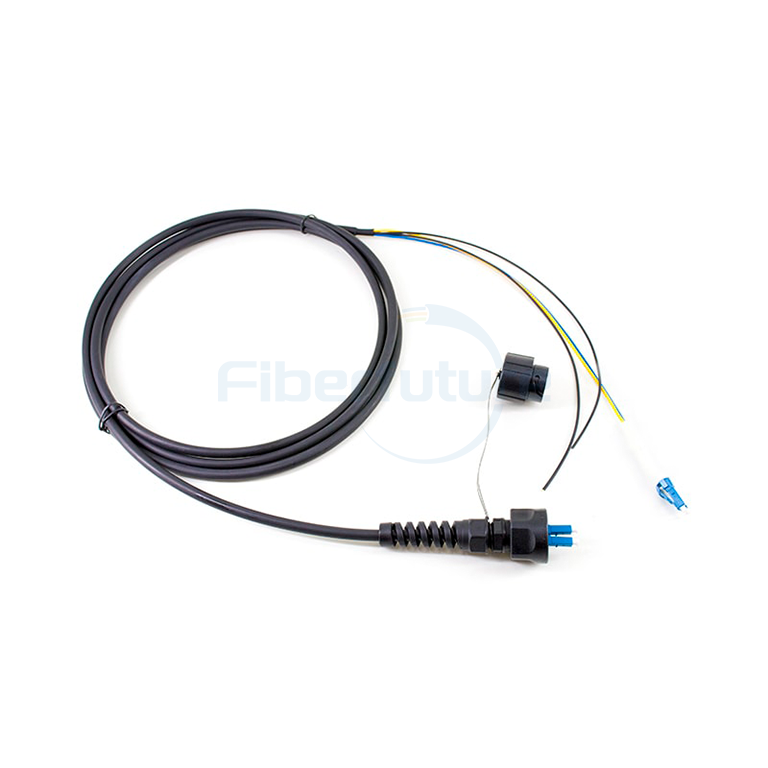

Ruggedized G657A2 OS2 DX 7.0mm ODVA (LC)-ODVA (LC) Patch Cord

FIBERFUTURE ODVA (LC)-ODVA (LC) G657A2 OS2 DX 7.0mm patch cord is a high-quality, durable connection solution designed for data center and telecom applications. Featuring G657A2 bend-insensitive fiber, it ensures reliable performance with low attenuation, and its jacket provides excellent protection.

Send Email

Features

Water-Resistant LC Connectors: Provide protection against contamination and moisture, ensuring mechanical stability, temperature resistance, and vibration immunity.
OFNR Breakout Cables: Rated for outdoor use, enhancing durability and reliability.
IP67 Rating: Features a 1/6th turn bayonet coupling for quick, secure mating/unmating, even with gloves.
Compatibility: Compact LC connectors are compatible with industry-standard cables and interconnect products.
Versatile Connectivity: Options for single-mode, multi-mode, and APC requirements.
Pre-Terminated Jumpers: Available in standard lengths from 1m to 100m for both indoor and outdoor use; custom lengths are also offered.

Specifications

Parameter	Standard	Parameter	Standard
150N Pull Force	IEC61300-2-4	Temperature	40°C – +85°C
Vibration	GR3115 (3.26.3)	Cycles	50 Mating Cycles
Salt Mist	IEC 61300-2-26	Protection Class/Rating	IP67
Vibration	IEC 61300-2-1	Mechanical Retention	150N Cable Retention
Shock	IEC 61300-2-9	Interface	LC Interface
Impact	IEC 61300-2-12	Adapter Footprint	36mm x 36mm
Temperature/Humidity	IEC 61300-2-22	Duplex LC Interconnect	MM or SM
Locking Style	Bayonet Style	Tools	No Tools Required

Cable Parameters

Items		Specifications
Fiber Type		SM
Fiber Count		2
Tight-buffered Fiber	Dimension	850+50um
	Material	PVC or LSZH
	Color	Blue/Orange
Jacket	Dimension	7.0+/-0.2mm
	Material	LSZH
	Color	Black
