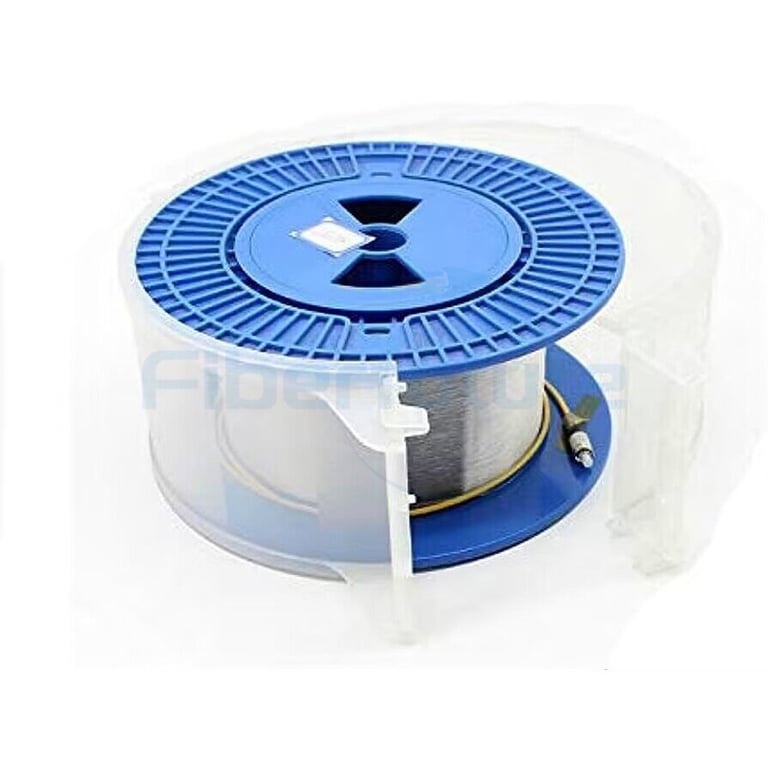

Standard single-mode fiber is also called non-dispersion-shifted single-mode fiber with extended wavelength band that is currently the most widely used optical fiber. The working wavelength can be from 1310nm and 1550nm.
The wider wavelength range is suitable for high-speed networks.
Accurate mode field diameter (MFD) characteristics to ensure low fusion loss and good compatibility.
The characteristics of a single-mode optical fibre and cable with zero-dispersion wavelength around 1310 nm, but which can also be used in the 1550 nm region.
|
FIBRE ATTRIBUTES |
DETAIL | VALUE |
Mode field diameter |
Wavelength Range of nominal values Tolerance |
1310 nm 8.6-9.2 μm ± 0.4 μm |
| Cladding Diameter | Nominal Tolerance |
125.0 μm ± 0.7 μm |
| Core concentricity error | Maximum | 0.6 μm |
| Cladding non-circularity | Maximum | 1.0% |
| Cable cut-off wavelength | Maximum | 1260 nm |
Macrobend loss |
Radius Number of turns Maximum at 1625 nm |
30 mm 100 0.10 dB |
| Proof stress | Minimum | 0.69 GPa |
| Chromatic dispersion | λ0min | 1300 nm |
coefficient |
λ0max S0min S0max |
1324 nm 0.073 ps/nm2·km 0.092 ps/nm2·km |
| Attenuation coefficient | Maximum from 1310 nm to 1625 nm Maximum at 1383 ± 3 nm hydrogen ageing after hydrogen ageing Maximum at 1530 – 1565 nm |
0.4 dB/km 0.4 dB/km 0.30 dB/km |
| PMD coefficient | M Q Maximum PMDQ |
20 cables 0.01% 0.2 ps/√km |
Wavelength(nm）
